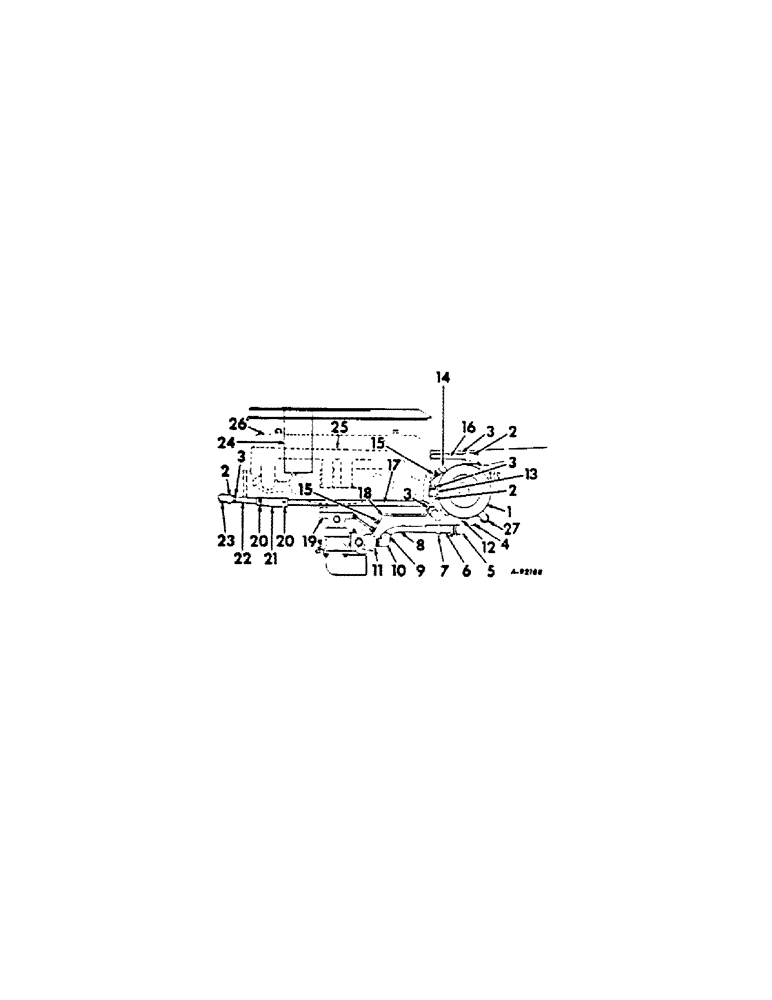

Запчасти Case IH C-153 (E-31[A]) - DIAGRAM FOR CARBURETOR, FUEL REGULATOR AND LINES, 504 TRACTORS WITH LP GAS ENGINES

1

NLS

NO LONGER SERVICED

REGULATOR ASSY, fuel, discontinued for service, for components see list of parts under details of fuel regulator, Farmall series

1шт.

1

NLS

NO LONGER SERVICED

REGULATOR ASSY, fuel, discontinued for service, for components see list of parts under details of fuel regulator, International series

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

3шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

2

40876D

ELBOW, 1/2 x 90 deg 90º x 3/8" NPT x 11/16"-16

4шт.

3

19987R1

NUT

11/16-16 hi-duty tube fitting

4шт.

4

375714R11

BRACKET ASSY, fuel regulator mounting

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

864456R1

NIPPLE, LUBE

ELBOW, fuel line hose, regulator end

1шт.

6

380451R1

HOSE, fuel line, Serial Range: regulator-carburetor

1шт.

7

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, fuel line hose

2шт.

8

380449R11

PIPE W/NUT, fuel

1шт.

9

222-507

TUBE NUT,7/8"-18

NUT, coupling, 5/8

1шт.

10

56445D

ELBOW,90 Degree x 1/2" NPT x 7/8"-18

5/8 x 90 deg

1шт.

11

380459R1

BUSHING, reducing, carburetor end

1шт.

12

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING, reducing, regulator end

1шт.

13

380452R1

ELBOW

regulator to balance line

1шт.

14

32468H

ELBOW,90 Degree x 1/8" NPT x 3/8"-24

regulator to carburetor idle line, 3/16 x 90 deg

1шт.

15

19983R1

NUT, coupling, 3/16

2шт.

16

375720R11

PIPE W/NUTS, regulator to cylinder water

1шт.

17

372276R11

PIPE W/NUT, water pump to regulator end

1шт.

18

377644R11

PIPE W/NUTS ASSY, idle

1шт.

19

CARBURETOR ASSY, for components see list of parts under details of carburetor

1шт.

103026

NUT,3/8"-24, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

251227R91

CLAMP

water line hose

2шт.

21

357487R1

HOSE, water line

1шт.

22

375721R11

PIPE W/NUT, water pump to regulator, water pump end

1шт.

23

444002

ADAPTER,3/8"-18 Fem NPTF x 3/8"-18 NPTF Male

water pump pipe, 3/8

1шт.

24

375776R1

SUPPORT, fuel tank front LH

1шт.

25

MANIFOLD, Serial Range: refer-manifold

1шт.

26

CRANKCASE ASSY, Serial Range: refer-crankcase

1шт.

27

109563R1

ELBOW

90 deg

1шт.
