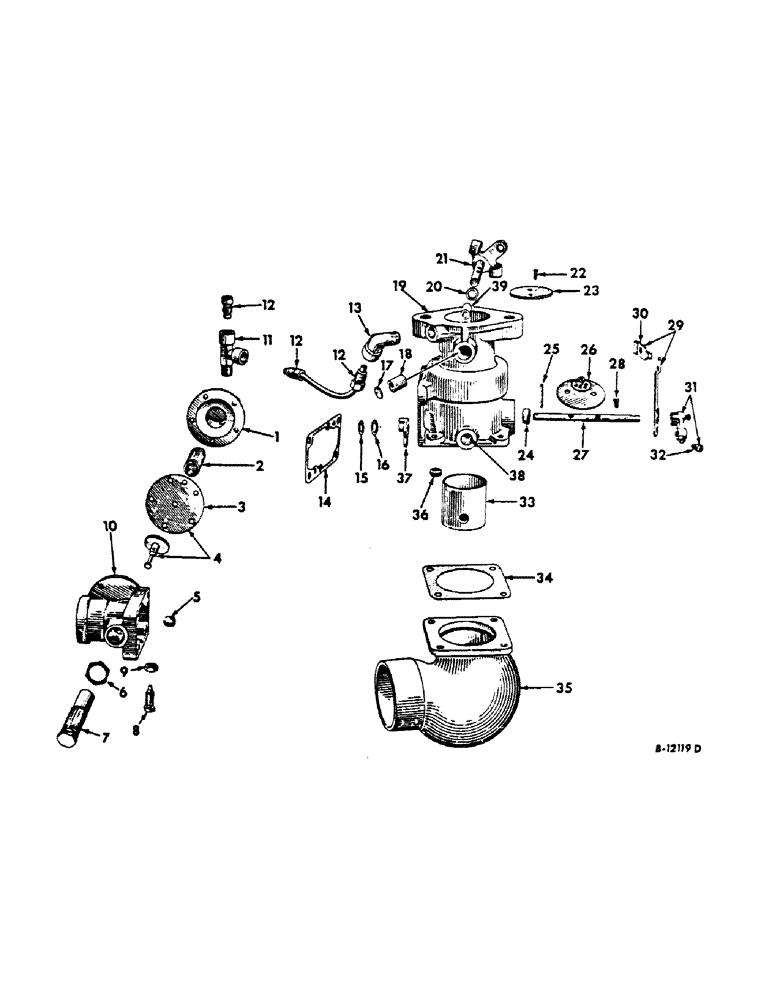

Запчасти Case IH C-153 (E-29) - CARBURETOR, 504 TRACTORS WITH LP GAS ENGINES

1

359623R1

COVER, economizer

1шт.

131974

SCREW,Sl Fil Hd, #8 - 32 x 5/8"

8-32 x 5/8 cd or zn-pltd slt-fil-hd mach

5шт.

131182

WASHER, LOCK

WASHER, 8-32 cd or zn-pltd light lock

5шт.

2

359622R1

SPRING, economizer

1шт.

3

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

4

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

5

373189R1

SCREW, economizer bleed-not included in ref. 10

1шт.

6

56430D

NUT, fuel adjusting screw lock

1шт.

7

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

8

359620R1

SCREW, starting adjusting

1шт.

9

113506R1

NUT, starting adjusting screw lock

1шт.

10

307977R1

BODY, gas inlet and economizer

1шт.

132203

SCREW, 12-24 x 7/8 slt-fil-hd mach Slotted Fil Hd, #12-24 x 7/8"

4шт.

131184

CONNECTING LINK

WASHER, no. 12 cd-or zn-pltd light lock

4шт.

11

19272R1

TEE, 1/8 x 90 deg two way

1шт.

12

19983R1

NUT, 3/16 hi-duty tube fitting

3шт.

13

32468H

ELBOW,90 Degree x 1/8" NPT x 3/8"-24

1/8 x 90 deg

1шт.

14

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

15

37183D

WASHER, valve lever

1шт.

16

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

17

47856H

PLUG, 1/2 expansion

1шт.

18

37024D

BUSHING, throttle shaft bearing

2шт.

19

NLS

NO LONGER SERVICED

BODY AND THROTTLE ASSY, partial, discontinued for service

1шт.

20

64837D

SEAL, throttle shaft oil

1шт.

21

382409R91

SHAFT AND STOP ASSY, throttle lever

1шт.

22

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

23

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

24

58899D

WASHER, dust

1шт.

25

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

26

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

27

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

28

56365D

SCREW, choke shaft

2шт.

29

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

443799

SCREW, 8-32 x 1/4 cd or zn-pltd slt binding hd mach

2шт.

30

56389D

CLAMP, choke tube

1шт.

120611

NUT,#10 - 32

10-32 hex.

1шт.

132105

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

10-32 x 3/8 cd or zn-pltd slt-fil-hd mach

1шт.

31

275583R91

LEVER ASSEMBLY, choke

1шт.

32

36756D

SCREW, choke lever set

1шт.

33

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

132198

SCREW, 12-24 x 3/4 cd or zn-pltd slt-fil-hd mach

1шт.

131184

CONNECTING LINK

WASHER, no. 12 cd or zn-pltd light lock

1шт.

34

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

35

277193R1

ELBOW, air intake

1шт.

239760

FOOT BOARD

12-24 x 5/8 cd or zn-pltd slt-fil-hd mach

4шт.

131184

CONNECTING LINK

WASHER, no. 12 cd or zn-pltd light lock

4шт.

36

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

37

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

38

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1/8 slt-hdls pipe

1шт.

39

(Not used in this appliction)

1шт.

530681R1

GASKET

carburetor, not included in carburetor assembly, will work for 31336D

1шт.
