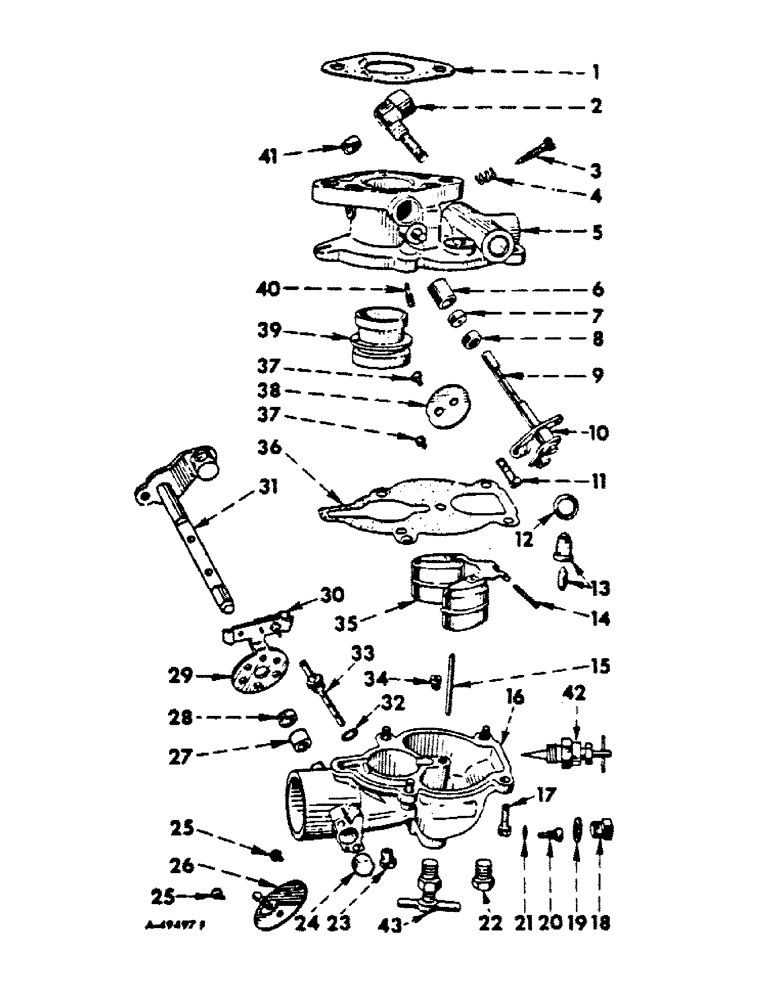

Запчасти Case IH C-153 (E-25) - CARBURETOR

405530R91

CARBURETOR

ASSY, Zenith, 105, 203 combines 210, 230, 275, 375 windrowers and 225 hayswathers, optional w/carburetor assembly, 396738R92

1шт.

1

530681R1

GASKET

carburetor, will work for 31336D

1шт.

Not Included in Carburetor Assembly.

1шт.

2

53796D

ELBOW

AND STRAINER ASSEMBLY, carburetor

1шт.

3

80181R1

NEEDLE, idle adjusting

1шт.

4

30594D

SPRING, idle adjusting needle valve

1шт.

5

381018R92

BODY

ASSEMBLY, throttle

1шт.

Consists of (1) body, (1) bracket (NSS), (1) elbow 53796D, (1) lever and shaft 381020R91, (1) needle 80181R1, (1) plate 381022R1, (1) plug 99259H, (1) plug 118831, (1) retainer 381019R1, (2) screw 454415, (1) seal 368358R2, (1) spacer 54062D, (1) spring 30594D

1шт.

103026

NUT,3/8"-24, G5

See note 3/8"-24, G5

2шт.

12215D

STUD

CARBURETOR STUD

2шт.

Not Included in Carburetor Assembly.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Not Included in Carburetor Assembly.

1шт.

6

(Not used in this application)

1шт.

7

368358R2

RUBBER SEAL

throttle shaft

1шт.

8

381019R1

RETAINER

throttle shaft seal

1шт.

9

381020R91

LEVER

AND SHAFT ASSEMBLY W/SCREW AND PIN THROTTLE

1шт.

10

54062D

WASHER

throttle lever

1шт.

135645H

PIN, taper

1шт.

11

19509R1

SCREW, throttle stop

1шт.

12

12433D

WASHER

fuel valve

1шт.

13

405531R1

VALVE

AND SEAT ASSEMBLY, fuel

1шт.

14

381030R1

AXLE

float

1шт.

15

(Not used in this application)

1шт.

16

381023R92

BOWL

ASSEMBLY, fuel, consists of (1) bowl (NSS), (1) plug 377798R1, (1) retainer 42191D, (1) washer 21210D

1шт.

17

19563R91

SCREW ASSEMBLY, Serial Range: bowl-body

4шт.

18

31860D

PLUG

lower-main jet passage

1шт.

19

12433D

WASHER

main passage fibre

1шт.

20

93331H

JET, main

1шт.

21

12435D

SEALING WASHER

WASHER, main jet

1шт.

22

FOR444613

PLUG

1/8-27 C-Z auto hex-hd pipe drain

1шт.

23

384327R91

FILTER

ASSEMBLY, drip plug

1шт.

24

377798R1

PLUG

choke shaft hole

1шт.

25

454415

SCREW ASSEMBLY, choke valve plate

2шт.

26

384726R91

SHUTTER ASSEMBLY, air

1шт.

27

21210D

WASHER

choke shaft packing

1шт.

28

42191D

RETAINER

choke shaft packing

1шт.

29

369885R91

BRACKET ASSEMBLY, choke valve w/clamp, screw and nut

1шт.

131958

ELBOW

SCREW, no. 8 x 5/16 cd-pltd slt-fil-hd mach

2шт.

30

369886R1

CLAMP

choke valve braket

1шт.

19404R1

NUT, 8-36 znd slt hex-hd mach

1шт.

31

381029R91

SHUTTER

LEVER AND SHAFT W/SCREW ASSEMBLY CHOKE VALVE

1шт.

19451R1

SCREW, 8-36 x 3/8 cd-slt-hex-hd mach

1шт.

32

12430D

WASHER

discharge jet fibre

1шт.

33

381034R91

JET, main discharge

1шт.

34

55536D

JET, well vent

1шт.

35

381027R1

FLOAT

ASSEMBLY

1шт.

36

381032R1

GASKET

, Serial Range: bowl-body

1шт.

37

454415

SCREW ASSEMBLY, throttle valve plate

2шт.

38

381022R1

VALVE

PLATE, throttle

1шт.

39

381024R1

VENTURI

1шт.

40

274886R1

JET

idling

1шт.

41

99259H

PLUG

throttle shaft hole

1шт.

42

(Not used in this application)

1шт.

Ref no. 42 (per the 404 book) is 53786D

1шт.

43

(Not used in this application)

1шт.

381031R91

KIT

GASKET SET, carburetor, consists of (1) gasket 381032R1, (1) washer 12433D, (1) washer 12435D, (1) washer 12430D

1шт.

393168R94

VALVE

fuel shut-off solenoid w/gasket

1шт.

Not Included in Carburetor Assembly.

1шт.

527840R1

GASKET

fuel shut-off solenoid

1шт.
