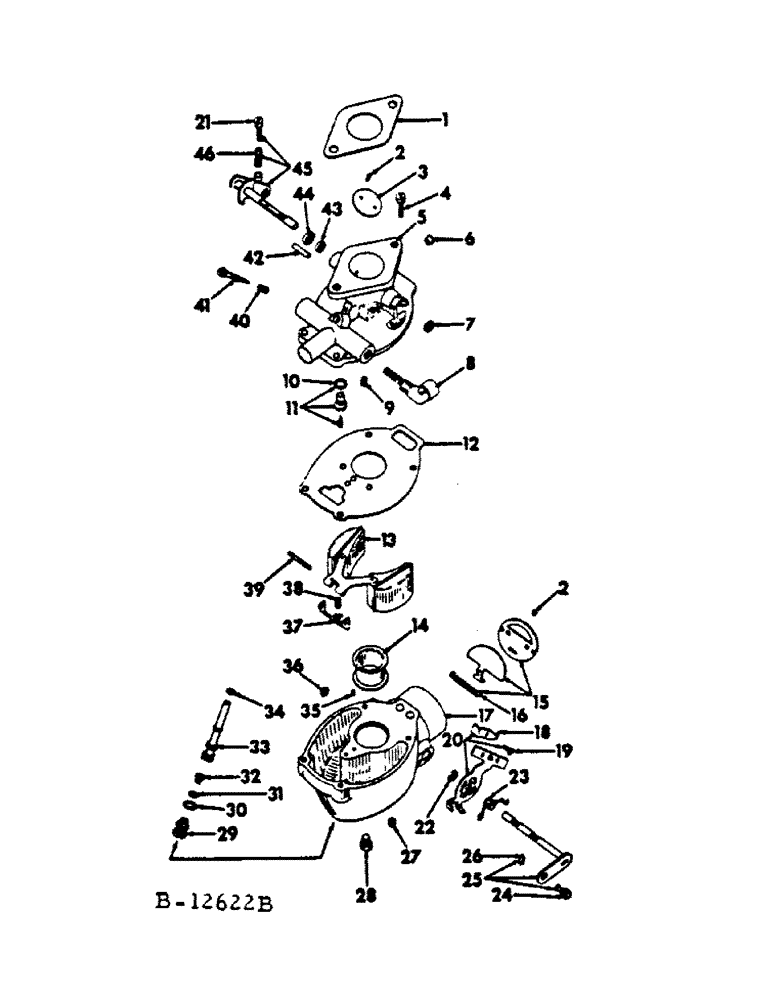

Запчасти Case IH C-153 (E-23) - CARBURETOR

381945R93

CARBURETOR

ASSY, 504, 2504 tractors w/gas engines, 3514 tractors and 93 combines

1шт.

396738R92

CARBURETOR

ASSY, marvel shebler, 105, 203 combines, 210, 230, 275, 375 windrowers and 225 hayswathers, optional w/carburetor assembly, 405530R91

1шт.

1

530681R1

GASKET

carburetor, will work for 31336D

1шт.

Not Included in Carburetor Assembly.

1шт.

2

B51702

SCREW,#6 - 32 x 1/4"

choke and throttle plate

4шт.

3

381948R1

VALVE

PLATE, throttle, 15 deg

1шт.

4

19542R91

SCREW, throttle, Serial Range: bowl-body

4шт.

5

381946R91

BODY ASSY, throttle, consists of (1) body (NSS), (1) cup 381949R1, (1) packing 381951R1, (1) pin 17145R1, (1) plate 381948R1, (1) plug 373400R1, (1) retainer 381950R1, (2) screw 454579, (1) shaft 381947R91

1шт.

103026

NUT,3/8"-24, G5

2шт.

Not Included in Carburetor Assembly.

1шт.

12215D

STUD

carburetor

2шт.

Not Included in Carburetor Assembly.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Not Included in Carburetor Assembly.

1шт.

6

373400R1

PLUG, idle drilling

1шт.

7

381949R1

CUP

throttle shaft

1шт.

8

69938D

ELBOW

AND SCREEN ASSY, gas inlet

1шт.

9

69929D

JET, idling

1шт.

10

69950D

GASKET

float valve seat

1шт.

11

381969R91

VALVE

SEAT AND GASKET ASSY, float valve, used w/carburetor assembly, 381945R93

1шт.

11

382499R91

JET

SEAT AND GASKET ASSY, float valve, used w/carburetor assembly, 396738R92

1шт.

12

381954R1

GASKET

throttle, Serial Range: body-bowl

1шт.

13

381962R1

FLOAT

ASSY

1шт.

13

381962R1GV

FLOAT

Value, Float

1шт.

14

381966R1

VENTURI

7/8 inch

14шт.

15

381960R91

VALVE

PLATE ASSY, choke

1шт.

16

381961R1

SPRING

choke plate

1шт.

17

381957R91

BOWL ASSY, fuel, consists of (1) bowl (NSS), (1) cup 373403R1, (1) vent 373385R1, (1) strainer 373387R1

1шт.

18

373373R1

CLIP

starting shutter bracket

1шт.

19

19548R91

SCREW, choice valve bracket clip, used w/carburetor assembly, 381945R93

1шт.

19

20832R91

SCREW, 8-32 x 1/2 hex-hd slt, used w/carburetor assembly, 396738R92

1шт.

20

373372R91

BRACKET

AND CLIP ASSY, air shutter

1шт.

453666

SCREW, 8-32 x 3/8 slt-fil-hd mach

1шт.

21

131979

SCREW,Sl Fil Hd, #8 - 32 x 3/4"

throttle

1шт.

22

69924D

PACKING

air shutter shaft

1шт.

23

373369R1

SPRING

air shutter return

1шт.

24

373405R1

PIVOT

SWIVEL, air shutter shaft

1шт.

455956

SCREW, 8-32 x 5/16 slt-hex-hd mach

1шт.

25

381959R91

SHAFT AND LEVER ASSY, choke w/screw, swivel and spring

1шт.

26

373406R1

SPLIT PIN

SPRING, swivel retainer

1шт.

27

373387R1

FILTER

STRAINER, bowl

1шт.

28

FOR444613

PLUG

drain

1шт.

29

381970R1

PLUG

nozzle and power jet retainer, used w/carburetor assembly, 381945R93

1шт.

30

381955R1

GASKET

nozzle plug, lower, used w/carburetor assembly, 381945R93

1шт.

31

381956R1

GASKET

nozzle plug, upper, used w/carburetor assembly, 381945R93

1шт.

32

381968R1

JET

power, used w/carburetor assembly, 381945R93

1шт.

32

388587R1

JET

power, used w/carburetor assembly, 396738R92

1шт.

Not Included in Carburetor Assembly.

1шт.

33

381967R1

NOZZLE, main

1шт.

34

381953R1

GASKET

main nozzle

1шт.

35

373385R1

VENT, well

1шт.

36

373403R1

PLUG

CUP, air shutter shaft

1шт.

37

381965R1

SUPPORT

BRACKET, float spring support

1шт.

38

381964R1

SPRING

float support

1шт.

39

381963R1

AXLE

float

1шт.

40

69954D

SPRING

idle adjusting screw

1шт.

41

69923D

SCREW

idle adjusting

1шт.

42

17145R1

LOCK PIN,3/16" x 3/4", Slotted

PIN, , Throttle stop 3/16" x 3/4", Slotted

1шт.

43

381951R1

PACKING

throttle shaft

1шт.

44

381950R1

RETAINER, throttle shaft packing

1шт.

45

381947R91

SHAFT

AND LEVER ASSY, throttle

1шт.

46

69953D

SPRING

throttle stop screw

1шт.

381952R91

SET

GASKET SET, carburetor, consists of (1) gasket 69950D, (1) gasket 381953R1, (1) gasket 381954R1, (1) gasket 381955R1, (1) gasket 381956R1

1шт.

71358C91

PACKAGE

VALVE, fuel shut-off solenoid w/gasket

1шт.

107609C1

WASHER

GASKET, fuel shut-off solenoid, will work for 527842R1, used w/carburetor assembly, 396738R92

1шт.

Not Included in Carburetor Assembly.

1шт.

370535R1

CLIP

solenoid cable, used w/carburetor assembly, 396738R92

1шт.

400430R91

KIT

carburetor repair, used w/carburetor assembly, 396738R92, consists of ref. nos. 2, 7, 9, 10, 11, 12, 21, 22, 34, 39, 40, 41. 43 thru 46 and gasket package, 400429R91

1шт.

400429R91

KIT

PACKAGE, gasket, used w/carburetor assembly, 396738R92, consists of ref nos. 10, 12 and 34

1шт.
