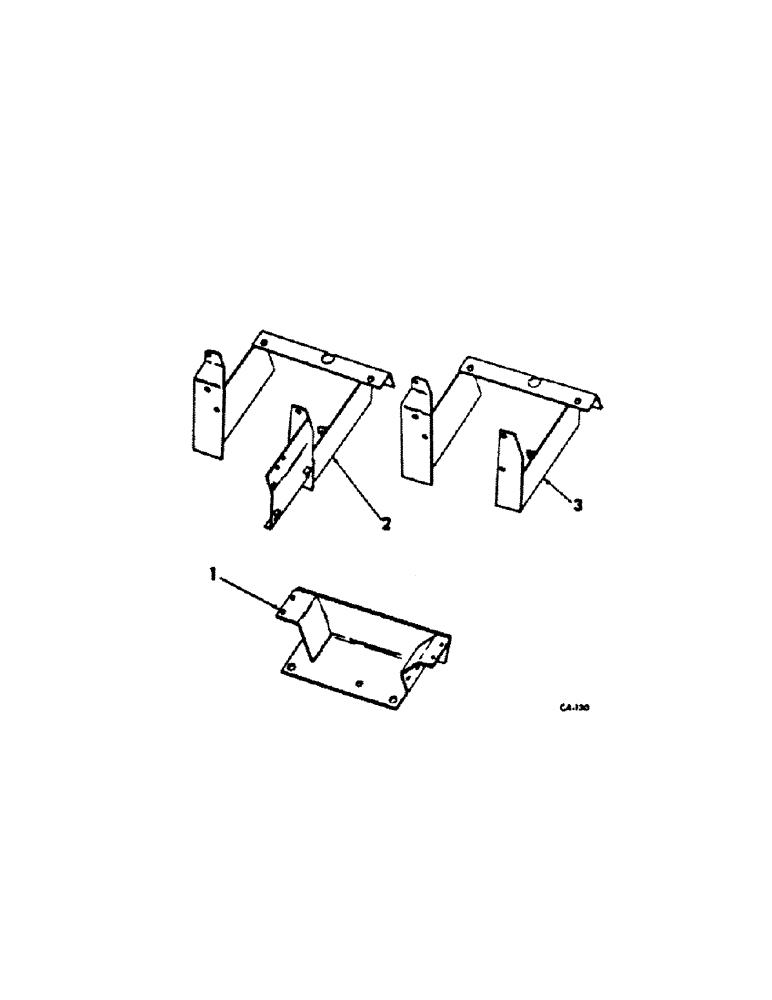

Запчасти Case IH C-153 (E-21[A]) - ENGINE REAR SUPPORT, 105 COMBINES

1

594020R91

BRACKET, engine support

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, 5/8-11 x 1-1/4 hex-hd

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

594011R91

SUPPORT, engine front, machines w/serial no., Serial Range: H-100-H-356

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, 5/8-11 x 1-1/4 hex-hd

2шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

2шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

5/8-11 x 2-1/2 hex-hd

2шт.

114819

NUT, 5/8-11 hex.

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

578274R1

WASHER

21/32 x 1 x 11 ga

2шт.

3

597438R1

SUPPORT, engine front, machines w/serial no. H-357 and above

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, 5/8-11 x 1-1/4 hex-hd

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

3шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

5/8-11 x 2-3/4 hex-hd

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

578274R1

WASHER

21/32 x 1 x 11 ga

2шт.

114819

NUT, 5/8-11 hex.

6шт.
