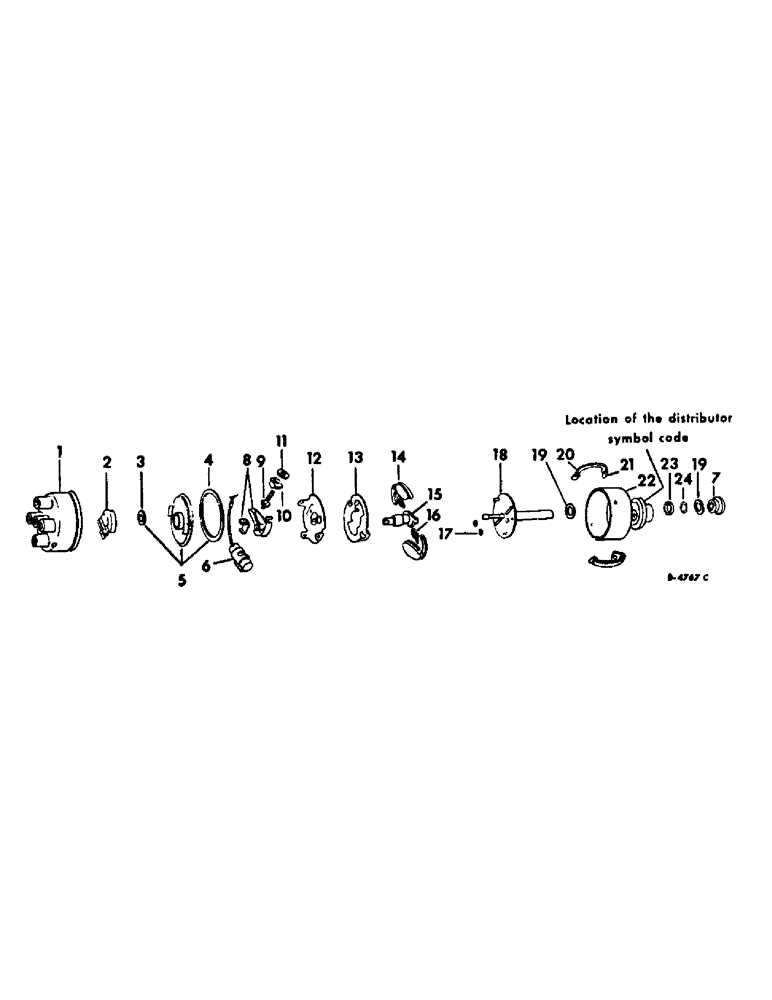

Запчасти Case IH C-153 (E-19) - BATTERY IGNITION DISTRIBUTOR

381687R91

DISTRIBUTOR

ASSY, AK symbol, 444, 2444, 2444 lo-boy tractors, 93 combines and 4000 fork lifts, see note

1шт.

The distributor symbol marking is the first letter of a code stamped on the distributor housing, refer to the illustration for the location.

1шт.

376555R92

DISTRIBUTOR

ASSY, AF symbol, 105, 203 combines, 210, 230, 275, 375 windrowers, 3514 tractors and 225 hayswathers, see note

1шт.

The distributor symbol marking is the first letter of a code stamped on the distributor housing, refer to the illustration for the location.

1шт.

1

351693R92

DISTRIBUTOR,Cap

CAP, distributor

1шт.

2

353896R91

ROTOR ASSY.

ROTOR, distributor

1шт.

3

353901R2

FELT SEAL

breaker cover felt

1шт.

4

384830R1

GASKET

breaker cover

1шт.

5

384831R91

COVER

ASSEMBLY, breaker

1шт.

5

384831R91GV

COVER

Value, Breaker Cover

1шт.

6

353903R92

CONDENSER

ASSY

1шт.

86982774

SCREW,Slotted Fil Hd, #8-32 x 3/16"

8-32 x 3/16 C-Z slt-fil-hd mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

7

353902R1

GEAR

distributor, 32 teeth

1шт.

354552R1

HARDWARE

PIN, distributor gear

1шт.

8

353172R91

BREAKER

POINT SET, distributor, used with distributor, used with distributor assembly, 381687R91

1шт.

8

372951R91

SCREW,POINTED

POINT SET, distributor, used with distributor assembly, 376555R92

1шт.

8

372951R91GV

SET

Value, Pointed Screw

1шт.

120622

NUT,#8-32

Breaker arm spring #8-32

1шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

8-32 x 3/16 C-Z slt-pan-hd mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, , Breaker arm spring #8

1шт.

21394D

WASHER

stationary point or breaker arm spring

2шт.

9

353907R1

STUD

SCREW, terminal

1шт.

120622

NUT,#8-32

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

21394D

WASHER

terminal

1шт.

10

353906R1

PLUG

INSULATOR, spring anchor terminal

1шт.

11

251538R1

WASHER

terminal insulating

1шт.

12

352277R11

PLATE

ASSY, breaker, used with distributor assembly, 381687R91

1шт.

12

372868R11

RETAINER

PLATE ASSY, breaker, used with distributor assembly, 376555R92

1шт.

132756

SCREW, 8-32 x 3/8 C-Z slt-rd-hd mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

13

352301R1

GUARD

governor weight

1шт.

131954

SCREW,Sl Fil Hd, #8 - 32 x 1/4"

8-32 x 1/4 C-Z slt-fil-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

14

353915R91

ARM

AND WEIGHT ASSEMBLY

2шт.

15

355724R91

PACKAGE

CAM W/FELT, 355460R1, used with distributor assembly, 376555R92

1шт.

355460R1

FELT SEAL

FELT, cam oil hole

1шт.

16

381691R91

PACKAGE

SET, governor spring, consists of two springs, used with distributor assembly, 381687R91

1шт.

16

376556R91

PACKAGE

SET, governor spring, used with distributor assembly, 376555R92

1шт.

17

352293R1

SHIM

SPACER, weight arm

4шт.

18

381688R91

SHAFT

ASSEMBLY, distributor, used with distributor assembly, 381687R91

1шт.

19

352298R1

THRUST WASHER

distributor thrust

2шт.

20

353894R1

VALVE SPRING

SPRING, distributor cap

2шт.

21

353895R1

SUPPORT

distributor cap spring

2шт.

132756

SCREW, 8/32 x 7/16 C-Z slt-rd-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

22

353898R11

HOUSING

ASSEMBLY, distributor, consists of (1) housing (NSS), (1) o-ring 252739R1, (1) plug 125947, (1) retainer 353899R1

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

1/8 C-Z slt-hd stl pipe

1шт.

23

353899R1

STOP

RETAINER, distributor shaft oil seal

1шт.

24

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32, distributor shaft

1шт.

373577R91

KIT

PACKAGE, distributor shaft bushing service, consists of (1) bushing 353921R1

1шт.
