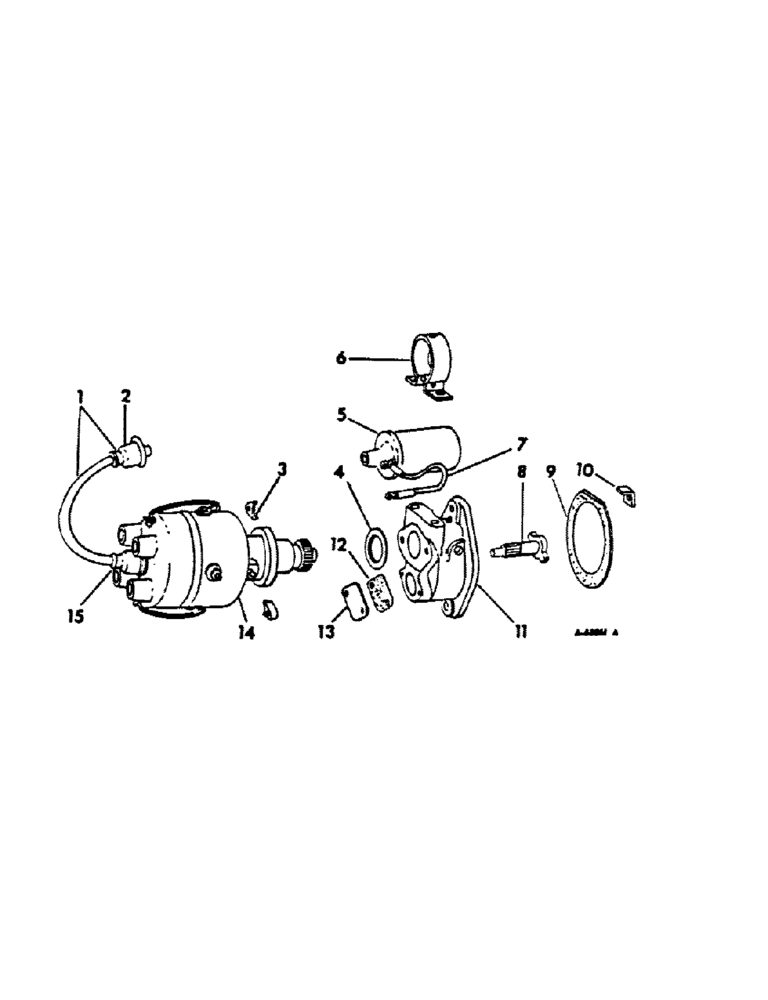

Запчасти Case IH C-153 (E-18) - BATTERY IGNITION UNIT

1

373167R91

CABLE

w/two nipples, coil to distributor, engines w/serial number 63514 and below

1шт.

1

CABLE, w/two nipples, coil to distributor, engines w/serial number 63515 and above furnish package, 70218C91

1шт.

2

372875R1

NIPPLE, LUBE

NIPPLE, ignition coil terminal

1шт.

3

353937R1

CLIP

CLAMP, distributor

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

353936R2

GASKET

distributor

1шт.

5

396546R93

KIT

PACKAGE, ignition coil service, 444, 2444, 2444 lo-boy, 4000 fork lifts, 504 and 3514 tractors, consists of (1) coil, (2) washer 120217, (2) nut 120614, (1) nipple 372875R1

1шт.

5

396547R93GV

COIL

Value, Ignition Coil Kit

1шт.

5

396547R93

PACKAGE

ignition coil service, 93, 105, 203 combines 210, 230, 275, 375 windrower and 225 hay swathers, consists of (1) coil, (2) washer 120217, (2) nut 120614, (1) nipple 372875R1

1шт.

5

396547R93GV

COIL

Value, Ignition Coil Assy.

1шт.

6

107446C2

CLAMP

ignition coil

1шт.

177056

HUB

SCREW, 10-32 x 1-1/2 C-Z slt-rd hd tap

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 C-Z slt-rd hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga C-Z

2шт.

7

357929R92

ELECTRIC CABLE

CABLE, coil to distributor primary

1шт.

8

353934R11

SHAFT

GEAR AND SHAFT ASSEMBLY, distributor drive

1шт.

9

46168DB

GASKET

distributor drive housing

1шт.

10

46868D

CLIP

distributor mounting

1шт.

11

363749R91

HOUSING

PACKAGE, distributor drive housing and cover service, consists of (1) cover 363764R1, (1) gasket 363765R1, (2) screws 435429, (2) washers 120217, (1) cover (NSS)

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, , cd-pltd Slotted, Headless, 1/8" NPT

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

1шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

363765R1

GASKET

distributor drive housing hole cover, tractors w/o tachometer

1шт.

13

363764R1

COVER

distributor drive housing hole, tractors w/o tachometer

1шт.

435429

SCREW, 10-32 x 9/16 cd-pltd slt-rd-hd mach Slotted Rd Hd, #10-32 x 9/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

14

DISTRIBUTOR ASSEMBLY, for components see list of parts under details of distributor

1шт.

15

251553R1

BOOT

NIPPLE, distributor cap terminal

1шт.
