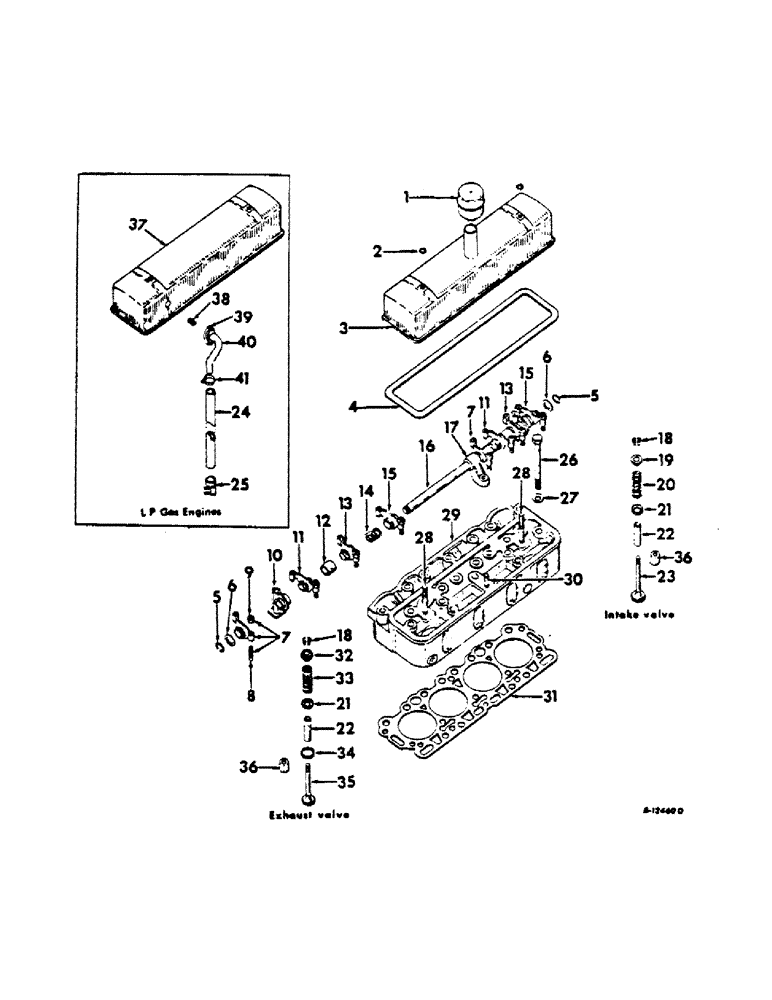

Запчасти Case IH C-153 (E-15) - CYLINDER HEAD AND RELATED PARTS

1

367677R91

BREATHER

ASSEMBLY, cylinder head, 93, 105, 203 combines, 444, 2444, 2444 lo-boy, 3514 tractors and 4000 fork lifts

1шт.

1

375773R91

BREATHER ASSY, cylinder head, 504 tractors, w/LP gas engine serial no., Serial Range: 501-12662

1шт.

385046R1

RETAINER, breather cap, 504 tractors w/LP gas engine serial no., Serial Range: 11741-12662

1шт.

1

49049D

BREATHER

cylinder head, 210, 230, 275, 375 windrowers and 225 hayswathers

1шт.

2

62866D

WASHER,5/64" Thk x 13/32" ID

valve housing stud nut, optional w/357374R1

2шт.

2

357374R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

WASHER, valve housing stud nut, optional w/62866D

2шт.

3

367673R91

HOUSING ASSEMBLY, valve lever, 93, 105, 203 combines and 3514 tractors

1шт.

3

43379DBX

HOUSING ASSY, valve lever, 210, 230, 275, 375 windrowers and 225 hayswathers

1шт.

3

381422R91

HOUSING ASSY, valve lever, 444, 2444, 2444 lo-boy tractors and 4000 fork lifts

1шт.

4

43378DD

GASKET

valve housing

1шт.

5

43375D

RING

valve lever shaft snap

2шт.

6

43374D

SPRING WASHER

valve lever shaft spring

2шт.

7

357291R92

LEVER

W/SCREW AND NUT, exhaust valve LH

2шт.

8

16067DA

ADJUSTMENT SCREW,3/8" - 24

valve lever adjusting

8шт.

9

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting

8шт.

10

42099DA

BRACKET

valve lever shaft end

2шт.

11

357292R92

LEVER

W/SCREW AND NUT, intake valve RH

2шт.

12

43373D

SPACER

valve lever shaft, optional w/365776R1

2шт.

12

365776R1

SPACER, valve lever shaft, optional w/43373D

2шт.

13

357291R92

LEVER

W/SCREW AND NUT, intake valve LH

2шт.

14

24541D

SPRING

valve lever

2шт.

15

357292R92

LEVER

W/SCREW AND NUT, exhaust valve RH

2шт.

16

352521R11

SHAFT

W/PLUGS, valve lever

1шт.

172528

PLUG,Exp, 9/16"

9/16 expansion

2шт.

17

6089DA

BRACKET

valve lever shaft, center

1шт.

18

42026D

KEY

valve spring collar

16шт.

19

42040D

CUP

SEAT, valve spring, upper, optional w/47278D

4шт.

19

47278D

SEAT, VALVE

spring, upper, optional w/42040D

4шт.

20

406723R1

SPRING

intake valve

4шт.

21

356588R1

RETAINER

SEAT, valve spring, lower

8шт.

22

356583R2

GUIDE

valve

8шт.

23

366302R2

VALVE

intake

4шт.

24

386068R1

HOSE, breather

1шт.

25

386071R1

BRACKET, breather pipe

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095

4шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

26

20842R1

BOLT

cylinder head, replaces 364789R1

14шт.

27

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

cylinder head bolt

14шт.

28

373899R1

STUD

valve housing

2шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

29

379038R96

HEAD

W/VALVES, cylinder, consists of (1) head 379240R92, (16) key 42026D, (4) roto cap 356841R91, (4) seal 386192R1, (4) seat 42040D, (8) seat 356588R1, (4) spring 406723R1, (4) spring 368450R1, (4) valve 366302R2, (4) valve 366303R4

1шт.

29

379240R92

HEAD

ASSY, cylinder, consists of (8) guide (NSS), (1) head (NSS), (2) stud 373899R1, (1) stud 355373R1

1шт.

30

355373R1

STUD

valve lever shaft oiler

1шт.

103026

NUT,3/8"-24, G5

1шт.

31

383525R3

GASKET

cylinder head

1шт.

32

356841R91

ROTATOR

ROTO CAP ASSY, exhaust

4шт.

33

368450R1

SPRING

exhaust valve

4шт.

34

378105R1

INSERT

valve seat, std

4шт.

34

378106R1

INSERT, valve seat, 015 O/S

4шт.

34

378107R1

INSERT, valve seat, 030 O/S

4шт.

35

366303R4

VALVE

exhaust, gasoline

4шт.

36

386192R1

SEAL

intake valve stem

4шт.

37

386064R11

HOUSING ASSY, valve lever

1шт.

LP gas engine tractors C-1532501 to 12662 also order ref. nos. 24, 25, 41 and attaching parts.

1шт.

38

386069R1

ELEMENT, breather pipe

1шт.

39

375783R3

GASKET

breather pipe

1шт.

40

386067R11

PIPE ASSY, breather

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

41

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, hose

1шт.
