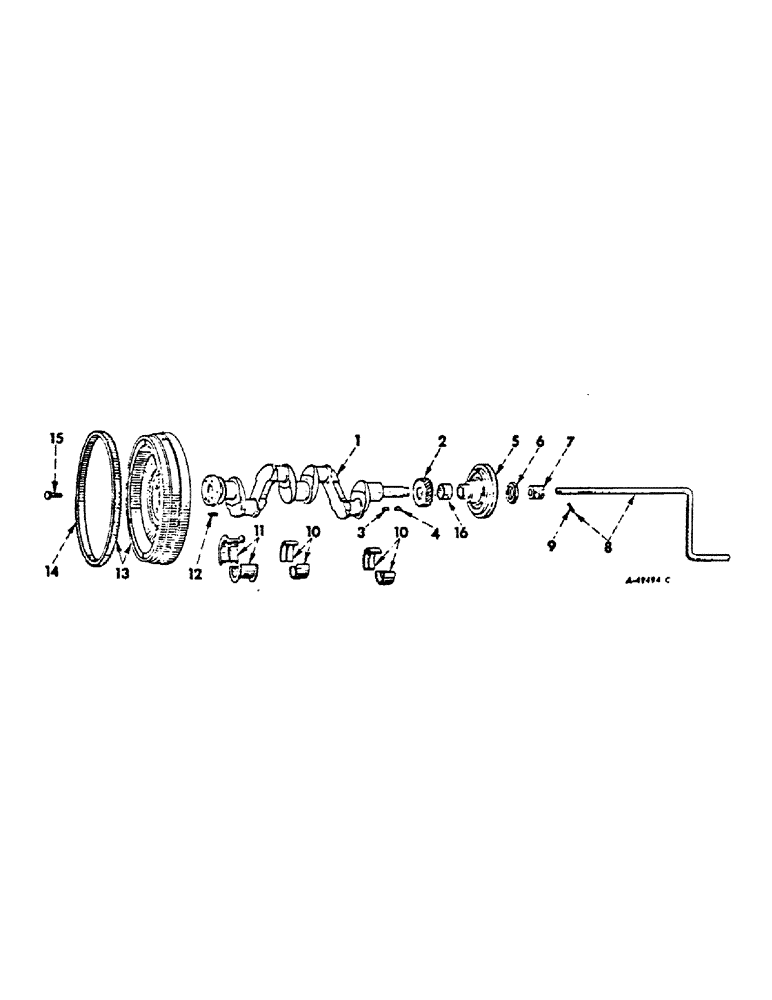

Запчасти Case IH C-153 (E-13) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

375753R92

CRANKSHAFT

ASSY, std, consists of (4) bearing 375723R11, (2) bearing 375755R11, (1) bearing 375762R11, (1) crankshaft (NSS), (1) pin 24550D

1шт.

2

46870DA

PINION

crankshaft, 33 teeth

1шт.

3

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

crankshaft pinion

1шт.

4

218211

DRIVING SPROCKET

fan drive pulley

1шт.

5

391240R1

PULLEY, fan drive, 3514 tractors

1шт.

5

368665R3

PULLEY

front PTO, all machines except 3514 tractors

1шт.

6

V84199

NUT,1"-14, Thin

crankshaft

1шт.

7

(Not used in this application)

1шт.

8

53385DCX

CRANK

ASSY, starting, tractors w/starting crank

1шт.

9

15204D

PIN, starting crank

1шт.

10

375755R11

BEARING SET

BEARING ASSY, crankshaft front and center, std, 2 halves

2шт.

10

375757R11

KIT

BEARING ASSY, crankshaft front and center, .002 u/s, 2 halves

2шт.

10

376660R11

KIT

BEARING ASSY, crankshaft front and center, .010 u/s, 2 halves

2шт.

10

376663R11

BEARING ASSY

ASSY, crankshaft front and center, .020 u/s, 2 halves

2шт.

10

375756R11

CRANKSHAFT BEARING

BEARING ASSY, crankshaft front and center, .030 u/s, 2 halves (Replaces 376756R11)

2шт.

11

375762R11

BEARING SET

BEARING ASSY, crankshaft rear, std, 2 halves

1шт.

11

375764R11

BEARING ASSY

BEARING ASSY, crankshaft rear, 002 u/s, 2 halves

1шт.

11

376661R11

BEARING ASSY

ASSY, crankshaft rear, .010 u/s, 2 halves

1шт.

11

376664R11

BEARING ASSY

BEARING ASSY, crankshaft rear, .020 u/s, 2 halves

1шт.

11

375763R11

BEARING ASSY

BEARING ASSY, crankshaft rear, .030 u/s, 2 halves

1шт.

12

24550D

PIN

flywheel dowel

1шт.

13

376887R11

FLYWHEEL ASSY, engine serial no. 29632 and below for 3514 tractors w/o hydra-shuttle transmission

1шт.

13

396418R91

FLYWHEEL, w/ring gear, engine serial no. 29633 and above for 3514 tractors w/o hydra-shuttle transmission

1шт.

13

388577R11

FLYWHEEL

W/RING GEAR, 444, 2444, 2444 lo-boy tractors and 4000 fork lifts

1шт.

13

617214R11

FLYWHEEL ASSY W/RING GEAR, 203 combines

1шт.

13

372436R11

FLYWHEEL ASSY W/RING GEAR, 93 combines

1шт.

13

595447R91

FLYWHEEL W/RING GEAR AND PULLEY, 210, 230, 275 windrowers and 225 hayswathers

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

20024R1

PIN

harden dowel 3/8 x 1

2шт.

13

595448R91

FLYWHEEL W/RING GEAR AND PULLEY, 375 windrowers

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

20024R1

PIN

harden dowel 3/8 x 1

2шт.

14

367042R1

GEAR

flywheel ring, 134 teeth, engine serial no. 29632 and below for 3514 tractors w/o hydra-shuttle transmission, 444, 2444, 2444 lo-boy tractors and 4000 fork lifts

1шт.

14

396421R1

GEAR, RING

GEAR, flywheel ring, 133 teeth, engine serial no. 29633 and above for 3514 tractors w/o hydra-shuttle transmission

1шт.

14

13456VA

GEAR

flywheel ring, 112 teeth, 93 and 203 combines

1шт.

15

358246R1

BOLT (SPREADER),Wheel, 3/8" - 24 x 1 1/4"

BOLT, flywheel, optional w/251272R1

4шт.

15

251272R1

BOLT

flywheel, optional w/358246R1, 3514 tractors w/o hydra-shuttle transmission, 444, 2444, 2444 lo-boy tractors and 4000 fork lifts

1шт.

46349D

LOCK

flywheel bolt, 444, 2444, 2444 lo-boy tractors and 4000 fork lifts (Replaces 49349D)

1шт.

15

635004R1

SCREW

BOLT, flywheel 3/8-24 x 1-1/2 hex-hd, 210, 230, 275, 375 windrowers and 225 hayswathers

4шт.

614723R1

LOCK, flywheel bolt

2шт.

16

NSS

NOT SOLD SEPARAT

RING, oil seal wear, not serviced separately order oil seal assy, 378193R91

1шт.

ST533

BEARING

clutch pilot ball, 444, 2444, 2444 lo-boy tractors and 4000 fork lifts

1шт.
