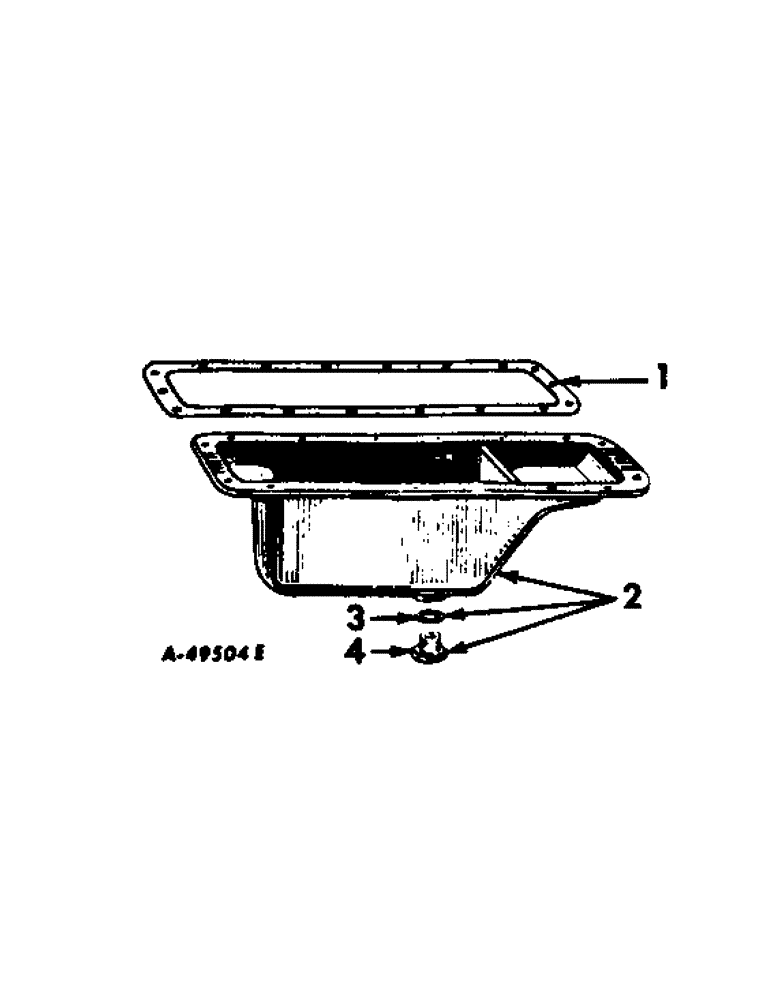

Запчасти Case IH C-153 (E-12[A]) - CRANKCASE OIL PAN

1

43458DB

GASKET

oil pan

1шт.

2

372145R92

PAN

ASSY, crankcase oil, all machines except 93, 105 and 203 combines

1шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, oil gauge valve opening 3/8-18 auto sq-hd pipe

1шт.

2

374256R92

PAN ASSY, crankcase oil, 93, 105, 203 combines

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

14шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

18шт.

3

3405H

GASKET

crankcase oil pan drain plug, all machines except 93, 105 and 203 combines

1шт.

4

445096

PLUG

crankcase oil pan drain, all machines except 93, 105 and 203 combines

1шт.
