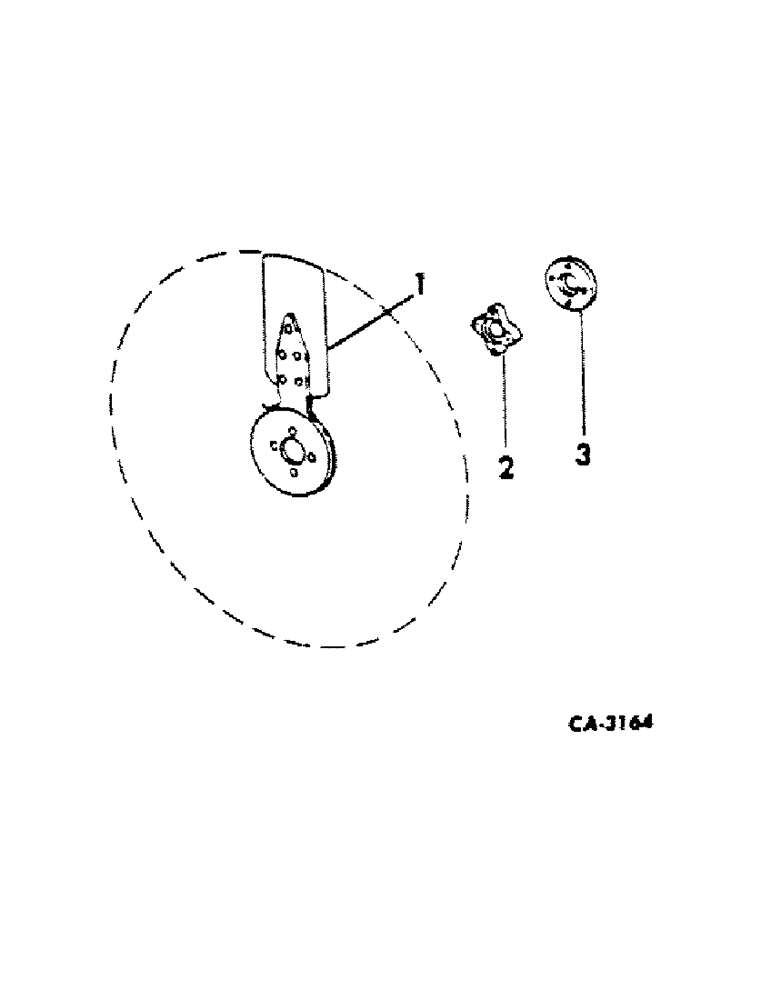

Запчасти Case IH C-153 (E-09) - FAN BLADES AND SPACERS, BELTS

1

86897R91

FAN

BLADE ASSY, fan, Farmall 504 tractors w/serial no. 4242 and above, International 504, 2504 tractors and 2500 constructall

1шт.

179773

SCREW, 1/4-20 x 5/8 hex-hd cap, Farmall 504 tractors

4шт.

181319

BOLT,Hex, 1/4" - 28 x 1 1/2", Gr 5

International 504, 2504 tractors and 2500 constructall Hex, 1/4"-28 x 1 1/2", G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

1

377049R91

FAN

BLADE ASSY, fan, 444, 2444, 2444 lo-boy tractors and 4000 fork lifts

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, 1/4-28 x 5/8 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

1

370700R91

BLADE

ASSY, fan, Farmall 504 tractors w/serial no. 501 to 4241, 93, 105, 203 combines, 210, 230, 275, 375 windrowers and 225 hayswathers

1шт.

181319

BOLT,Hex, 1/4" - 28 x 1 1/2", Gr 5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

1

370781R91

BLADE ASSY, fan, 3514 tractors

1шт.

190910

SCREW, 1/4-20 x 2-3/8 hex-hd cap

4шт.

106264

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

1/2 x 1-1/4 x .083

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

(Not used this application)

1шт.

3

369289R1

SPACER, fan, used w/all machines except 3514 and Farmall 504 tractors

1шт.

3

377055R1

SPACER, fan, Farmall 504 tractors

1шт.

3

318008R1

SPACER, fan, 3514 tractors

1шт.

151529R1

BELT

fan, generator and water pump, 504, 2504, 3514 tractors, 2500 constructall, 93 and 203 combines

1шт.

403580R1

V-BELT,0.42" W x 43.30" L

Fan, generator and water pump, 444, 2444 tractors, 2444 lo-boy tractors and 4000 fork lifts 0.42" W x 43.30" L

1шт.

596313R1

V-BELT,0.38" W x 44.50" L

Fan, generator and water pump, 105 combines, 210, 230, 275, 375 windrowers and 225 hayswathers 0.38" W x 44.50" L

1шт.

385119R1

BELT,0.50" W

V-BELT , Fan, 3514 tractors 0.50" W

1шт.
