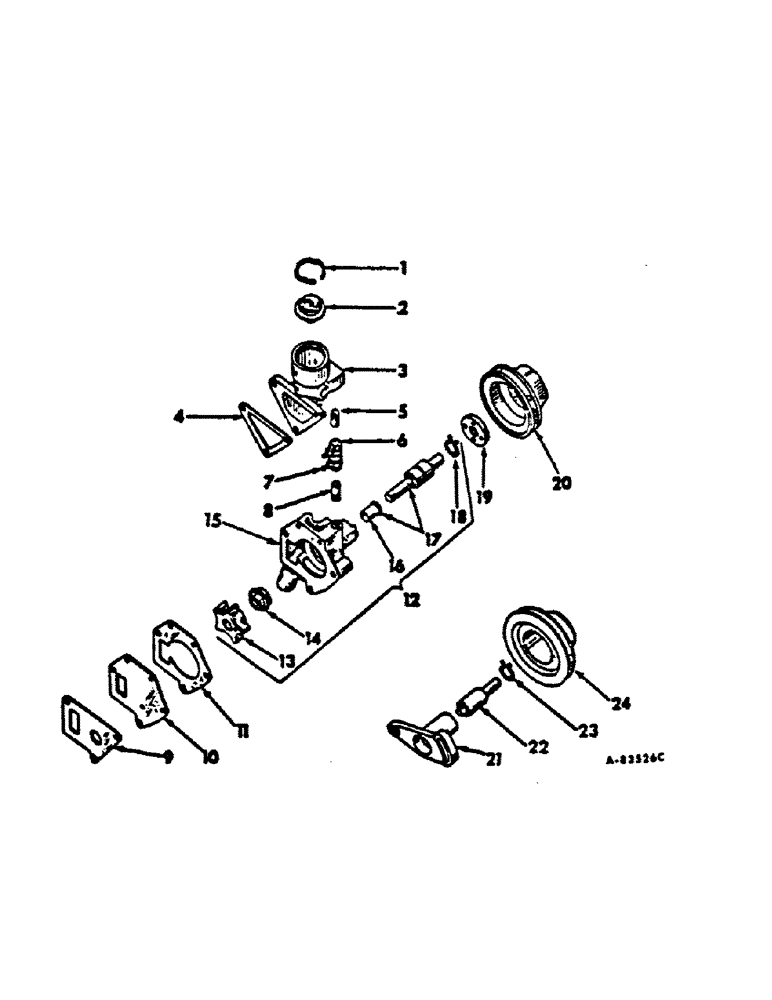

Запчасти Case IH C-153 (E-08) - THERMOSTAT AND WATER PUMP

1

377180R1

RING

thermostat retainer, used w/thermostat, 377156R91, 93, 203 combines and 3514 tractors

1шт.

1

257441R2

SEGMENT

RING, thermostat retainer, 105 combines 210, 230, 275, 375 winndrowers 444, 2444, 2444 lo-boy tractors, 4000 fork lift and 225 hayswathers

1шт.

1

23913R1

SNAP RING,1.625", Int, #162

Ring, Snap, , thermostat, used w/thermostat, 107596C1 1.625", Int, #162

1шт.

2

369322R91

THERMOSTAT

180 deg opening, 105 combines 210, 230, 275, 375 windrowers 444, 2444, 2444 lo-boy tractors, 4000 fork lift and 225 hayswathers

1шт.

2

107596C1

THERMOSTAT

180 deg opening, replaces 377156R91 by also ordering ring, 23913R1 and washer, 107593C1, 93, 203 combines and 3514 tractors

1шт.

107593C1

WASHER

WASHER, thermostat

1шт.

3

375733R1

ELBOW, water outlet, 93, 203 combines and 3514 tractors

1шт.

3

367679R1

ELBOW

water outlet, 105 combines, 210, 230, 275, 375 windpowers, 444, 2444, 2444 lo-boy tractors, 4000 fork lift and 225 hayswathers.

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

43294D

GASKET

water outlet elbow

1шт.

5

367680R1

FITTING

PIPE, upper by-pass, 1 for 93, 203 combines, 3514 tractors, 444, 2444, 2444 lo-boy tractors and 4000 fork lift, 2 for 105 combines, 210, 230, 275, 375 windrowers and 225 hayswathers

1шт.

6

367681R1

HOSE

by-pass pipe, for 93, 203 combines, 3514 tractors, 444, 2444, 2444 lo-boy tractors and 4000 fork lifts

1шт.

6

394605R1

HOSE, by-pass pipe, 105 combines, 210, 230, 275, 365 windrowers and 225 hayswathers

1шт.

7

375061R91

CLAMP

by-pass pipe hose

2шт.

8

368556R1

FITTING

PIPE, lower by-pass, for 93, 203 combines, 3514 tractors, 444, 2444, 2444 lo-boy tractors and 4000 fork lifts

1шт.

9

375745R1

GASKET

water pump plate

1шт.

10

375744R1

SUPPORT

PLATE, water pump, 93, 105, 203 combines, 210, 230, 275, 375 windrowers, 3514 tractors and 225 hayswathers

1шт.

10

368559R1

SUPPORT

PLATE, water pump, 444, 2444, 2444 lo-boy tractors and 4000 fork lifts

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

375743R1

GASKET

water pump body, 93, 105 combines, 210, 230, 275, 375 windrowers, 3514 tractors and 225 hayswathers

1шт.

11

367687R1

GASKET

water pump body, 444, 2444, 2444 lo-boy tractors and 4000 fork lifts

1шт.

12

375742R92

PUMP

ASSY, water, 93, 105 combines, 210, 230, 275, 375 windrowers, 3514 tractors and 225 hayswathers

1шт.

12

375793R92

PUMP

ASSY, water, 444, 2444, 2444 lo-boy tractors and 4000 fork lifts

1шт.

375793R92R

REMAN-WATER PUMP

C-153

1шт.

375793R92C

CORE-WATER PUMP

Return Number

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

186278

BOLT

SCREW, 3/8-16 x 2-5/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-16 auto-sq-hd pipe, 1 used w/444, 2444, 2444 lo-boy tractors and 4000 fork lifts, 2 used w/105, 203 combines, 210, 230, 275, 375 windrowers and 225 hayswathers

1шт.

444673

PLUG

3/8-18 CI auto-sp-hd pipe

1шт.

13

367689R1

IMPELLER

water pump

1шт.

14

73296R93

SEAL

ASSY, water pump

1шт.

15

NSS

NOT SOLD SEPARAT

BODY, not serviced separately, order water pump assy

1шт.

16

71351R1

SLINGER

water pump

1шт.

17

ST644

SHAFT

BEARING, w/shaft, water pump

1шт.

18

102069H

RING

front snap

1шт.

19

368501R2

HUB CAP

HUB, pulley

1шт.

20

367688R1

PULLEY

water pump

1шт.

181307

BOLT,Hex, 1/4" - 28 x 3/8", Gr 5

SCREW, 1/4-28 x 3/8 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

181319

BOLT,Hex, 1/4" - 28 x 1 1/2", Gr 5

4шт.

21

368508R1

ADJUSTER

fan pulley, 3514 tractors

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

22

ST634

BEARING ASSY

BEARING, w/shaft, fan, 3514 tractors

1шт.

23

102069H

RING

RETAINER, bearing, 3514 tractors

1шт.

24

378609R1

PULLEY

fan, 3514 tractors

1шт.
