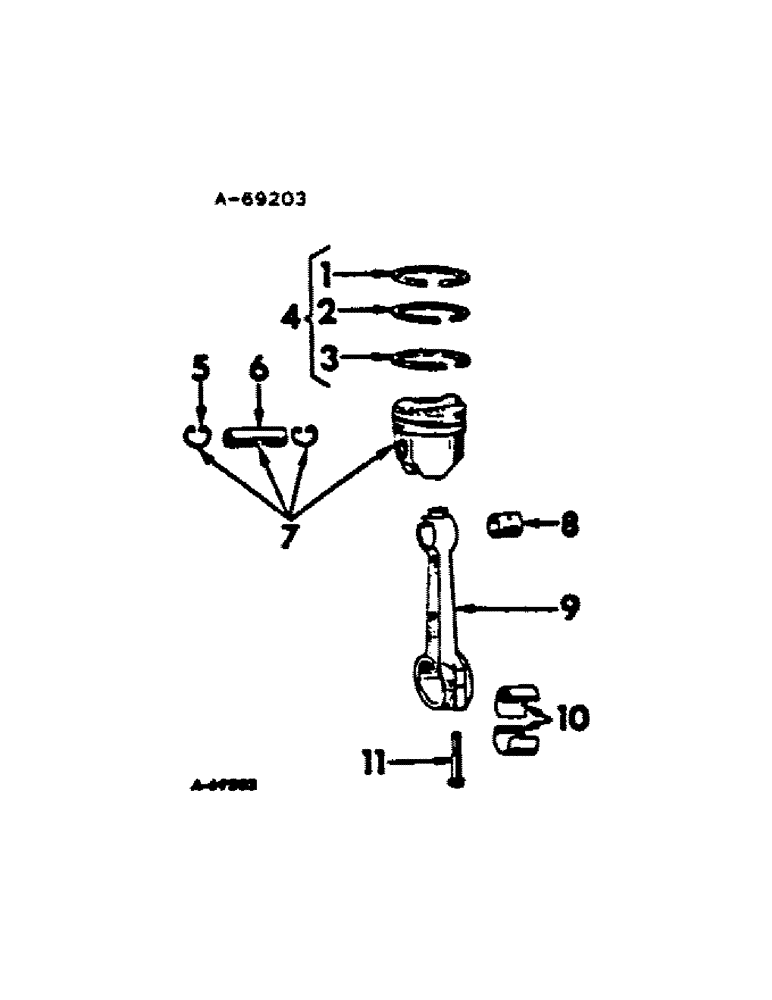

Запчасти Case IH C-146 (D-06) - CONNECTING RODS AND PISTONS

1

NSS

NOT SOLD SEPARAT

RING, compression piston, chrome, top or first groove, not serviced separately, order piston ring set

4шт.

2

NSS

NOT SOLD SEPARAT

RING, compression, second groove, not serviced separately, order piston ring set, groove, .020 oversize

4шт.

3

NSS

NOT SOLD SEPARAT

RING, oil regulating piston, third or bottom groove, not serviced separately, order piston ring set

4шт.

4

539363R1

SET

RING SET, piston, consists of two compression and one oil regulating rings, standard and .010 oversize, replaces 539359R1 and 375845R93

4шт.

4

539364R1

SET

RING SET, piston, consists of two compression and one oil regulating rings, .020 oversize, replaces 539360R1 and 375846R93

4шт.

4

539365R1

PISTON RING SET

RING SET, piston, consists of two compression and one oil regulating rings, .030 oversize, replaces 539361R1 and 378267R93

4шт.

4

539366R1

SET

RING SET, piston, consists of two compression and one oil regulating rings, .040 oversize, replaces 539362R1 and 375847R93

4шт.

5

367798R1

RING, PISTON

pin retaining

8шт.

6

367797R1

PIN,21.83mm OD x 69.93mm L

piston, standard

4шт.

6

367862R1

PIN

piston, .005 oversize

4шт.

7

388558R92

PISTON

ASSEMBLY, standard

4шт.

7

388559R92

PISTON ASSEMBLY, .010 oversize

4шт.

7

388560R92

PISTON

ASSEMBLY, .020 oversize

4шт.

7

388561R92

PISTON

ASSEMBLY, .030 oversize

4шт.

7

388562R92

PISTON

ASSEMBLY, .040 oversize

4шт.

7

388568R92

PISTON ASSEMBLY, high altitude, standard

4шт.

7

388569R92

PISTON ASSEMBLY, high altitude, .010 oversize

4шт.

7

388570R92

PISTON ASSEMBLY, high altitude, .020 oversize

4шт.

7

388571R92

PISTON ASSEMBLY, high altitude, .030 oversize

4шт.

7

388572R92

PISTON ASSEMBLY, high altitude, .040 oversize

4шт.

8

367775R1

BUSHING,21.36mm ID x 23.36mm OD x 29.97mm L

connecting rod

4шт.

9

396976R11

ROD

W/TWO BOLTS, 375732R1 and bushing, 367775R1, connecting, engines w/serial no. 15494 and above

4шт.

9

375595R11

ROD

W/BOLTS, 375732 and bushing 367775R1, connecting, engines w/serial no. 15493 and below

4шт.

10

375723R11

BEARING LINER

BEARING ASSEMBLY, connecting rod, 2 halves, standard

4шт.

10

375725R11

BEARING ASSY

BEARING ASSEMBLY, connecting rod, 2 halves, .002 undersize

4шт.

10

376656R11

BEARING ASSY

BEARING ASSEMBLY, connecting rod, 2 halves, .010 undersize

4шт.

10

376658R11

BEARING ASSY

BEARING ASSEMBLY, connecting rod, 2 halves, .020 undersize

4шт.

10

375724R11

BEARING ASSY

BEARING ASSEMBLY, connecting rod, 2 halves, .030 undersize

4шт.

11

375732R1

BOLT,Hex, 3/8" - 24 x 2"

connecting rod

8шт.
