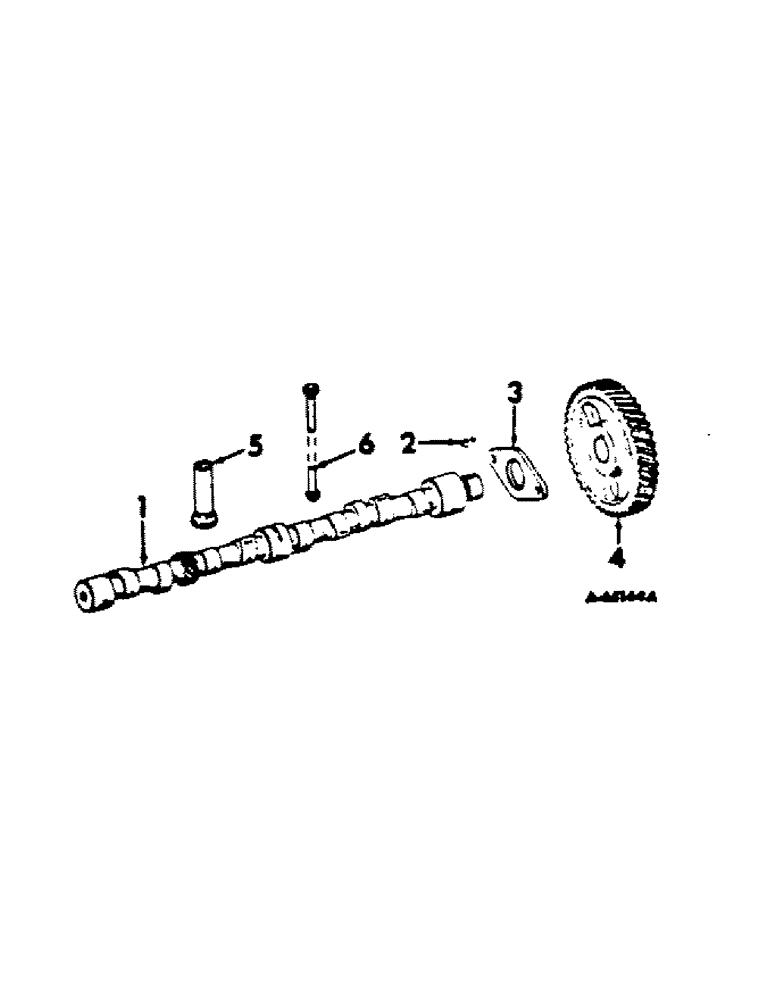

Запчасти Case IH C-146 (D-05) - CAMSHAFT, CAMSHAFT GEAR AND RELATED PARTS

1

353609R31

CAMSHAFT

PACKAGE, camshaft w/product graphic valve setting, 2751251R1

1шт.

2127559

KEY, 1/4 x 3/4 Woodruff 91, camshaft gear

1шт.

3

43249D

PLATE

camshaft thrust, optional with 374704R1

1шт.

3

374704R1

PLATE ASSY.

PLATE, camshaft thrust, optional with 43249D

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

375712R1

GEAR

camshaft, 66 teeth

1шт.

5

47384D

TAPPET

valve, optional with 356979R1

8шт.

5

356979R1

TAPPET

valve, optional with 47384D

8шт.

6

357548R1

ROD

valve push, optional with 360213R91

8шт.

6

360213R91

ROD

valve push, optional with 357548R1

8шт.
