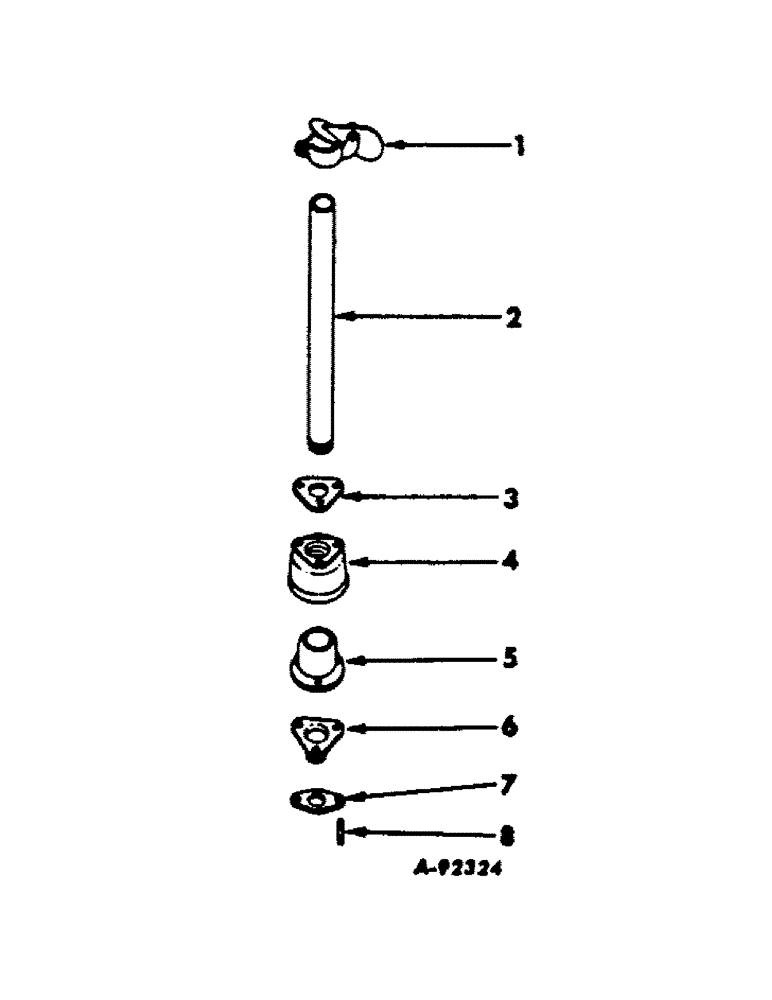

Запчасти Case IH C-146 (D-37) - SPARK ARRESTER, 500 CRAWLER AND SKIDDER TRACTORS

676310R91

PARTS ACCESSORY, spark arrester

1шт.

1

369353R91

CAP

weather

1шт.

2

636158R1

PIPE, exhaust

1шт.

3

636156R1

PLATE, exhaust pipe mounting

1шт.

14-680

BOLT,Hex, 3/8" - 24 x 5", Gr 5

BOLT, 3/8-16 x 5 hex-hd cap

3шт.

92082H

NUT, 3/8-16 hex.

3шт.

4

353266R1

TOP, spark arrester

1шт.

5

353265R1

BODY, spark arrester

1шт.

6

676386R91

BASE, spark arrester

1шт.

7

368482R1

GASKET

exhaust pipe

1шт.

8

636431R1

STUD, exhaust pipe

2шт.

103026

NUT,3/8"-24, G5

2шт.

Q1504

WASHER

13/32 x 7/8 x 16 ga

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
