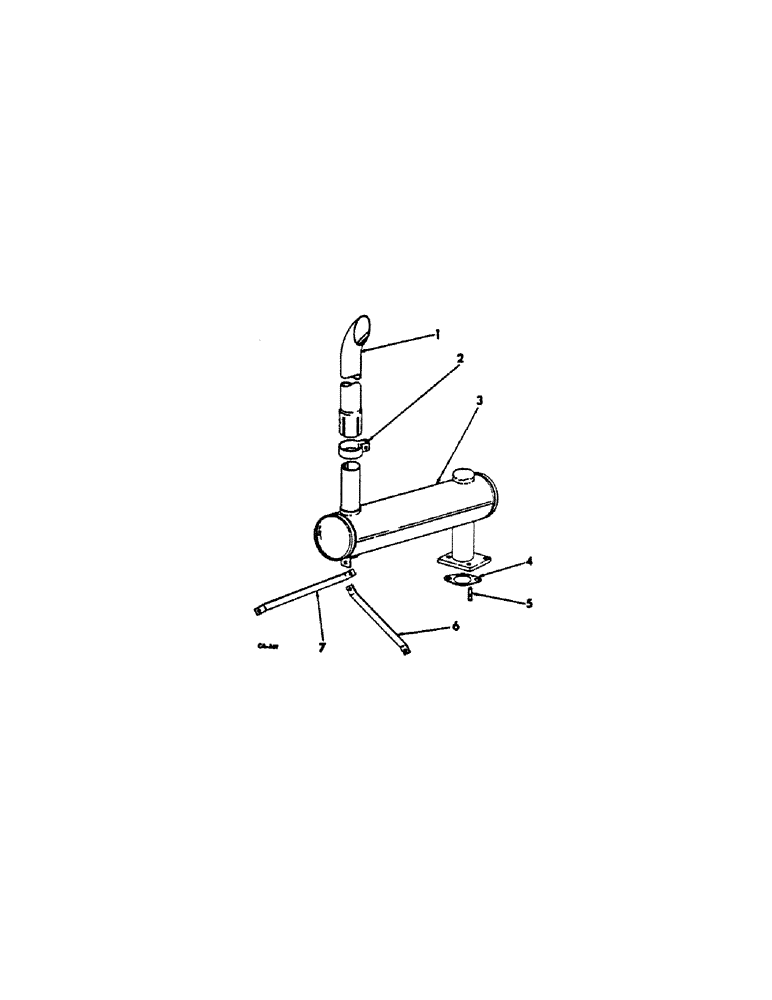

Запчасти Case IH C-146 (D-36[A]) - EXHAUST SYSTEM, FOR 500C CRAWLER TRACTORS

1

677502R1

TUBE, exhaust vertical 2.5" OD, 20.25, 3.062" Length

1шт.

2

850059C1

CLAMP, exhaust tube

1шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

5/16 x 1-1/2 crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

677500R91

MUFFLER

exhaust w/spark arrester

1шт.

677817R91

MUFFLER, exhaust w/o spark arrester

1шт.

444595

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG, muffler, used with 677817R91

1шт.

4

368482R1

GASKET

muffler flange

1шт.

5

636431R1

STUD, flange

2шт.

495-21031

WASHER,1/4"

NUT, 3/8NF

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

677503R1

BRACE, muffler support front

1шт.

7

677504R1

BRACE, muffler support rear

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 2

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.
