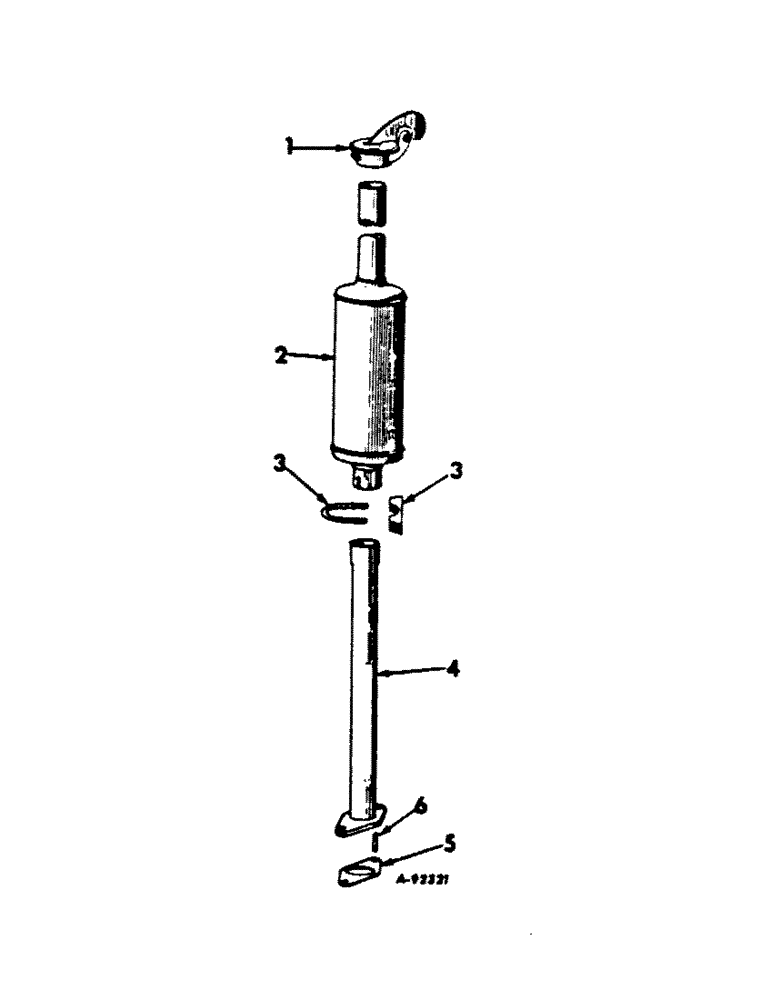

Запчасти Case IH C-146 (D-35) - EXHAUST SYSTEM, 500 CRAWLER S/N H2369 & BELOW AND SKIDDER S/N H1143 & BELOW

1

265927R91

CAP

weather, 500 crawlers with serial no. H1781 and below and skidder w/serial no. H1077 and below

1шт.

1

319618R91

CAP

weather, 500 crawlers with serial no. H1782 and above and skidder w/serial no. H1078 and above

1шт.

2

MUFFLER, exhaust pipe, 500 Crawlers with serial no. H1781 and below and skidder w/serial no. H1077 and below, order muffler, 676440R91 and cap, 319618R91

1шт.

2

676440R91

MUFFLER

exhaust pipe, 500 Crawlers with serial no. H1782 and above and skidder w/serial no. H1078 and above

1шт.

3

170572R91

CLAMP

muffler

1шт.

120368

NUT,5/16"-24, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

676306R11

PIPE, exhaust

1шт.

5

368482R1

GASKET

exhaust pipe

1шт.

6

636431R1

STUD, exhaust pipe

2шт.

103026

NUT,3/8"-24, G5

2шт.

1504

BOLT,Hex, 5/16" - 18 x 5", Gr 5

WASHER, 13/32 x 7/8 x 16 ga

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
