(D-30) - LUBRICATING OIL FILTER, MACHINES W/SERIAL NO. 16552 AND BELOW

Запчасти Case IH C-146 (D-30) - LUBRICATING OIL FILTER, MACHINES W/SERIAL NO. 16552 AND BELOW

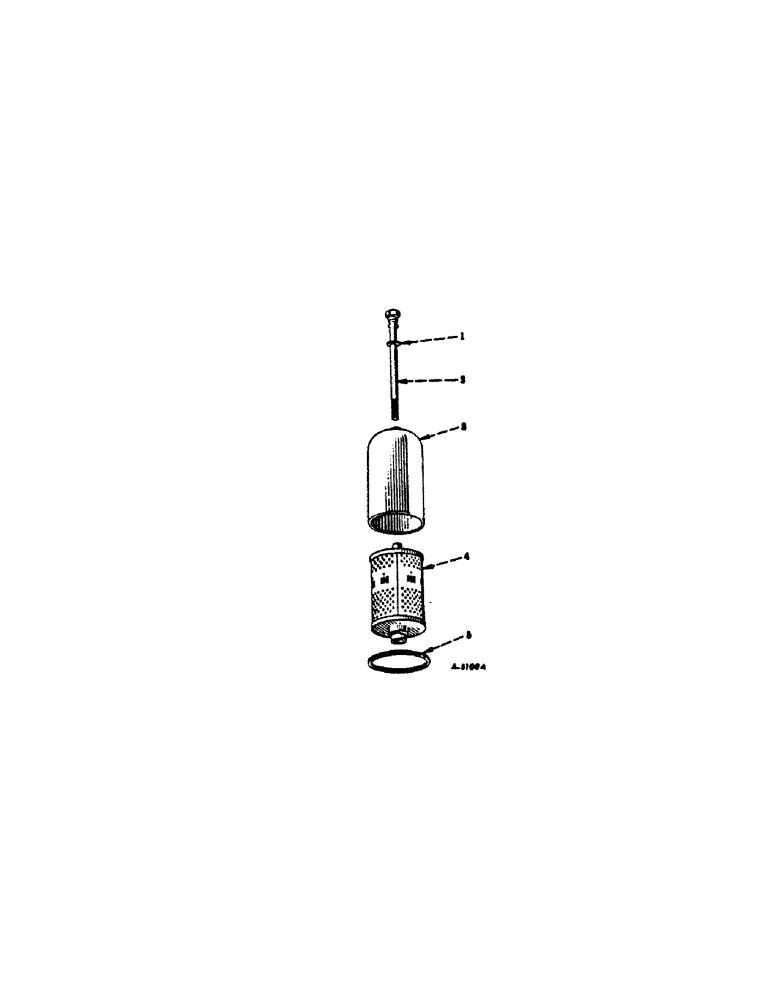

Схема запчастей Case IH C-146 - (D-30) - LUBRICATING OIL FILTER, MACHINES W/SERIAL NO. 16552 AND BELOW
1
5
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

13727D

GASKET

GASKET, oil filter case retaining bolt

1шт.

2

63857DA

BOLT

oil filter case retaining

1шт.

3

63856D

CASE

oil filter

1шт.

4

376374R91

FILTER, ENGINE OIL

ELEMENT, oil filter

1шт.

4

376374R91GV

FILTER

Value, Oil Filter

1шт.

5

13728D

GASKET

oil filter case

1шт.

538829R91

PACKAGE, conversion

1шт.
