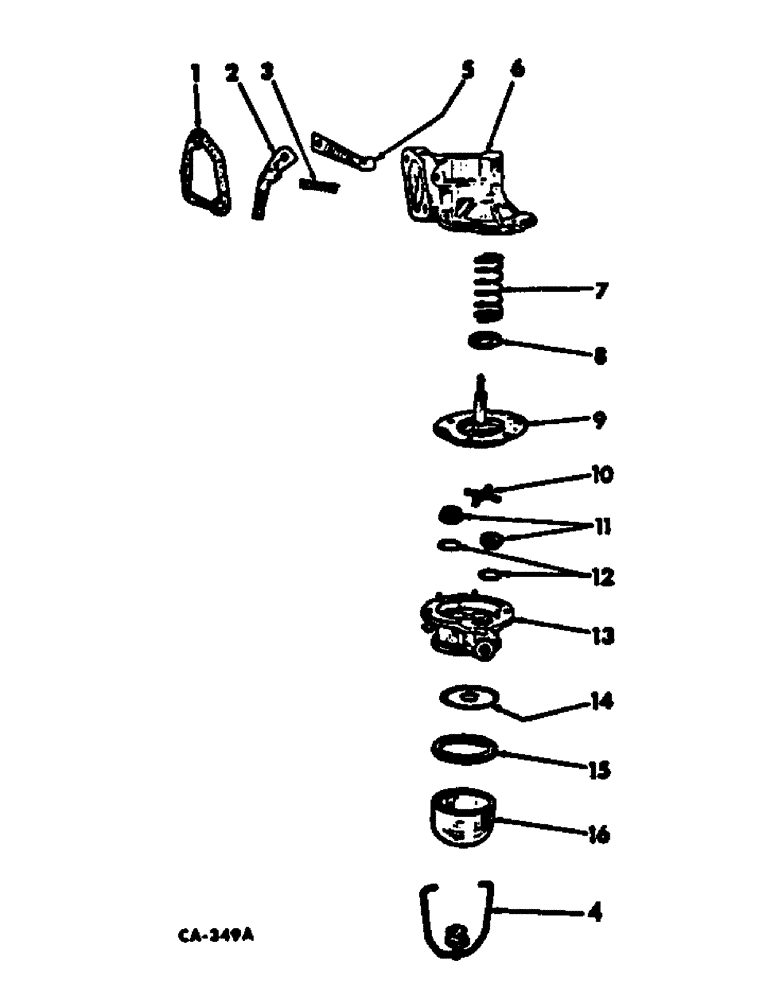

Запчасти Case IH C-146 (D-27) - MECHANICAL FUEL PUMP, FOR 500C CRAWLER TRACTORS

57324DX

PUMP

fuel

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 2

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

1

49124D

GASKET

fuel pump

1шт.

2

59993D

ARM, rocker

1шт.

36350D

PIN, rocker arm

1шт.

36351D

WASHER, rocker arm pin

1шт.

3

59081DA

SPRING, rocker arm

1шт.

4

98375R91

KIT

BAIL, fuel bowl

1шт.

5

59082DA

LINK, rocker arm

1шт.

6

NSS

NOT SOLD SEPARAT

BODY, pump, order 57324DX pump

1шт.

7

304156R1

SPRING, diaphragm

1шт.

8

56086D

RETAINER, diaphragm SPG

1шт.

9

304138R91

GAUGE ASSY.

DIAPHRAGM, fuel pump

1шт.

10

59996D

PLATE, valve

1шт.

132900

BOLT,Sl Rnd Hd, #10 - 32 x 3/8"

SCREW, valve plate

1шт.

11

59084DA

VALVE AND CASE, intake and outlet

1шт.

12

59995D

GASKET, valve and cage

2шт.

13

59091D

COVER, fuel pump

1шт.

122158

GEAR

WASHER, no. 10 LK

7шт.

130894H

SCREW, no. 10 NF x 5/8 sltd fil-hd

7шт.

14

59090D

FILTER

SCREEN, fuel pump

1шт.

15

59089D

GASKET

fuel bowl

1шт.

16

98376R91

BOWL

fuel pump, includes 59089D, gasket

1шт.
