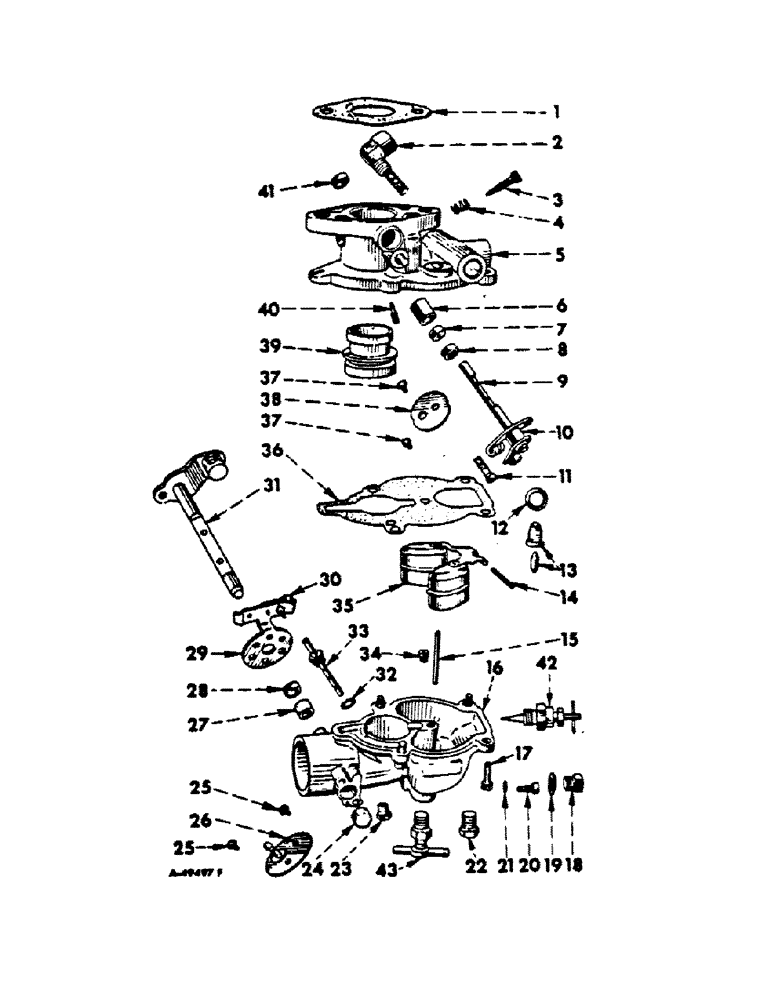

Запчасти Case IH C-146 (D-25) - CARBURETOR, ZENITH

392425R91

CARBURETOR

ASSY, 500 Crawler tractors, discontinued for service, on orders for 392425R91, furnish assy, 397341R91

1шт.

1

382116R1

GASKET

carburetor

1шт.

Not Included in Carburetor Assembly.

1шт.

2

53796D

ELBOW

fuel screen

1шт.

3

13873D

NEEDLE

NEEDLE, idle adjusting

1шт.

4

12472D

SPRING

idle adjusting

1шт.

NLS

NO LONGER SERVICED

BODY ASSY, throttle, discontinued for service

1шт.

50705D

STUD

carburetor manifold

2шт.

Not Included in Carburetor Assembly.

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

Not Included in Carburetor Assembly.

1шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

Not Included in Carburetor Assembly.

1шт.

6

368360R1

BUSHING

throttle shaft

2шт.

7

368358R2

RUBBER SEAL

throttle shaft

1шт.

8

376139R1

RETAINER

throttle shaft seal

1шт.

9

393864R91

LEVER

SHAFT ASSY, lever throttle, includes 135645H, pin

1шт.

54062D

WASHER

throttle lever

1шт.

NLS

NO LONGER SERVICED

PIN, throttle lever taper, discontinued for service

1шт.

11

NS

NOT SERVICED

(Not serviced)

1шт.

12

53792D

WASHER

fuel valve seat

1шт.

13

393869R91

VALVE & SEAT, fuel

1шт.

14

NLS

NO LONGER SERVICED

AXLE, float, discontinued for service

1шт.

15

NLS

NO LONGER SERVICED

TUBE, idler filler, discontinued for service

1шт.

16

NLS

NO LONGER SERVICED

BOWL ASSY, fuel, discontinued for service

1шт.

17

19270R91

SCREW, bowl to body, will work for 357154R91

4шт.

454415

SCREW, shutter attaching

2шт.

18

31860D

PLUG

main jet passage

1шт.

19

12433D

WASHER

passage jet fibre

1шт.

20

NLS

NO LONGER SERVICED

JET, main, discontinued for service

1шт.

21

12435D

SEALING WASHER

WASHER, main jet

1шт.

22

54063D

PLUG

fuel bowl drain

1шт.

23

384327R91

FILTER

drip plug

1шт.

24

377798R1

PLUG

choke shaft hole

1шт.

25

454415

SCREW ASSY, choke valve plate

2шт.

26

368355R91

SHUTTER

air

1шт.

27

21210D

WASHER

choke shaft packing

1шт.

28

42191D

RETAINER

choke shaft packing

1шт.

29

369885R91

BRACKET, air shutter, includes 369886R1, clamp, 19404R1, nut and 19403R1, screw

1шт.

30

369886R1

CLAMP

bracket tube

1шт.

19403R1

SCREW, no. 8 x 1/2 sltd-hd cd-pltd

1шт.

19404R1

NUT, no. 8 cd-pltd sq

1шт.

131958

ELBOW

SCREW, no. 8 x 5/16 sltd-fil-hd

2шт.

31

369884R91

SHUTTER

LEVER & SHAFT, air shutter

1шт.

19451R1

SCREW, no. 8 x 3/8 sltd-hd cd-pltd

1шт.

32

NLS

NO LONGER SERVICED

WASHER, main discharge jet, discontinued for service

1шт.

33

368354R91

JET

main discharge

1шт.

34

106308H

JET, well vent

1шт.

35

NLS

NO LONGER SERVICED

FLOAT, carburetor, discontinued for service

1шт.

36

368362R1

GASKET

, Serial Range: bowl-body

1шт.

37

454415

SCREW, valve plate

2шт.

38

393865R91

PLATE, throttle valve

1шт.

39

NLS

NO LONGER SERVICED

VENTURI, discontinued for service

1шт.

40

384863R1

JET

idling

1шт.

41

53797D

PLUG

throttle shaft hole

1шт.

42

NOT USED THIS APPLICATION

1шт.

43

NOT USED THIS APPLICATION

1шт.
