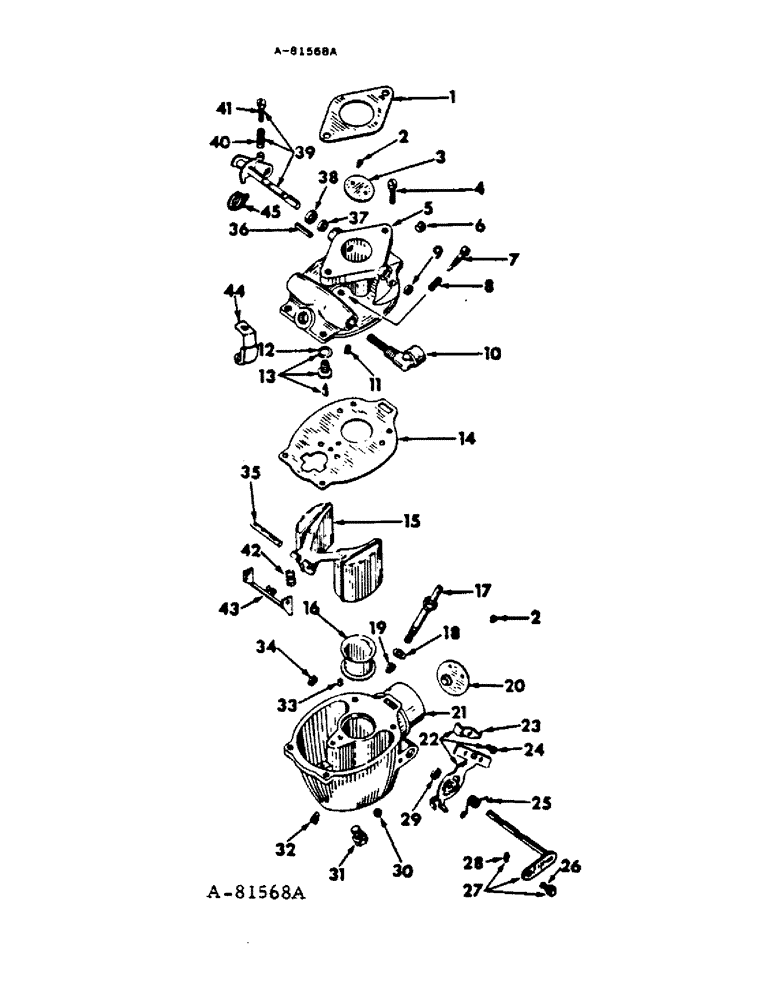

Запчасти Case IH C-146 (D-21) - CARBURETOR
№
Артикул
Название
Примечание
Количество
389683R94
CARBURETOR
ASSY, 424 tractors, 660, 770 and 780 hi-clear sprayers
1шт.
397341R91
CARBURETOR
ASSY, 500 crawler tractors
1шт.
1
382116R1
GASKET
carburetor
1шт.
Not Included in Carburetor Assembly.
1шт.
2
352701R91
SCREW
choke & throttle plate
4шт.
3
391677R1
PLATE, throttle, 18 deg
1шт.
4
19563R91
SCREW, Serial Range: body-bowl
4шт.
5
400824R91
BODY ASSY, throttle, consists of (1) body (NSS), (1) cup 69930D, (1) packing 373390R1, (1) pin 376358R1, (1) plate 391677R1, (1) plug 444613, (1) plug 373401R1, (1) plug 373400R1, (1) retainer 69931D, (2) screw 352701R91, (1) shaft assembly 373388R91
1шт.
50705D
STUD
carburetor mounting
2шт.
Not Included in Carburetor Assembly.
1шт.
114493
JAM NUT,Jam, 5/16"-24, G5
2шт.
Not Included in Carburetor Assembly.
1шт.
115548
LOCK WASHER,Int Tooth, 5/16"
WASHER, LOCK, Int Tooth, 5/16"
2шт.
Not Included in Carburetor Assembly.
1шт.
6
373400R1
PLUG, idle drilling
1шт.
7
69923D
SCREW
idle adjusting
1шт.
8
69954D
SPRING
idle adjusting screw
1шт.
9
69930D
CUP
throttle shaft
1шт.
10
69938D
ELBOW
& SCREEN ASSY, gas inlet
1шт.
11
373378R1
JET
idling
1шт.
12
69950D
GASKET
float valve seat
1шт.
13
392096R91
VALVE
ASSY, float, used with carburetor assy, 389683R94
1шт.
13
382499R91
JET
SEAT & AXLE ASSY, float valve, used with carburetor assy, 397341R91
1шт.
14
69952D
GASKET
throttle, Serial Range: body-bowl
1шт.
15
69919D
FLOAT
ASSY
1шт.
16
398515R1
VENTURI
25/32 in.
1шт.
17
391699R1
NOZZLE, main
1шт.
18
373361R1
GASKET
main nozzle
1шт.
19
403877R1
JET, power, used with carburetor assy, 389683R94
1шт.
19
401385R1
JET
power, used with carburetor assy, 397341R91
1шт.
20
391679R91
PLATE ASSY, choke
1шт.
21
391678R91
BODY ASSY, fuel, consists of (1) bowl (NSS), (1) cup 69930D, (1) plug 373404R1, (1) vent 373384R1, (1) strainer 373387R1
1шт.
22
373372R91
BRACKET
ASSY, choke valve
1шт.
453666
SCREW W/SPRING LOCK WASHER, 8-32 slt-fil-hd mach
1шт.
23
373373R1
CLIP
choke valve bracket
1шт.
24
20832R91
SCREW, 8-32 x 1/2 slt-hex-hd
1шт.
25
373369R1
SPRING
choke return
1шт.
26
373405R1
PIVOT
SWIVEL, choke shaft
1шт.
455956
SCREW, 8-32 x 5/16 C-Z slt-hex-hd mach
1шт.
27
373366R91
LEVER
SHAFT ASSY, choke
1шт.
28
373406R1
SPLIT PIN
SPRING, swivel retainer
1шт.
29
69924D
PACKING
choke shaft
1шт.
30
373387R1
FILTER
STRAINER, bowl
1шт.
32
373404R1
PLUG
power jet drilling
1шт.
33
373384R1
VENT, well
1шт.
34
69930D
CUP
choke shaft
1шт.
35
69920D
SHAFT
AXLE, float
1шт.
36
376358R1
PIN, throttle stop
1шт.
37
373390R1
PACKING
throttle
1шт.
38
69931D
RETAINER
throttle shaft packing
1шт.
39
373388R91
LEVER
SHAFT ASSY, throttle
1шт.
40
69953D
SPRING
throttle stop screw
1шт.
41
131979
SCREW,Sl Fil Hd, #8 - 32 x 3/4"
throttle stop
1шт.
42
382954R1
SPRING, float support, used with carburetor assy, 389683R94 (Replaces 381954R1)
1шт.
43
381965R1
SUPPORT
BRACKET, float support sprint, used with carburetor assy, 389683R94
1шт.
44
370535R1
CLIP
solenoid wire, used w/carburetor 389683R94
1шт.
45
399150R1
SPRING, throttle torsion, used with carburetor assy, 389683R94
1шт.
389679R93
VALVE
SHUT-OFF ASSY, fuel solenoid, used w/carburetor 389683R94
1шт.
Not Included in Carburetor Assembly.
1шт.
373359R91
GASKET
SET, carburetor, consists of (1) gasket 69950D, (1) gasket 373361R1, (1) gasket 69952D
1шт.
440832R92
KIT, carburetor repair, used with carburetor assy, 397341R91, consists of ref. no.s 7, 8, 11, 13, 14, 18, 29, 34, 37, 38, 39, and gasket set, 373359R91
1шт.
527930R91
KIT
carburetor repair, used w/carburetor assy, 389683R94
1шт.
Consists of (1) package 373359R91, (4) screw 352701R91, (1) screw 69923D, (1) spring 69954D, (1) axle 69920D, (1) spring 381964R1, (1) bracket 381965R1, (1) jet 373378R1, (1) seat 392096R91, (1) shaft 373388R91, (1) packing 373390R1, (1) retainer 69931D, (1) packing 69924D, (2) cup 69930D
1шт.
Выбрано товаров: 64
