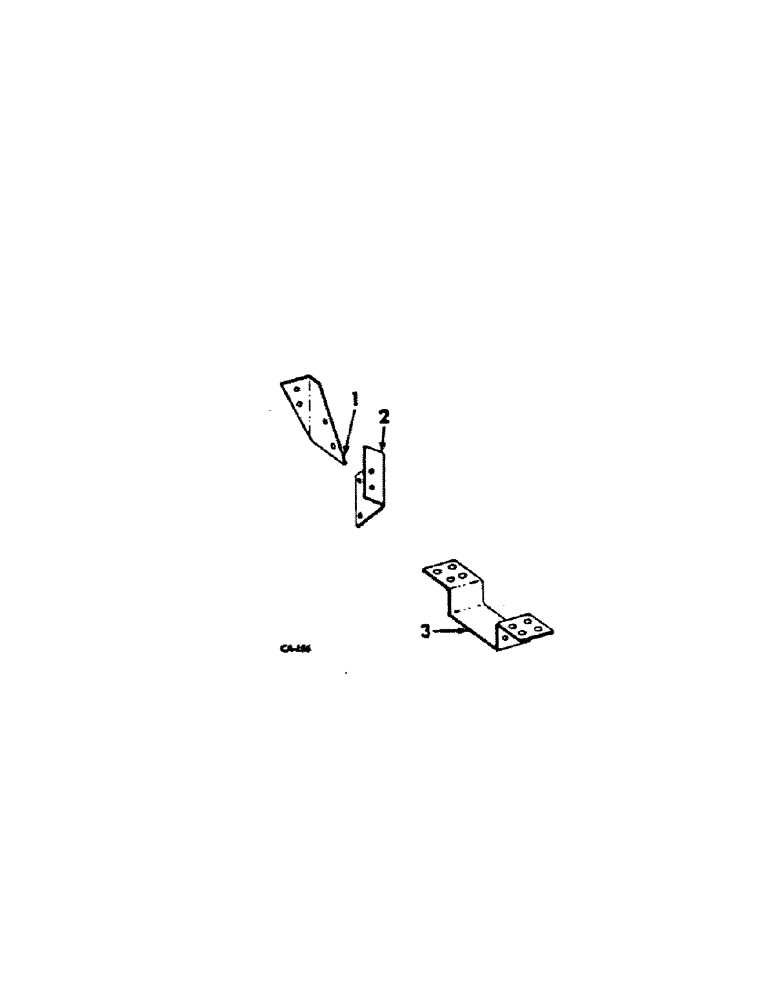

Запчасти Case IH C-146 (D-19[B]) - ENGINE SUPPORTS 660, 770, AND 780 HI-CLEAR SPRAYERS

1

671268R1

BRACKET, engine support RH

1шт.

17450R1

BOLT, 5/8-11 x 1-1/4 hex-hd mach

1шт.

17578R1

BOLT (SPREADER),Hex, 5/8"-11 x 2 1/2", G2

BOLT, 5/8-11 x 2-1/2 hex-hd mach

3шт.

102639

NUT,5/8"-11, G5

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

671267R1

BRACE, engine support LH

1шт.

3

671266R1

SUPPORT, engine rear

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2-13 x 1-1/4 hex-hd mach

8шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
