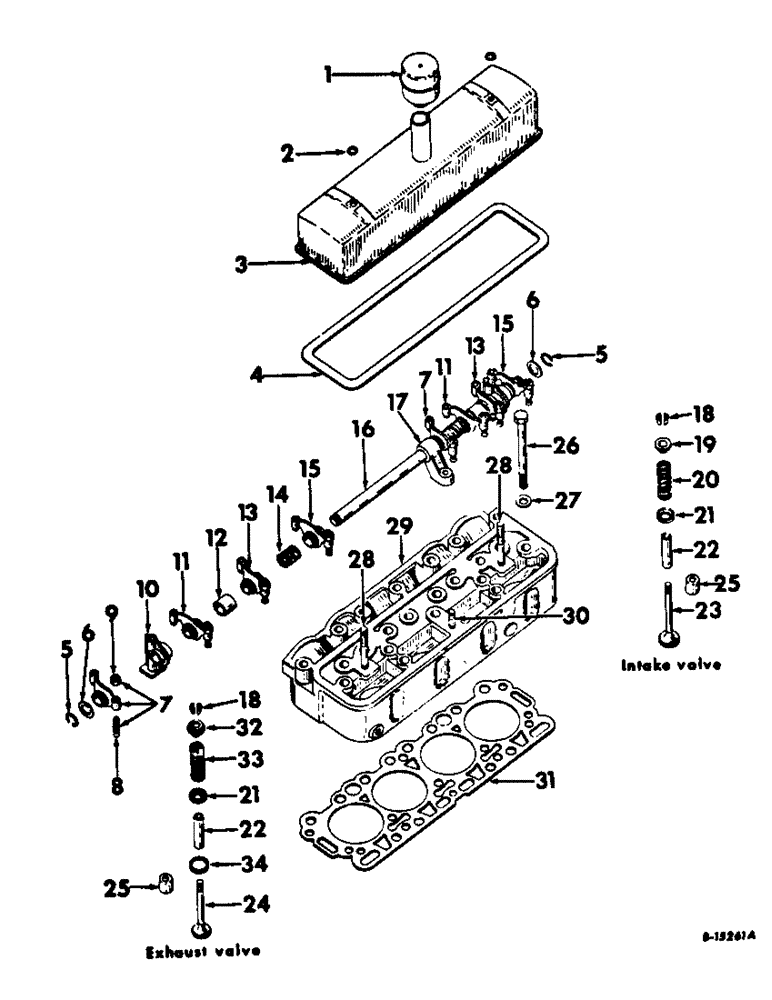

Запчасти Case IH C-146 (D-13) - CYLINDER HEAD, VALVE COVER, VALVES AND VALVE LEVERS

1

367677R91

BREATHER

ASSEMBLY, cylinder head

1шт.

2

62866D

WASHER,5/64" Thk x 13/32" ID

valve stud nut, optional with 357374R1

2шт.

2

357374R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

WASHER, valve stud nut, optional with 62866D

2шт.

3

367673R91

COVER ASSEMBLY, valve, 500, 500C crawler tractors and 660, 770 and 880 hi-clear sprayers

1шт.

3

381422R91

HOUSING ASSY, valve lever, 424 tractors

1шт.

4

43378DD

GASKET

valve cover

1шт.

5

43375D

RING

valve lever shaft snap

2шт.

6

43374D

SPRING WASHER

valve lever shaft spring

2шт.

7

357291R92

LEVER

ASSEMBLY, exhaust valve LH

2шт.

8

16067DA

ADJUSTMENT SCREW,3/8" - 24

valve lever adjusting

8шт.

9

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting screw

8шт.

10

42099DA

BRACKET

valve lever shaft end

2шт.

86509310

NUT,3/8" - 24, Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

357292R92

LEVER

W/ADJUSTING SCREW, intake valve RH

2шт.

12

43373D

SPACER

valve lever, optional with 365776R1

2шт.

12

365776R1

SPACER, valve lever, optional with 43373D

2шт.

13

357291R92

LEVER

W/ADJUSTING SCREW, intake valve LH

2шт.

14

24541D

SPRING

valve lever

2шт.

15

357292R92

LEVER

ASSEMBLY, exhaust valve RH

2шт.

16

352521R11

SHAFT

W/TWO PLUGS, valve lever

1шт.

17

6089DA

BRACKET

valve lever shaft center

1шт.

18

42026D

KEY

valve spring collar

16шт.

19

42040D

CUP

SEAT, intake valve spring upper, optional with 47278D

4шт.

19

47278D

SEAT, VALVE

SEAT, intake valve spring upper, optional with 42040D

4шт.

20

366304R1

SPRING

intake valve, all machines except 500C crawler tractors

4шт.

20

406723R1

SPRING

intake valve, 500C crawler tractors

4шт.

21

356588R1

RETAINER

SEAT, valve spring lower

8шт.

22

356583R2

GUIDE

valve

8шт.

23

366302R2

VALVE

intake

4шт.

24

366303R4

VALVE

., exhaust

4шт.

25

386192R1

SEAL

valve stem

8шт.

26

20842R1

BOLT

cylinder head, replaces 364789R1

14шт.

27

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

cylinder head bolt

14шт.

28

373899R1

STUD

valve housing

2шт.

86509310

NUT,3/8" - 24, Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

29

379240R92

HEAD

ASSY, cylinder, consists of (8) guide (NSS), (1) head (NSS), (2) stud 373899R1, (1) stud 355373R1

1шт.

29

379038R95

HEAD

W/VALVES, cylinder, consists of (1) head 379240R92, (16) key 42026D, (4) rotocap 356841R91, (8) seal 386192R1, (4) seat 42040D, (8) seat 356588R1, (4) spring 366304R1, (4) spring 368450R1, (4) valve 366302R2, (4) valve 366303R3

1шт.

30

355373R1

STUD

valve lever shaft oiler

1шт.

103026

NUT,3/8"-24, G5

1шт.

31

383525R3

GASKET

cylinder head

1шт.

32

356841R91

ROTATOR

ROTOCAP, exhaust valve

4шт.

33

368450R1

SPRING

exhaust valve

4шт.

34

378105R1

INSERT

exhaust valve seat

4шт.

34

378106R1

INSERT, exhaust valve seat, .015 oversize

4шт.

34

378107R1

INSERT, exhaust valve seat, .030 oversize

4шт.

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, 660, 770 and 780 hi-clear sprayers

1шт.

61813D

CLIP

cable harness

1шт.
