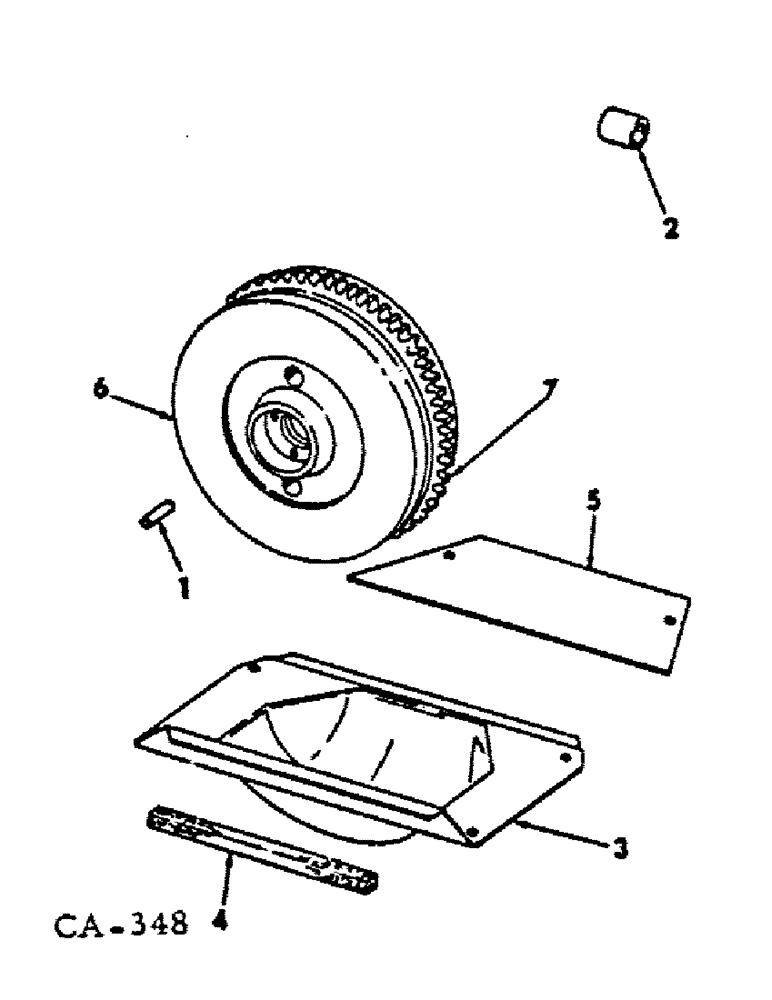

Запчасти Case IH C-146 (D-12) - FLYWHEEL AND COVER, FOR 500C CRAWLER TRACTORS

1

19996R1

DOWEL,3/8" x 7/8"

PIN, dowel, power shift reverser

2шт.

2

635091R1

BUSHING, clutch release shaft

2шт.

3

676980R1

COVER, flywheel housing

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 2

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

4

636521R1

SEAL, flywheel housing cover

1шт.

5

676981R1

BAR, flywheel housing cover

1шт.

6

676993R11

FLYWHEEL ASSY, engine, mechanical spur drive, includes 16117D gear and 19996R1 pin

1шт.

6

676995R11

FLYWHEEL ASSY, engine, power shift reverser, includes 16117D gear and 19996R1 pin

1шт.

6

676997R11

FLYWHEEL ASSY, engine, power shift reverser with torque converter, includes 16117D gear and 9996R1 pin

1шт.

635004R1

SCREW

BOLT, flywheel

4шт.

614723R1

BOLT, lock

2шт.

7

16117D

GEAR, 12 T ring

1шт.
