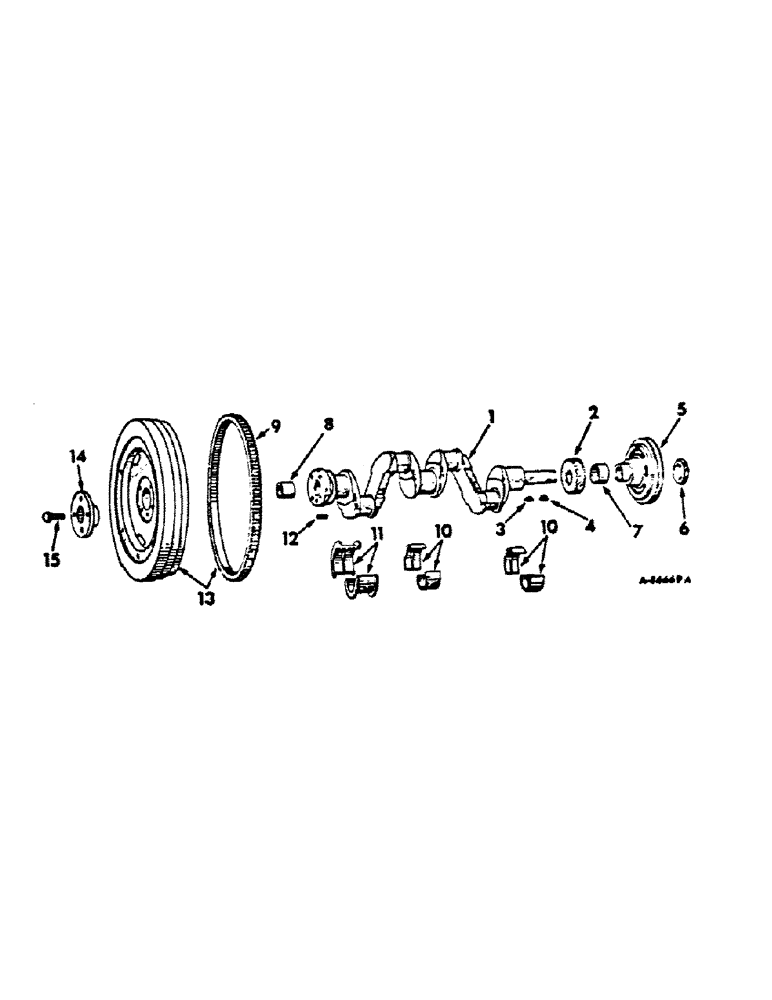

Запчасти Case IH C-146 (D-11) - CRANKCASE, FLYWHEEL AND BEARINGS

1

375795R91

CRANKCASE ASSEMBLY, standard, consists of (4) bearing 375723R11, (2) bearing 375755R11, (1) bearing 375762R11, (1) bushing 364527R2, (1) crankshaft (NSS), (1) pin 24550D

1шт.

2

46870DA

PINION

crankshaft, 33 teeth

1шт.

3

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1/4 x 3/4 Woodruff 91, crankshaft pinion

1шт.

4

218211

DRIVING SPROCKET

1/4 x 3/4 Woodruff 91, fan drive, pulley

1шт.

5

368665R3

PULLEY

fan drive

1шт.

6

V84199

NUT,1"-14, Thin

crankshaft

1шт.

7

NSS

NOT SOLD SEPARAT

RING, oil seal wear, not serviced separately, order oil seal order oil seal assembly, 378193R91

1шт.

8

ST553

BEARING, BALL,20mm ID x 47mm OD x 14mm W

BEARING, clutch pilot, 424 tractors

1шт.

9

13456VA

GEAR

flywheel ring, 112 teeth, 500 crawler tractor, 660, 770 and 780 hi-clear sprayers

1шт.

9

367042R1

GEAR

flywheel ring, 424 tractors

1шт.

10

375755R11

BEARING SET

BEARING ASSEMBLY, crankshaft front and center, 2 halves, standard

2шт.

10

375757R11

KIT

BEARING ASSEMBLY, crankshaft front and center, 2 halves, .002 undersize

2шт.

10

376660R11

KIT

BEARING ASSEMBLY, crankshaft front and center, 2 halves, .010 undersize

2шт.

10

376663R11

BEARING ASSY

ASSEMBLY, crankshaft front and center, 2 halves, .020 undersize

2шт.

10

375756R11

CRANKSHAFT BEARING

BEARING ASSEMBLY, crankshaft front and center, 2 halves, .030 undersize

2шт.

11

375762R11

BEARING SET

BEARING ASSEMBLY, crankshaft rear, 2 halves, standard

1шт.

11

375764R11

BEARING ASSY

BEARING ASSEMBLY, crankshaft rear, 2 halves, .002 undersize

1шт.

11

376661R11

BEARING ASSY

ASSEMBLY, crankshaft rear, 2 halves, .010 undersize

1шт.

11

376664R11

BEARING ASSY

BEARING ASSEMBLY, crankshaft rear, 2 halves, .020 undersize

1шт.

11

375763R11

BEARING ASSY

BEARING ASSEMBLY, crankshaft rear, 2 halves, .030 undersize

1шт.

12

24550D

PIN

flywheel dowel

1шт.

13

385673R11

FLYWHEEL ASSEMBLY, 660, 770 and 780 hi-clear sprayers

1шт.

13

388577R11

FLYWHEEL

ASSEMBLY, 424 tractors

1шт.

13

653093R11

FLYWHEEL ASSEMBLY, single stage clutch w/std or torque amplifier transmission, 500 crawler tractors

1шт.

13

635094R11

FLYWHEEL ASSEMBLY, dual stage clutch w/constant running PTO, 500 crawler tractors

1шт.

13

675557R11

FLYWHEEL ASSEMBLY, w/power shift reverser, 500 crawler tractors

1шт.

14

395167R1

ADAPTER, PTO shaft, 660, 770 and 780 hi-clear sprayers

1шт.

15

118977R1

BOLT, flywheel, 660, 770 and 780 hi-clear sprayers

4шт.

15

251272R1

BOLT

flywheel, 424 tractors

4шт.

15

635004R1

SCREW

BOLT, flywheel, 500 crawler tractors

4шт.

15

20692R1

BOLT (SPREADER),Hex, 3/8" - 24 x 2", Gr 8

BOLT, 3/8-24 X 2 type 2, 500 crawler

4шт.

46349D

LOCK

flywheel bolt, 424 tractors, 660, 770 and 780 hi-clear sprayers

2шт.

614723

HANDLE

LOCK, flywheel bolt, 500 crawler tractors

2шт.
