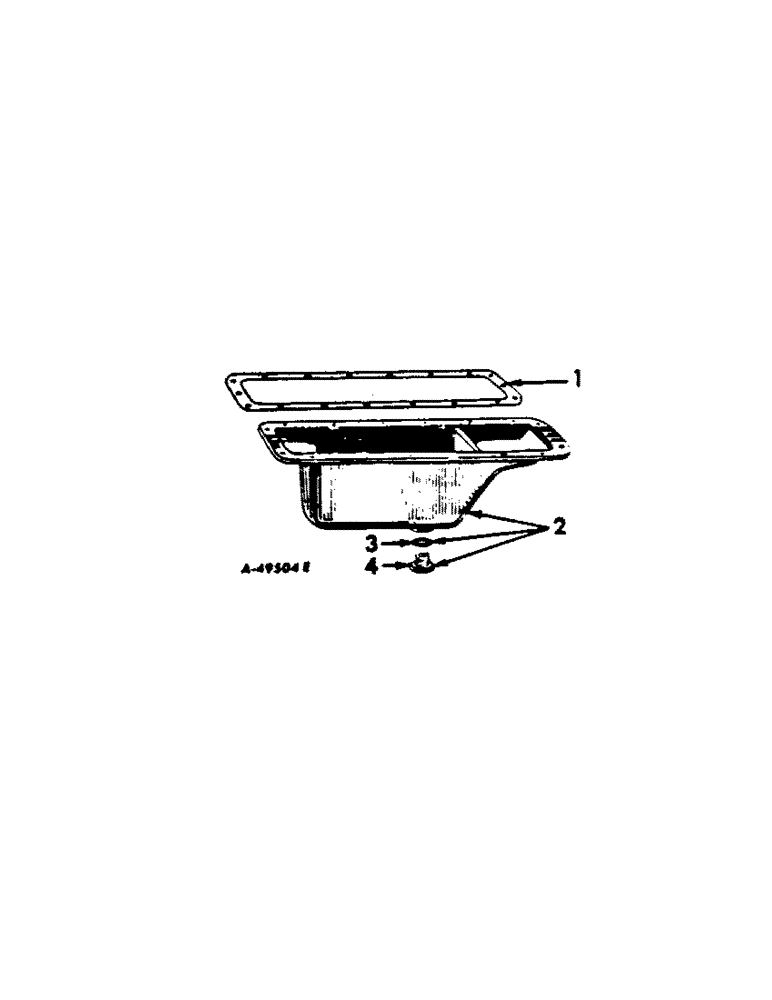

Запчасти Case IH C-146 (D-10[A]) - CRANKCASE OIL PAN

1

43458DB

GASKET

oil pan

1шт.

2

372145R92

PAN

ASSEMBLY, crankcase oil

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

14шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

18шт.

3

3405H

GASKET

crankcase oil pan drain plug

1шт.

4

445096

PLUG

7/8-18 hex-hd outside drain, crankcase oil pan drain

1шт.
