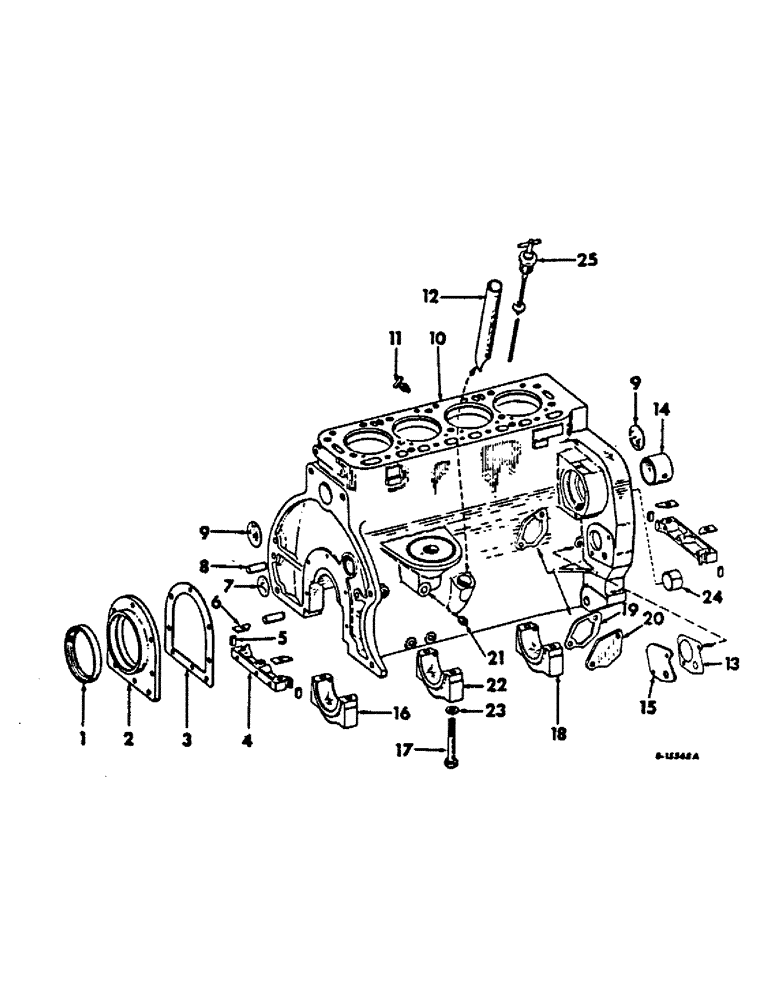

Запчасти Case IH C-146 (D-09) - CRANKCASE AND RELATED PARTS

1

378040R91

PACKING RING

SEAL, crankshaft rear oil

1шт.

2

377996R2

HUB

RETAINER, crankshaft rear oil seal

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

3

377997R1

GASKET

crankshaft rear oil seal retainer

1шт.

4

6100DA

SUPPORT ASSY.

PLATE, crankshaft front and rear oil seal retainer

2шт.

5

43445DA

PAD

PLUG, crankshaft oil seal retainer plate felt

4шт.

6

43446DA

GASKET,1.29mm Thk

crankshaft oil seal retainer plate

4шт.

7

172576

PLUG,Exp, 1 5/8"

1-5/8 expansion, camshaft rear

1шт.

8

46923D

PIN

DOWEL, clutch housing

2шт.

9

63556R1

PLUG

2 in. expansion, crankshaft core

1шт.

10

405162R91

CRANKCASE

ASSEMBLY, 500, 500C crawler tractors, 660, 770 and 780 hi-clear sprayers

1шт.

Consists of (6) bolt 70133R1, (1) bushing 43439DBR, (1) bushing 375747R1, (2) cap (NSS), (1) cap (NSS), (1) connector 539968R1, (1) crankcase 379171R3 (NSS), (1) dowel 46923D, (5) plug 22263R1, (2) plug 444654, (1) plug 444574, (1) plug 172576, (1) plug 63556R1, (2) plug 444687, (4) piston (NSS), (4) pin 367797R1, (4) ring 359657R1, (4) ring 375810R1, (4) ring 402264R1, (1) sleeve 368985R2, (8) spring 367798R1, (6) washer 58516H

1шт.

444654

PLUG,Sq Soc, 1/4"-18 NPTF

1/4 sq-soc pipe

3шт.

22263R1

PLUG

core hole

5шт.

444687

PLUG,Hex Soc, 1/8"-27

Oil header Hex Soc, 1/8"-27

2шт.

10

388575R31

CRANKCASE ASSEMBLY, 424 tractors

1шт.

Consists of (6) bolt 70133R1, (1) bushing 43439DBR, (1) bushing 375747R1, (2) cap (NSS), (1) cap (NSS), (1) cock 103647, (1) connector 539968R1, (1) crankcase 388575R3 (NSS), (1) dowel 357232R1, (5) plug 22263R1, (3) plug 143997, (1) plug 172576, (1) plug 63556R1, (2) plug 444687, (1) sleeve 368985R2, (6) washer 58516H

1шт.

143997

PLUG

1/4 sq-soc pipe

3шт.

22263R1

PLUG

core hole

5шт.

444687

PLUG,Hex Soc, 1/8"-27

Oil header Hex Soc, 1/8"-27

2шт.

11

103647

VALVE

COCK, 1/4 type C water drain, 660, 770 and 780 hi-clear sprayers

1шт.

12

368985R2

TUBE

SLEEVE, oil level gage, all machines except 500C crawler tractors

1шт.

12

405198R1

SLEEVE, oil level gage, 500C crawler tractors

1шт.

13

350708R1

GASKET

hyd pump pad cover, 500, 500C crawler tractors, 660, 770 and 780 hi-clear sprayers

1шт.

14

43439DBR

BUSHING,50.77mm ID x 54.15mm OD x 33.34mm L

distributor gear

1шт.

15

251067R1

COVER

hyd pump pad, 500, 550C crawler tractors, 660, 770 and 780 hi-clear sprayers

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

NSS

NOT SOLD SEPARAT

CAP, crankshaft rear bearing, not serviced separately, order crankcase assembly

1шт.

17

70133R1

BOLT

BOLT, crankshaft bearing cap

6шт.

18

NSS

NOT SOLD SEPARAT

CAP, crankshaft front bearing, not serviced separately, order crankcase assembly

1шт.

19

49124D

GASKET

fuel pump opening cover, 500, 500C crawler tractors, 660, 770 and 780 hi-clear sprayers

1шт.

20

29710D

COVER

fuel pump opening, 500, 500C crawler tractors, 660, 770 and 780 hi-clear sprayers

1шт.

179814

SPACER

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4 sq-hd pipe

1шт.

22

NSS

NOT SOLD SEPARAT

CAP, crankshaft center bearing, not serviced separately, order crankcase assembly

1шт.

23

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

crankshaft bearing cap bolt

6шт.

24

375747R1

BUSHING,46.19mm ID x 49.45mm OD x 30.43mm L

camshaft front

1шт.

25

375792R91

GAUGE

ASSEMBLY, oil level, all machines except 500C crawler tractors

1шт.

25

405199R1

GAUGE ASSY, oil lever, 500C crawler tractors

1шт.
