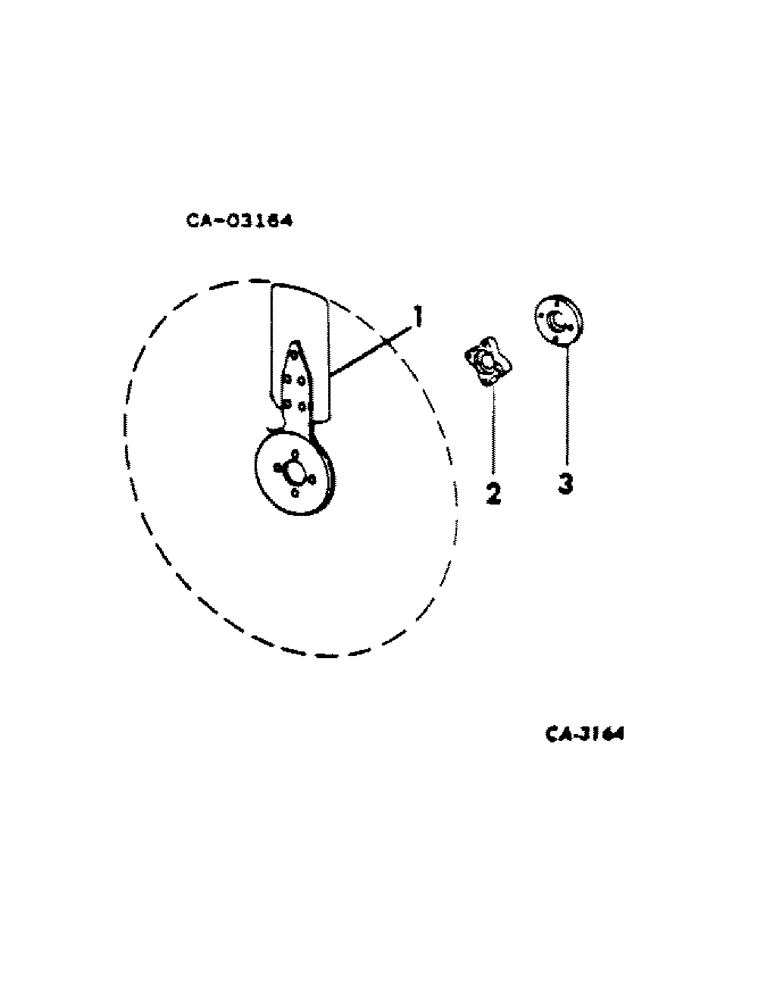

Запчасти Case IH C-146 (D-08) - FAN BLADES AND SPACERS, BELTS

1

377049R91

FAN

BLADE ASSY, fan, 424, 2424 tractors, 660, 770 and 780 hi-clear sprayers

1шт.

181309

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, 1/4-28 x 1/2 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

1

706749R91

FAN

BLADE ASSY, fan, 500 and 500C crawler tractors

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

1

675757R91

BLADE ASSY, blower fan, 500 and 500C crawler tractors

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

1

370700R91

BLADE

ASSY, suction fan, 500C crawler tractors

1шт.

181573

SCREW,Hex, 1/4" - 28 x 1 1/4"

1/4 x 1-1/4 type 2

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

1

677775R91

BLADE ASSY, blower fan, 500C crawler tractors

1шт.

181573

SCREW,Hex, 1/4" - 28 x 1 1/4"

1/4 x 1-1/4 type 2

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

(Not used this application)

1шт.

3

675530R1

SPACER, fan, 500 and 500C crawler tractors

1шт.

3

677778R1

SPACER, fan, 500C crawler tractors

1шт.

403580R1

V-BELT,0.42" W x 43.30" L

Fan, generator and water pump, 424, 2424 tractors, 660, 770 780 hi-clear sprayers 0.42" W x 43.30" L

1шт.

68386C1

V-BELT,0.38" W x 42.75" L

Fan, Generator and Water Pump, Cog Type, 424, 2424 Tractors, 660, 770 and 780 Hi-Clear Sprayers 0.38" W x 42.75" L

1шт.

676654R1

BELT, fan and generator drive, 500 and 500C crawler tractors

1шт.

596313R1

V-BELT,0.38" W x 44.50" L

Fan and generator drive, 500C crawler tractors 0.38" W x 44.50" L

1шт.
