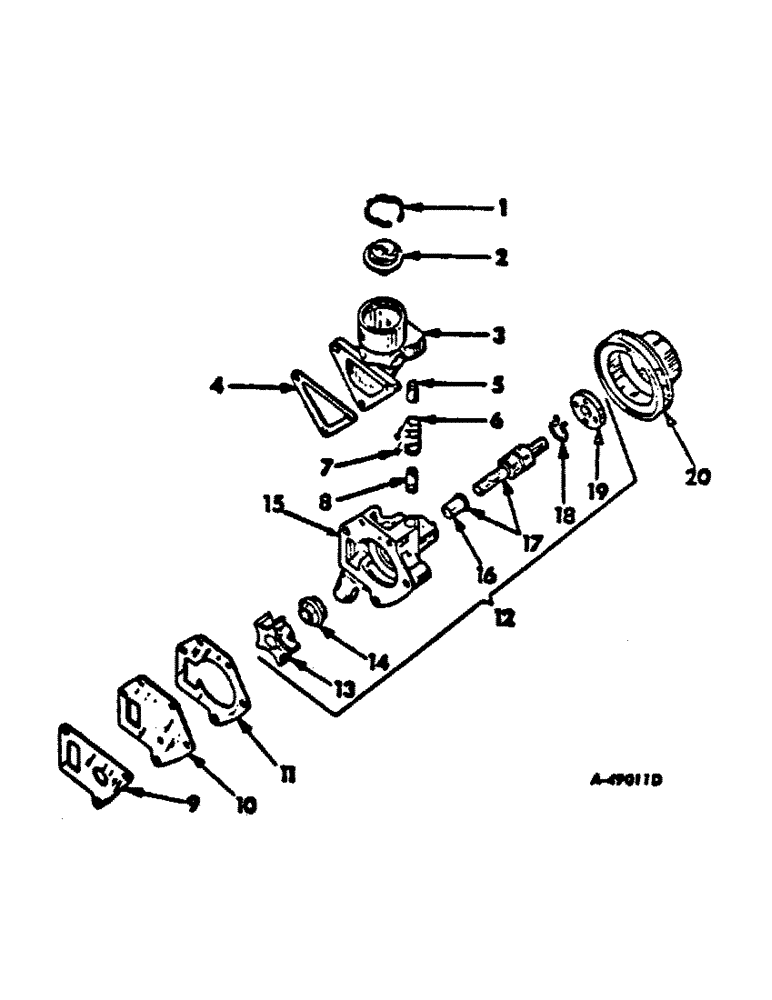

Запчасти Case IH C-146 (D-07) - THERMOSTAT AND WATER PUMP
№
Артикул
Название
Примечание
Количество
1
257441R2
SEGMENT
RING, thermostat retainer
1шт.
2
369322R91
THERMOSTAT
180 deg opening
1шт.
3
367679R1
ELBOW
water outlet
1шт.
NLS
NO LONGER SERVICED
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
4
43294D
GASKET
water outlet elbow
1шт.
5
367680R1
FITTING
PIPE, upper by-pass
1шт.
6
367681R1
HOSE
by-pass pipe, all machines except 500C crawler tractors
1шт.
6
394605R1
HOSE, by-pass pipe, 500C crawler tractors
1шт.
7
375061R91
CLAMP
by-pass pipe hose
2шт.
8
368556R1
FITTING
PIPE, lower by-pass
1шт.
9
375745R1
GASKET
water pump plate
1шт.
10
368559R1
SUPPORT
PLATE, water pump, all machines except 500C crawler tractors
1шт.
10
375744R1
SUPPORT
PLATE, water pump, 500C crawler tractors
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
11
367687R1
GASKET
water pump body, all machines except 500C crawler tractors
1шт.
11
375743R1
GASKET
water pump body, 500C crawler tractors
1шт.
12
375793R92
PUMP
ASSEMBLY, water, all machines except 500C crawler tractors
1шт.
375793R92R
REMAN-WATER PUMP
C-146
1шт.
375793R92C
CORE-WATER PUMP
Return Number
1шт.
179842
SPACER
3/8-16 x 1-3/8 hex-hd cap
1шт.
179847
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
186278
BOLT
SCREW, 3/8-16 x 2-5/8 hex-hd cap
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
12
375742R92
PUMP
ASSY, water, 500C crawler tractors
1шт.
445673
PIPE PLUG,Sq Hd, 3/8"-18 NPTF
PLUG, 3/8-18 auto sq-hd pipe
1шт.
13
367689R1
IMPELLER
water pump
1шт.
14
73296R93
SEAL
ASSEMBLY, water pump
1шт.
15
NSS
NOT SOLD SEPARAT
BODY, not serviced separately, order water pump assy
1шт.
16
71351R1
SLINGER
water pump
1шт.
17
ST644
SHAFT
BEARING W/SHAFT, water pump
1шт.
18
102069H
RING
front snap
1шт.
19
368501R2
HUB CAP
HUB, pulley
1шт.
REF 19 - 368501R2 HUB IS NOT PART OF WATER PUMP ASSY (PER PRINT).
1шт.
20
367688R1
PULLEY
water pump
1шт.
Выбрано товаров: 36
