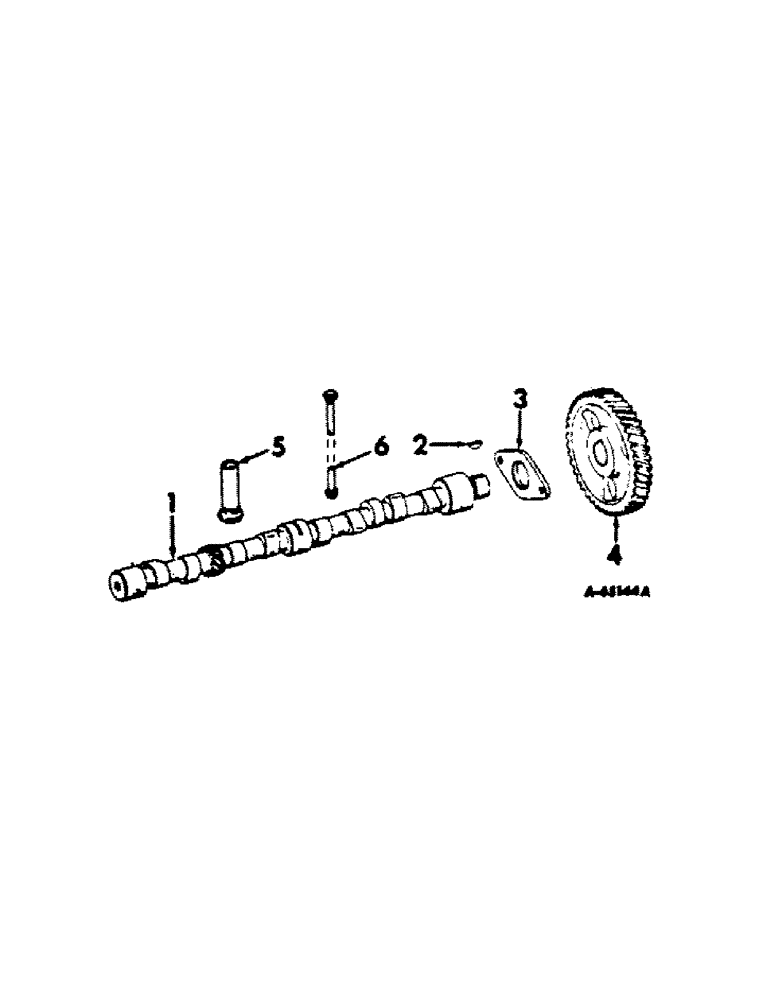

Запчасти Case IH C-135 (C-05) - CAMSHAFT, CAMSHAFT GEAR AND RELATED PARTS

1

353609R31

CAMSHAFT

PACKAGE, camshaft w/product graphic valve setting 2751251R1

1шт.

2

127559

TAPE

1/4 x 3/4 woodruff 91

1шт.

3

43249D

PLATE

camshaft thrust, optional w/374704R1

1шт.

3

374704R1

PLATE ASSY.

PLATE, camshaft thrust, optional w/43249D

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

375712R1

GEAR

camshaft, 66T

1шт.

5

47384D

TAPPET

valve, optional w/356979R1

8шт.

5

356979R1

TAPPET

valve, optional w/47384D

8шт.

6

357548R1

ROD

valve push, optional w/360213R91

8шт.

6

360213R91

ROD

valve push, optional w/357548R1

8шт.
