Запчасти Case IH C-135 (B-48) - KIT GASKET

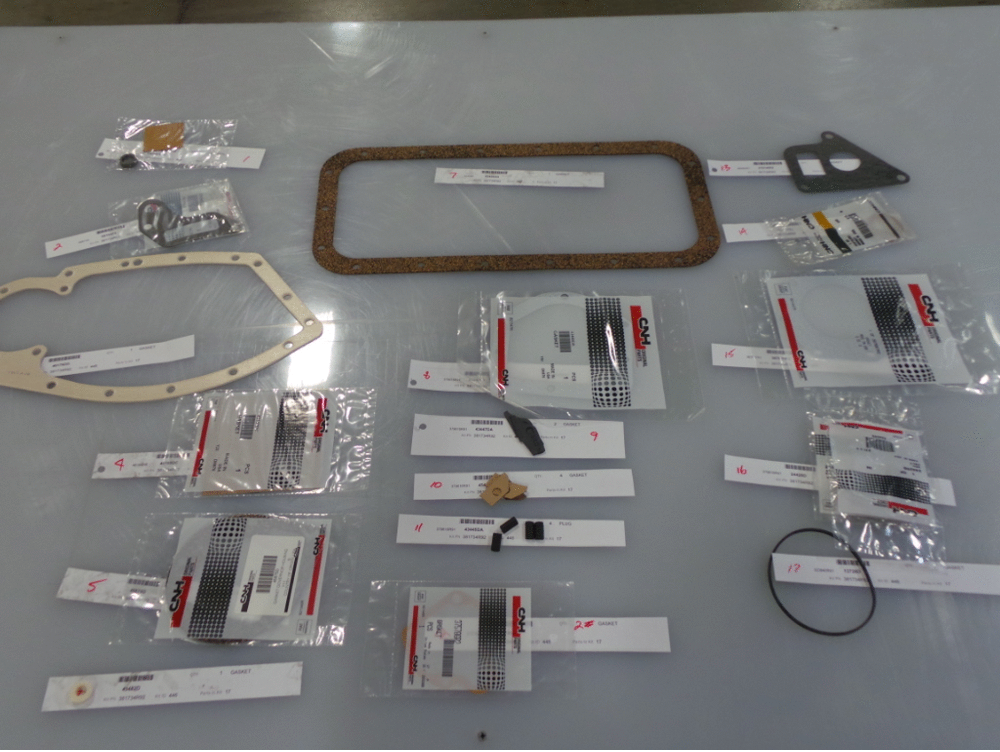

Схема запчастей Case IH C-135 - (B-48) - KIT GASKET

Артикул

Название

Примечание

Количество

1

381734R92

GASKET KIT

Incl 2 - 18

2шт.

2

149345R91

OIL SEAL

Seal Gove

1шт.

3

13728D

GASKET

1шт.

4

375786R2

GASKET

Oil Pump Body Cover

2шт.

5

46168DC

GASKET

Magneto Flange Basket

1шт.

6

43482D

SEAL,9.53mm ID x 18.26mm OD x 5.56mm Thk

Governor Speed Change Lever Seal

1шт.

7

368153R1

GASKET

1шт.

8

45875D

GASKET

Governor Housing

1шт.

9

43458DD

GASKET

Crankcase

1шт.

10

24425D

OIL SEAL,24.61mm ID x 50.01mm OD x 4.76mm Thk

Crankcase Rear Oil

2шт.

11

43448DA

GASKET

Crankcase Rear Oil Seal

1шт.

12

43446DA

GASKET,1.29mm Thk

Front and Rear

4шт.

13

43447DA

GASKET,1.29mm Thk

Center Crankcase Rear Oil Seal

2шт.

14

43445DA

PAD

Oil Plug

4шт.

15

46179DD

GASKET

Crankcase Front Cover

1шт.

16

68104C2

GASKET

Alt Mtg. Bracket

1шт.

17

375745R2

GASKET

Water Pump Body

1шт.

18

367687R2

GASKET

Water Pump Body

1шт.

Выбрано товаров: 18
