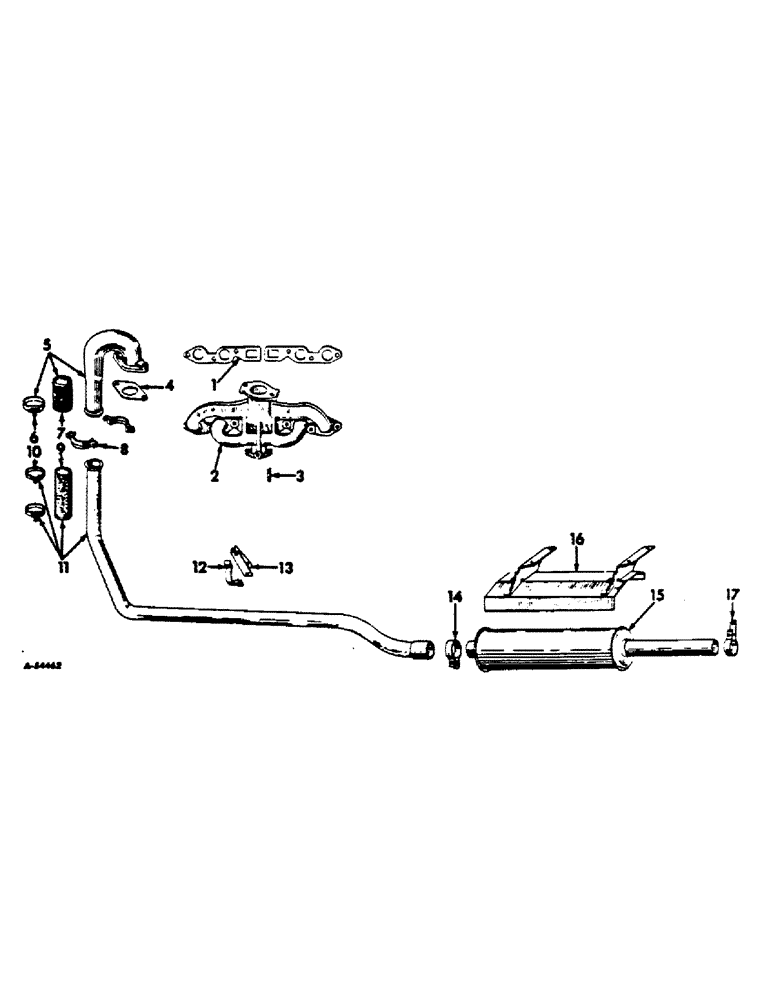

Запчасти Case IH C-135 (C-37) - EXHAUST SYSTEM, UNDERSLUNG, INTERNATIONAL 404 TRACTORS

1

352014R3

GASKET

manifold

2шт.

2

369645R22

MANIFOLD ASSY, intake and exhaust, gasoline engine tractors

1шт.

2

372262R11

MANIFOLD ASSY, intake and exhaust, LP gas tractors

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

6шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto-sq-hd pipe, optional w/445684

1шт.

445684

PLUG

1/8-27 auto-sq-hd pipe, optional w/445671

1шт.

3

50705D

STUD

, Serial Range: carburetor-manifold

2шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

4

368482R1

GASKET

exhaust pipe elbow

1шт.

5

372836R91

ELBOW

ASSY, exhaust pipe

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

46364H

CLAMP

exhaust pipe elbow tape

1шт.

7

372835R1

TAPE, exhaust pipe elbow

1шт.

8

362300R1

CLAMP

exhaust pipe elbow

2шт.

120376

NUT,5/16"-18, G5

2шт.

180084

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

SCREW, 5/16-18 x 1-5/8 hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

370639R1

TAPE

exhaust pipe

1шт.

10

29979D

CLAMP

exhaust pipe tape

2шт.

11

375605R11

PIPE

ASSY, exhaust

1шт.

12

369838R1

CLAMP

exhaust pipe support

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

369837R11

BRACKET ASSY, exhaust pipe support

1шт.

14

48889DA

CLAMP

exhaust muffler front support

1шт.

102635

NUT,3/8"-16, G5

3/8-24 hex.

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

SCREW, 3/8-24 x 1-1/2 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

360720R91

MUFFLER

exhaust

1шт.

16

360842R11

SHIELD ASSY, muffler

1шт.

NUT, 1/4-20 hex.

4шт.

157715

SCREW, 1/4-20 x 1/2 cr-rec-truss-hd mach

4шт.

17

369839R1

CLAMP

exhaust muffler rear support

1шт.

102635

NUT,3/8"-16, G5

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

SCREW, 3/8-16 x 3-3/4 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

61252H

WASHER

15/32 x 3/4 x 11 ga

1шт.
