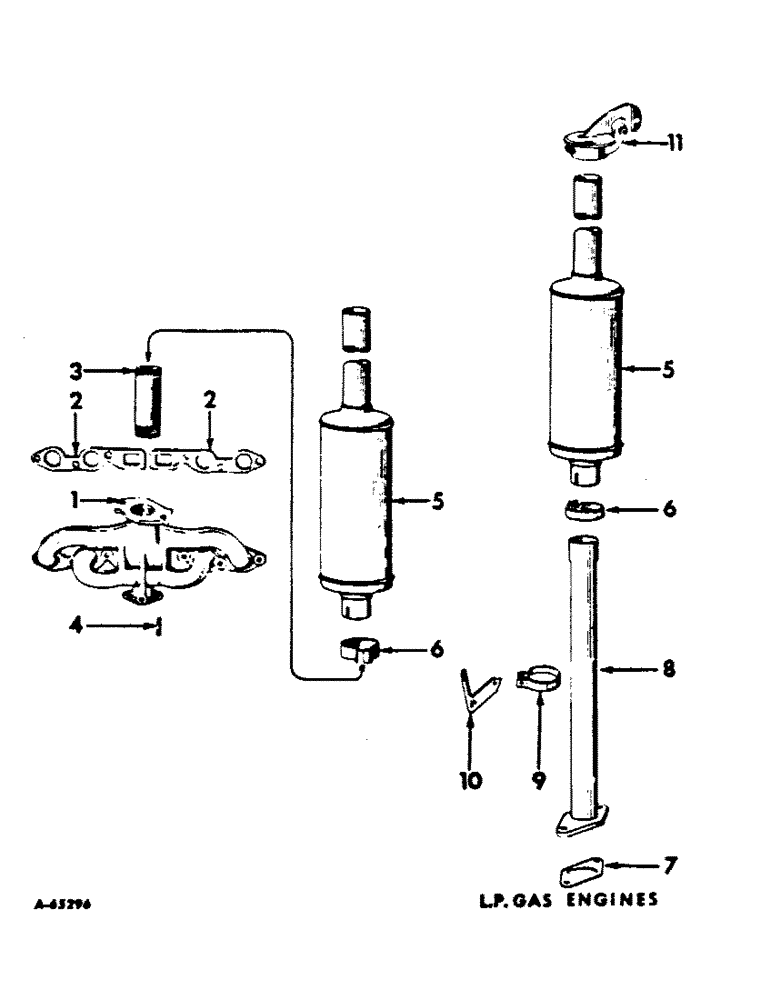

Запчасти Case IH C-135 (C-36) - EXHAUST SYSTEM, VERTICAL, 404 TRACTORS

1

372262R11

MANIFOLD ASSY, intake and exhaust, LP gas tractors

1шт.

1

369645R22

MANIFOLD ASSY, intake and exhaust, gasoline engine tractors

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

6шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto-sq-hd pipe, optional w/445684

1шт.

445684

PLUG

1/8-27 auto-sq-hd pipe, optional w/445671

1шт.

251176R1

NUT

manifold to cylinder head

6шт.

2

352014R3

GASKET

manifold

2шт.

3

383007R1

PIPE

exhaust

1шт.

4

50705D

STUD

carburetor

2шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

5

360720R91

MUFFLER

exhaust

1шт.

6

48889DA

CLAMP

exhaust muffler

1шт.

93082H

NUT

3/8-24 hex.

1шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, 3/8-24 x 1-1/2 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

368482R1

GASKET

exhaust pipe

1шт.

8

375606R11

PIPE ASSY, exhaust

1шт.

NLS

NO LONGER SERVICED

2шт.

9

62838HA

CLAMP

exhaust pipe bracket, International tractors

1шт.

102635

NUT,3/8"-16, G5

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

377706R1

BRACKET, exhaust pipe, International tractors

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

179872

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

SCREW, 7/16-14 x 3-1/2 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

95-11041

WASHER,3/8"

13/32 x 13/16 x 16 ga

1шт.

11

265927R91

CAP

ASSY, exhaust

1шт.
