Запчасти Case IH C-135 (C-32) - OIL PUMP AND RELATED PARTS

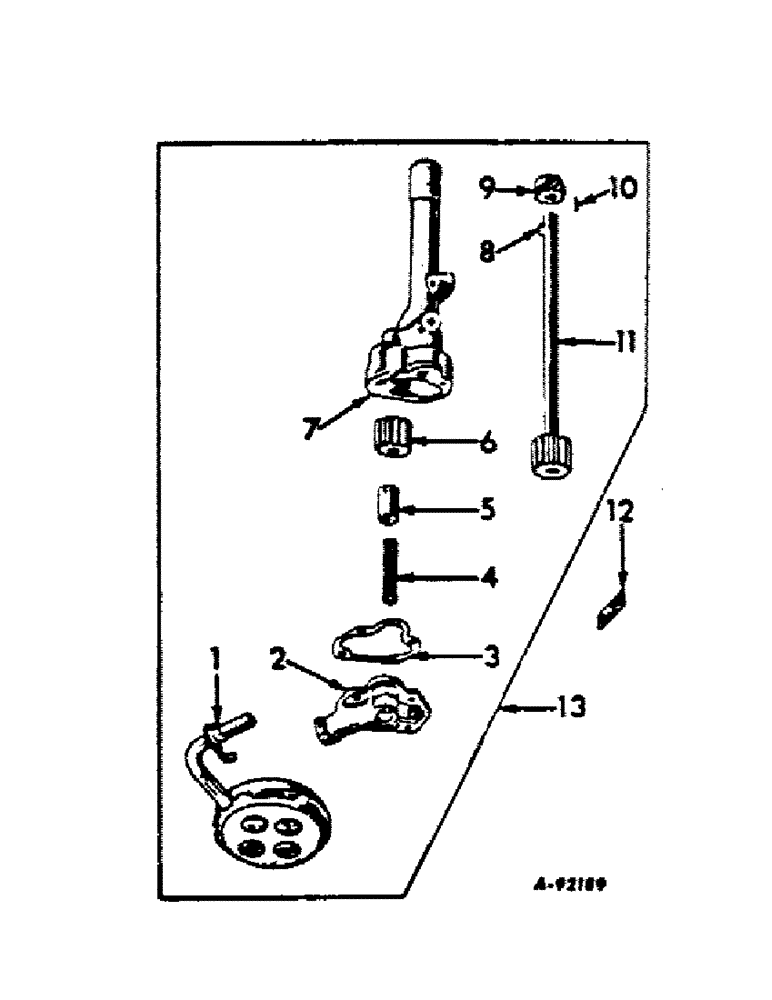

Схема запчастей Case IH C-135 - (C-32) - OIL PUMP AND RELATED PARTS
10
4
7
11
12
9
3
2
6
13
8
1
5

Артикул

Название

Примечание

Количество

1

368979R91

SCREEN

oil pump

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

2

6098DA

OIL RESERVOIR

COVER, oil pump

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

375786R1

GASKET

oil pump body cover

1шт.

4

43414DA

VALVE SPRING

SPRING, oil pressure

1шт.

5

357648R1

LOCK VALVE

VALVE, oil pressure

1шт.

6

227713R1

GEAR WHEEL

GEAR, oil pump idler

1шт.

7

35647H

SHAFT

oil pump idler

1шт.

8

NLS

NO LONGER SERVICED

1/8 x 5/8 Woodruff 5

1шт.

9

652057R1

GEAR, oil pump shaft spriral

1шт.

10

112011

PIN,1/8" x 7/8"

1/8 x 7/8 sq-end str

1шт.

11

375789R91

SHAFT

GEAR AND SHAFT ASSY, oil pump

1шт.

12

46629D

LOCK

oil pump screw

1шт.

13

375785R91

PUMP

ASSY, oil

1шт.

re it no. 13 - 375785r91 does not come with it no. 1 screen. ph-cam 7-20-98

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/81-16 x 1-3/4 hex-hd cap

2шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 sq-hd-pipe ci, optional with 445684

1шт.

445684

PLUG

1/8-27 aq-hd pipe stl, optional with 455671

1шт.

Выбрано товаров: 20
