Запчасти Case IH C-135 (C-31) - GOVERNOR AND CONNECTIONS

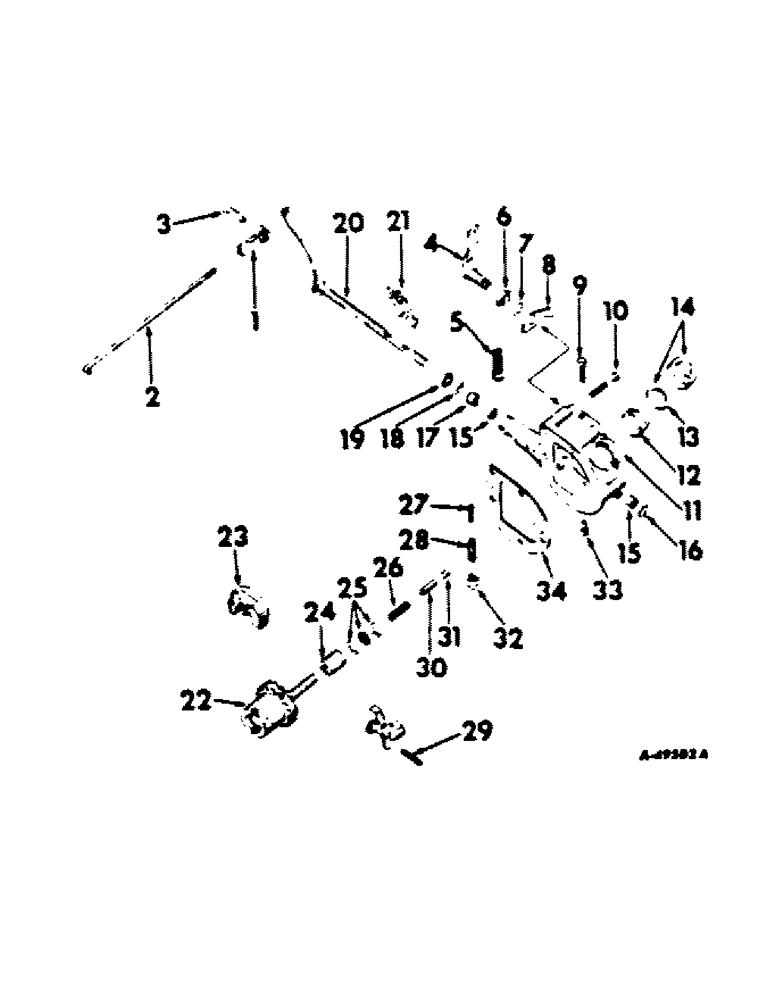

Схема запчастей Case IH C-135 - (C-31) - GOVERNOR AND CONNECTIONS
4
1
6
27
14
8
20
11
32
30
13
9
33
28
31
18
19
12
23
16
2
25
15
10
5
34
15
21
22
29
24
17
26
3
7

Артикул

Название

Примечание

Количество

1

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4-28 adj rod end, governor connecting rod

1шт.

2

315716R1

ROD

governor connecting, T-5, TC-5 crawler tractors and 201 windrowers

1шт.

2

367712R1

ROD, governor connecting, T-340 tractors w/engine serial no., Serial Range: 11391-100500

1шт.

2

375780R1

ROD

governor connecting, 404 tractors and T-340A crawler tractors w/engine serial no. 100501 and above

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex.

1шт.

137130

PIN

1/16 x 7/16 cot.

1шт.

3

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64 rod end

1шт.

137130

PIN

1/16 x 7/16 cot.

1шт.

4

46947DAXB

LEVER

ASSY, governor speed change

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 ext-tooth lock

1шт.

5

369686R2

SPRING

governor, T-5, TC-5 T-340A crawler tractors and 201 windrowers

1шт.

5

46944DA

SPRING

governor, 404 tractors

1шт.

6

149345R91

OIL SEAL

SEAL, governor speed change shaft oil

1шт.

7

151341R1

WASHER

governor spring lever, optional with 17081H

2шт.

17081H

WASHER

33/64 x 3/4 x .065, optional with 151341R1

2шт.

8

51491DA

LEVER

governor spring

1шт.

9

357432R3

BOLT

STOP, governor speed change lever

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

10

179827

FRONT AXLE

Governor housing Hex, 5/16"-18 x 2 1/4", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

367706R11

HOUSING ASSY, governor, machines w/engine serial no. 100500 and below, consists of (2) bearing 45753D, (1) bushing 46939D, (1) housing (NSS), (1) neck 368564R1, (1) pin 49220D, (1) pin 46942D, (1) plug 172531

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

1шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

11

6340DBX

HOUSING

ASSY, governor, machines w/engine serial no. 100501 and above, consists of (2) bearing 45753D, (1) bushing 46939D, (1) housing (NSS), (1) pin 49220D, (1) pin 46942D, (1) plug 172531

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

1шт.

179827

FRONT AXLE

2шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

12

368564R1

NECK, oil filler, machines w/engine serial no. 100500 and below

1шт.

13

368153R1

GASKET

oil filler cap, machines w/engine serial no. 100500 and below

1шт.

14

367857R91

CAP

ASSY, oil filler, machines w/engine serial no. 100500 and below

1шт.

15

45753D

BEARING, NEEDLE,Needle, 9.51mm ID x 15.89mm OD x 12.7mm W

BEARING, governor rockshaft

2шт.

16

172531

PLUG,Exp, 3/4"

3/4 expansion

1шт.

17

46939D

BUSHING,9.59mm ID x 19.13mm OD x 11.11mm L

governor rockshaft

1шт.

18

43482D

SEAL,9.53mm ID x 18.26mm OD x 5.56mm Thk

SEAL, governor rockshaft

1шт.

19

43483D

SEAL RETAINER

RETAINER, governor rockshaft seal

1шт.

20

367709R11

ROCKSHAFT

governor

1шт.

21

367711R1

FORK

governor rockshaft

1шт.

131970

SCREW,Sl Fil Hd, #8 - 32 x 1/2"

no. 8-32 x 1/2 slt-rd-hd mach

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

22

375778R11

GEAR

PINION ASSY, governor

1шт.

23

374710R1

WEIGHT

governor

2шт.

23

351891R1

WEIGHT

governor, 404 tractors

2шт.

24

49325D

BUSHING

SLEEVE, governor thrust, optional with 363866R1

1шт.

24

363866R1

BUSHING,12.83mm ID x 23.81mm OD x 27.51mm L

SLEEVE, governor thrust, optional with 49325D

1шт.

25

43481D

BEARING ASSY,12.8mm ID x 23.81mm OD x 10.19mm W

BEARING, governor thrust ball

1шт.

26

49218DA

SPRING

governor shaft bumper

1шт.

27

28078D

VALVE SPRING

SPRING, governor bumper

1шт.

28

31804DA

BODY

governor bumper spring

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

29

46924D

PIN

governor weight

2шт.

108628

PIN

1/16 x 7/8 cot.

2шт.

30

49219DA

AXLE PIN,4.78mm OD x 26.99mm L

PIN, governor shaft bumper

1шт.

31

49220D

STOP

PIN, governor shaft stop

1шт.

32

NLS

NO LONGER SERVICED

7/16-20 low crown

1шт.

33

46942D

AXLE PIN,5.56mm OD x 18.26mm L

PIN, governor rockshaft lever retainer

1шт.

34

45875D

GASKET

governor housing

1шт.

Выбрано товаров: 60
