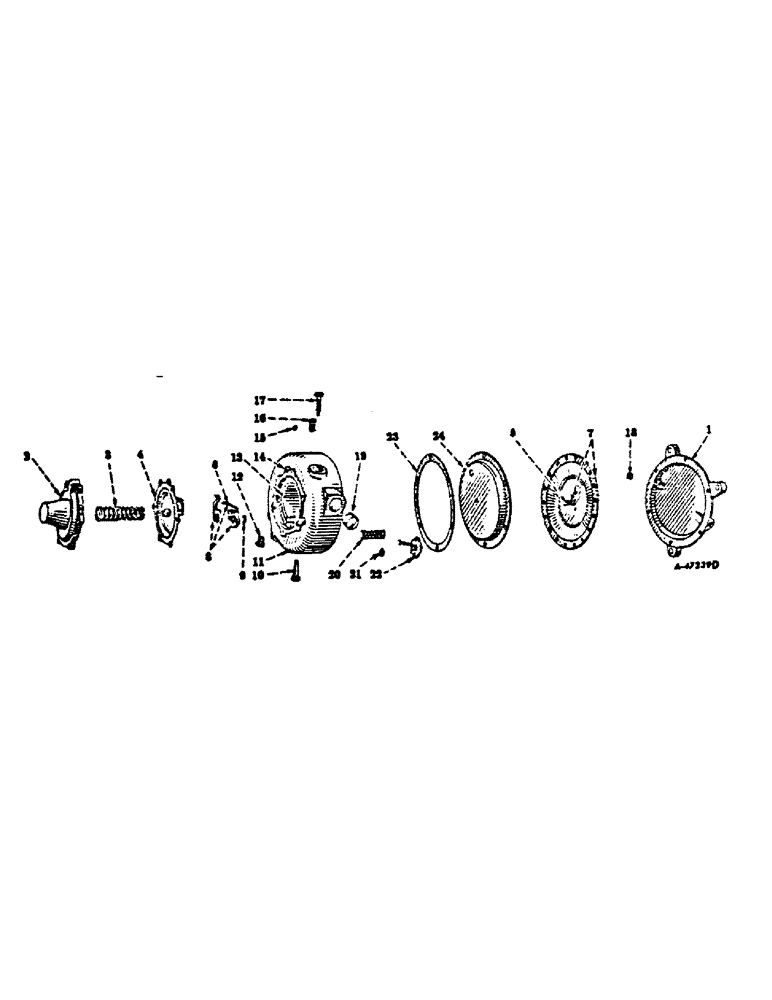

Запчасти Case IH C-135 (C-30) - FUEL REGULATOR, FARMALL AND INTERNATIONAL 404 TRACTORS W/LP GAS ENGINES

1

311997R1

PLATE, back cover support

1шт.

174939

SCREW, no. 10-32 x 9/16 fil-hd sltd

6шт.

131183

WASHER, no. 10 light lock

6шт.

2

394668R1

COVER, pressure regulator, replaces 644090

1шт.

174939

SCREW, no. 10-32 x 9/16 fil-hd sltd

6шт.

131183

WASHER, no. 10 light lock

6шт.

3

64410D

SPRING, pressure regulator

1шт.

4

64407D

DIAPHRAGM

pressure regulator

1шт.

5

(Not used in this application)

1шт.

6

(Discontinued for service)

1шт.

7

(Not used in this application)

1шт.

8

(Discontinued for service)

1шт.

17093R91

SCREW W/LOCKWASHER, no. 8-32 x 1/2 CDP sltd-fil-hd mach

2шт.

9

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, High pressure valve

1шт.

10

113434R91

STRAINER, fuel inlet

1шт.

11

368476R91

PLUG W/WASHER ASSY, 11/16 expansion

2шт.

12

444814

PLUG,Hex Hd, 1/8"-27, Brass

1/8 brass hex-hd pipe

1шт.

13

(Discontinued for service)

1шт.

14

(Discontinued for service)

1шт.

15

64435D

SCREW, B, bleed

1шт.

16

14526D

RETAINER, idle adjusting screw

1шт.

17

37179D

SCREW, idle adjusting

1шт.

18

(Not used in this application)

1шт.

19

115712

PLUG,Slotted, 1/2" NPT

1/2 brass slt-hd pipe

2шт.

20

64420D

SPRING, low pressure valve

1шт.

21

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Low pressue valve

1шт.

22

(Discontinued for service)

1шт.

17093R91

SCREW W/LOCKWASHER, no. 8 x 1/2 CDP slt-fil-hd mach

2шт.

23

359604R1

GASKET, partition plate

1шт.

24

359603R1

PLATE, partition

1шт.

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1/8 slotted-hdls pipe

1шт.

373173R1

SNAP RING,0.812", Int, #81

Ring, Snap, 0.812", Int, #81

1шт.
