Запчасти Case IH C-135 (C-28) - CARBURETOR, 404 TRACTORS W/LP GAS ENGINES

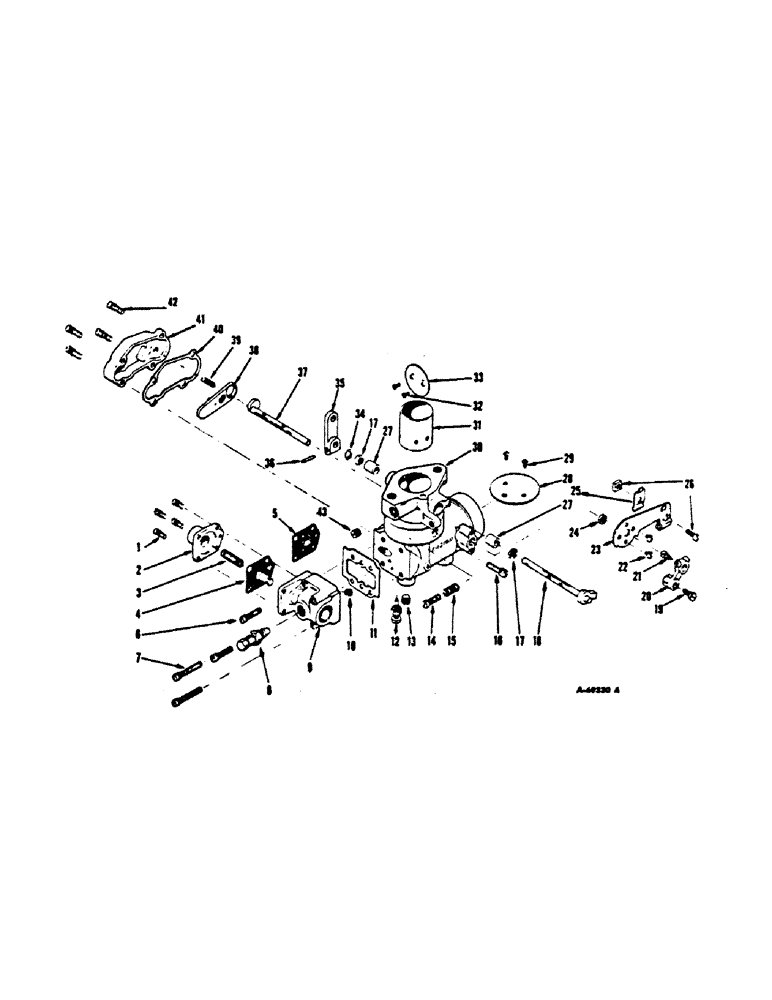

Схема запчастей Case IH C-135 - (C-28) - CARBURETOR, 404 TRACTORS W/LP GAS ENGINES
19
9
8
2
38
22
5
42
34
7
27
15
18
29
39
1
13
35
32
14
23
20
41
25
36
16
12
3
6
43
33
37
10
4
21
11
27
30
17
40
24
17
26
31
28

№

Артикул

Название

Примечание

Количество

CARBURETOR ASSY, discontinued for service

1шт.

1

451633

SCREW AND LOCK WASHER ASSEMBLY, no. 6 x 3/8 CDP slt-fil-hd mach

4шт.

2

(Discontinued for service)

1шт.

3

(Discontinued for service)

1шт.

4

(Discontinued for service)

1шт.

5

(Discontinued for service)

1шт.

6

19651R1

SCREW, and lock washer assy, no. 10-32 x 7/8 CDP sltd-fil-hd mach

2шт.

7

19652R1

SCREW AND LOCKWASHER ASSY, no. 10-32 x 1-1/4 CDP slt-fil-hd mach

2шт.

8

(Discontinued for service)

1шт.

45214D

NUT, adjusting screw lock

1шт.

9

(Discontinued for service)

1шт.

10

(Discontinued for service)

1шт.

11

(Discontinued for service)

1шт.

12

(Discontinued for service)

1шт.

45216D

NUT, adjusting screw lock

1шт.

13

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1/8 slt-headless brass pipe

1шт.

14

187838

BUMPER

SCREW, throttle stop adjusting

1шт.

15

(Discontinued for service)

1шт.

16

132198

SCREW, venturi set

1шт.

131184

CONNECTING LINK

WASHER, no. 12 CDP light lock

1шт.

17

58899D

SEAL, throttle shaft dust

2шт.

18

383074R91

SHAFT AND STOP ASSY, throttle

1шт.

19

431942

SUPPORT,Hex, #10 - 32 x 1/2"

choke lever swivel

1шт.

20

275583R91

LEVER ASSY, choke

1шт.

21

36756D

SCREW, choke lever set

1шт.

22

443799

SCREW, choke tube support

2шт.

23

58889D

SUPPORT W/CLAMP ASSY, choke tube

1шт.

24

58899D

SEAL, choke shaft dust

1шт.

25

56389D

CLAMP, choke tube

1шт.

26

132105

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

no. 10-32 x 3/8 CDP slt-fil-hd mach

1шт.

120611

NUT,#10 - 32

no. 10-32 CDP sq

1шт.

27

(Discontinued for service)

1шт.

28

383078R1

DISC, choke

1шт.

29

56365D

SCREW, choke disc

2шт.

30

383072R92

BODY ASSY, partial

1шт.

31

(Discontinued for service)

1шт.

32

56365D

SCREW, throttle disc

2шт.

33

DISC, throttle, not serviced

1шт.

34

(Discontinued for service)

1шт.

35

383076R1

LEVER, throttle

1шт.

36

142952

GROOVED PIN

Pin, Grooved, 3/32" x 1/2", Type A

1шт.

37

(Discontinued for service)

1шт.

38

(Discontinued for service)

1шт.

39

(Discontinued for service)

1шт.

40

(Discontinued for service)

1шт.

41

(Discontinued for service)

1шт.

42

17093R1

SCREW, valve cover

4шт.

43

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1/8 slt-headless brass pipe

1шт.

Выбрано товаров: 48
