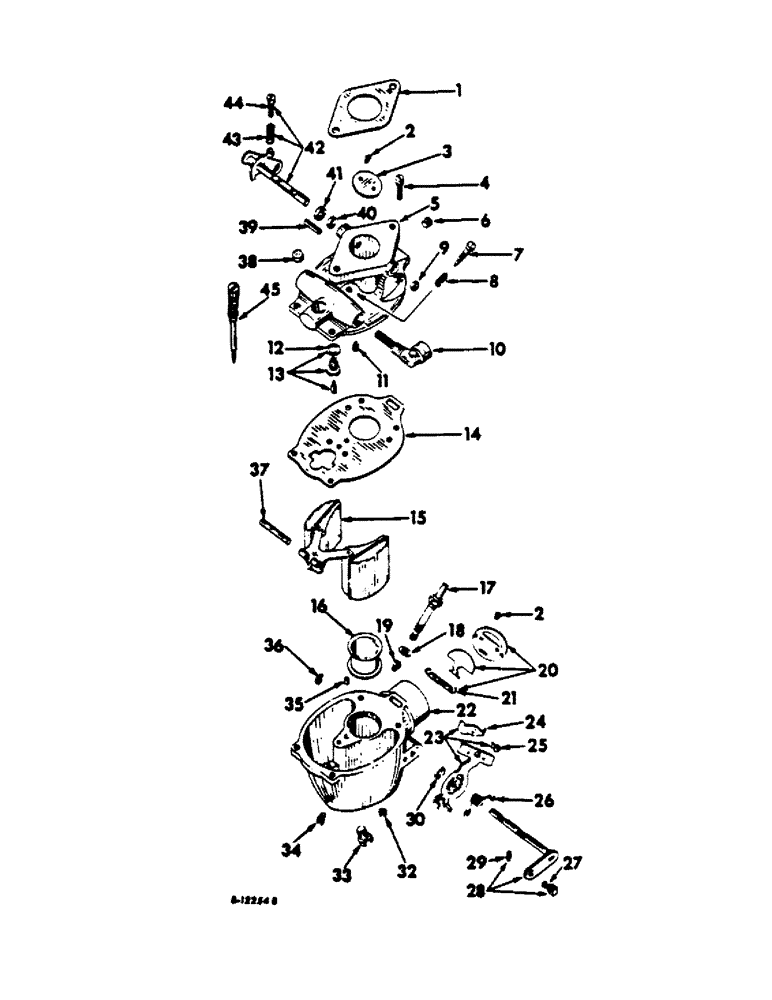

Запчасти Case IH C-135 (C-25) - CARBURETOR, MARVEL-SCHEBLER

396478R91

CARBURETOR

T-5, TC-5 crawler tractors and 201 windrowers

1шт.

372985R92

CARBURETOR

ASSY, on orders for 372985R92 furnish carburetor assy, 396478R91

1шт.

re part number 372985r92 - carb. can be identified w/Marvel Schebler no. TSX-827. ph 2/24/96

1шт.

1

24520D

GASKET

carburetor, used w/carburetor 372985R92

1шт.

Not included with carburetor assembly.

1шт.

1

382116R1

GASKET

carburetor, used w/carburetor 396478R91

1шт.

Not included with carburetor assembly.

1шт.

2

352701R91

SCREW

throttle plate

4шт.

3

373389R1

VALVE

PLATE, throttle

1шт.

4

19563R91

SCREW, 12/24 x 5/8 fil-hd-slt CD/ZN

4шт.

5

373356R93

BODY

ASSEMBLY, throttle, consists of ref nos. 2, 3, 6, 9, 38, 39, 40, 41, 42 and 44

1шт.

6

373400R1

PLUG, idle drilling

1шт.

7

69923D

SCREW

idle adjusting

1шт.

8

69954D

SPRING

idle adjusting screw

1шт.

9

69930D

CUP

throttle shaft

1шт.

10

69938D

ELBOW

& SCREEN ASSY, gas inlet

1шт.

11

69929D

JET, idling

1шт.

12

69950D

GASKET

float valve seat

1шт.

13

382499R91

JET

SEAT & GASKET ASSY, float valve

1шт.

14

69952D

GASKET

throttle, Serial Range: body-bowl

1шт.

15

69919D

FLOAT

& LEVER ASSY

1шт.

16

(Not used in this application)

1шт.

17

373377R1

NOZZLE INJECTION

NOZZLE

1шт.

18

373361R1

GASKET

main nozzle

1шт.

19

391700R1

JET, power, for carburetor assembly, 396478R91

1шт.

19

373380R1

JET, power, for carburetor assembly, 372985R92

1шт.

20

373370R91

VALVE

SHUTTER ASSY, air

1шт.

21

373371R1

SPRING

air shutter

1шт.

22

378753R91

BOWL ASSY, fuel, consists of ref nos. 32, 34, 35 and 36

1шт.

23

373372R91

BRACKET

& CUP ASSY, air shutter

1шт.

453666

SCREW, 8-32 x 3/8 fil-hd

1шт.

24

373373R1

CLIP

starting shutter bracket

1шт.

25

20832R1

SCREW, 8-32 x 1/2 hex-hd slt

1шт.

26

373369R1

SPRING

air shutter return

1шт.

27

373405R1

PIVOT

SWIVEL, air shutter shaft

1шт.

455956

SCREW, 8-32 x 5/16 hex-hd-slt

1шт.

28

373366R91

LEVER

SHAFT & LEVER ASSY, air shutter

1шт.

29

373406R1

SPLIT PIN

SPRING, swivel retainer

1шт.

30

69924D

PACKING

air shutter shaft

1шт.

31

(Not used in this application)

1шт.

32

373387R1

FILTER

STRAINER

1шт.

33

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

drain

1шт.

34

373404R1

PLUG

power jet drilling

1шт.

35

373383R1

BUSHING

VENT, well

1шт.

36

373403R1

PLUG

CUP, air shutter shaft

1шт.

37

69920D

SHAFT

AXLE, float

1шт.

38

373401R1

PLUG, Welch expansion

1шт.

39

376358R1

PIN, throttle stop

1шт.

40

373390R1

PACKING

throttle shaft

1шт.

41

69931D

RETAINER

throttle shaft packing

1шт.

42

373388R91

LEVER

SHAFT & LEVER ASSY, throttle

1шт.

43

69953D

SPRING

throttle stop screw

1шт.

44

131979

SCREW,Sl Fil Hd, #8 - 32 x 3/4"

8-32 x 3/4 fil-hd-slt CD/ZN

1шт.

45

376110R91

NEEDLE

main jet adjustment, for high altitude adjustment

1шт.

Not included with carburetor assembly.

1шт.

400447R91

KIT

carburetor repair, consists of ref nos. 2, 7, 8, 9, 11, 13, 19, 30, 37, 41, 42, and gasket package, 373359R91

1шт.

373359R91

GASKET

SET, carburetor, consists of (1) gasket 69950D, (1) gasket 373361R1, (1) gasket 69952D

1шт.
