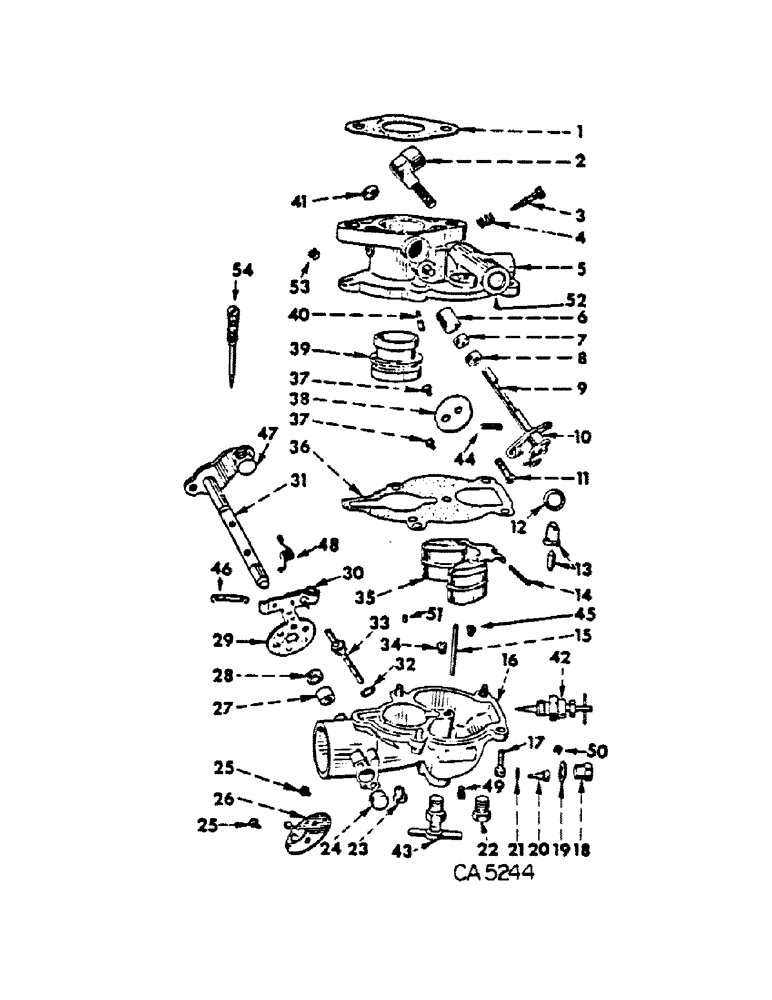

Запчасти Case IH C-135 (C-22) - CARBURETOR

389373R92

CARBURETOR

ASSY, T-340A crawler tractors

1шт.

367700R93

CARBURETOR

ASSY, on orders for 367700R93, furnish carburetor assy, 396478R91, 404 tractors

1шт.

1

24520D

GASKET

carburetor

1шт.

Not included with carburetor assembly.

1шт.

1

382116R1

GASKET

carburetor, used w/carburetor assy 396478R91

1шт.

2

53796D

ELBOW

AND STRAINER ASSY

1шт.

Not included with carburetor assembly.

1шт.

2

69938D

ELBOW

AND SCREEN ASSY, used w/carubretor assy, 396478R91

1шт.

Not included with carburetor assembly.

1шт.

3

13873D

NEEDLE

NEEDLE, idle adjusting

1шт.

3

69923D

SCREW

idle adjusting, used w/carburetor assy, 396478R91

1шт.

4

12472D

SPRING

idle adjusting needle valve

1шт.

4

69954D

SPRING

idle adjusting screw, used w/carburator assy, 396478R91

1шт.

5

369878R92

BODY

ASSEMBLY, throttle, used w/carburetor assembly, 367700R93

1шт.

Consists of (1) body (NSS), (1) bracket (NSS), (2) bushing 368360R1, (1) lever and shaft 62170DA, (1) needle 13873D, (1) pin 135645H, (1) plate 357144R1, (1) plug 53797D, (1) retainer 376139R1, (2) screw 454415, (1) seal 368358R2, (1) spacer 54062D, (1) spring 12472D

1шт.

5

393863R91

BODY ASSY, throttle, used w/carburetor assembly, 389373R91

1шт.

Consists of (1) body (NSS), (1) bracket (NSS), (2) bushing 368360R1, (1) lever and shaft 393864R91, (1) plate 393865R1, (1) plug 53797D, (1) retainer 376139R1, (1) seal 368358R2, (1) spacer 54062D

1шт.

5

373356R93

BODY

ASSY, throttle, used w/carburetor, 396478R91, consists of ref no.s 2, 3, 6, 9, 38, 39, 40, 41, 42 and 44

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

Not included with carburetor assembly.

1шт.

50705D

STUD

carburetor

2шт.

Not included with carburetor assembly.

1шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

Not included with carburetor assembly.

1шт.

6

368360R1

BUSHING

throttle shaft

2шт.

7

368358R2

RUBBER SEAL

throttle shaft

1шт.

7

373390R1

PACKING

SEAL, throttle shaft, used w/carburetor assy, 396478R91

1шт.

8

376139R1

RETAINER

throttle shaft seal

1шт.

8

69931D

RETAINER

throttle shaft seal, used w/carburetor assy, 396478R91

1шт.

9

62170DA

SHAFT

LEVER AND SHAFT W/SCREW ASSY, throttle

1шт.

54062D

WASHER

throttle lever

1шт.

9

373388R91

LEVER

AND SHAFT ASSY, throttle, used w/carburetor assy, 396478R91

1шт.

10

135645H

PIN, taper

1шт.

11

131979

SCREW,Sl Fil Hd, #8 - 32 x 3/4"

8-32 x 3/4 fil hd mach throttle stop

1шт.

69953D

SPRING

throttle stop, used w/carburetor assy, 396478R91

1шт.

12

53792D

WASHER

GASKET, fuel valve

1шт.

12

69950D

GASKET

fuel valve, used w/carburetor assy, 396478R91

1шт.

13

380977R91

VALVE

AND SEAT ASSY, fuel

1шт.

13

382499R91

JET

VALVE AND SEAT ASSY, fuel, used w/carburetor assy, 396478R91

1шт.

14

35514D

AXLE, float

1шт.

14

69920D

SHAFT

AXLE, float, used w/carburetor assy, 396478R91

1шт.

15

369880R1

TUBE, idle filler

1шт.

16

369879R92

BOWL ASSEMBLY, carburetor, consists of (1) bowl (NSS), (1) filter 384327R91, (1) plug 53797D, (1) retainer 42191D, (1) tube 369880R1, (1) washer 20210D

1шт.

16

378753R91

BOWL ASSY, carburetor, used w/carburetor assy, 396478R91, consists of ref no. 32, 34, 35 and 36

1шт.

17

19270R91

SCREW ASSY, Serial Range: bowl-body

4шт.

17

19563R91

SCREW ASSY, bowl to body, used w/assy 396478R91

4шт.

454415

SCREW, no. 5-40 x 1/4 fil-hd slotted steel mach w/spring lockwasher

2шт.

18

31860D

PLUG

lower, main jet passage

1шт.

19

12433D

WASHER

main passage fibre

1шт.

20

20628D

JET, main, used with carburetor 367700R93

1шт.

20

393867R1

JET, main, used w/carburetor assembly, 389373R91

1шт.

21

12435D

SEALING WASHER

WASHER, main jet

1шт.

22

FOR444613

PLUG

1/8-27 C-Z auto hex-hd pipe drain

1шт.

23

384327R91

FILTER

ASSEMBLY, drip plug

1шт.

24

377798R1

PLUG

choke shaft hole

1шт.

24

373403R1

PLUG

choke shaft hole, used w/carburetor assy, 396478R91

1шт.

25

454415

SCREW ASSEMBLY, choke valve plate

2шт.

26

368355R91

SHUTTER

PLATE ASSEMBLY, choke valve

1шт.

26

373370R91

VALVE

CHOKE ASSEMBLY, used w/carburetor assy, 396478R91

1шт.

27

21210D

WASHER

choke shaft packing

1шт.

27

69924D

PACKING

choke shaft, used w/carburetor assy, 396478R91

1шт.

28

42191D

RETAINER

choke shaft packing

1шт.

29

369885R91

BRACKET ASSEMBLY, choke valve

1шт.

29

373372R91

BRACKET

ASSY, choke, used w/carburetor assy, 396478R91

1шт.

30

369886R1

CLAMP

choke valve bracket

1шт.

19404R1

NUT, no. 8-36 CD-PLTD sq

1шт.

19403R1

SCREW, no. 8-36 x 1/2 CD-PLTD slt-hex-hd mach

1шт.

131958

ELBOW

SCREW, 8-32 x 5/16 fill. hd slotted mach

1шт.

30

373373R1

CLIP

CLAMP, choke valve bracket, used w/carburetor assy, 396478R91

1шт.

20832R1

SCREW, 8-32 x 1/2 hex-hd slt machine and spring lockwasher

1шт.

453666

SCREW, 8-32 x 3/8 fill. hd. machine

1шт.

31

369884R91

SHUTTER

LEVER AND SHAFT W/SCREW ASSY, choke valve

1шт.

19451R1

SCREW, no. 8-36 x 3/8 CD-PLTD slt-hex-hd mach

1шт.

31

373366R91

LEVER

AND SHAFT ASSY, choke, used w/carburetor assy, 396478R91

1шт.

32

22846D

WASHER, discharge jet fibre

1шт.

32

373361R1

GASKET

main nozzle, used w/carburetor assy, 396478R91

1шт.

33

368354R91

JET

main discharge

1шт.

33

373377R1

NOZZLE INJECTION

JET, main discharge, used w/carburetor assy, 396478R91

1шт.

34

97465H

JET, well vent, used with carburetor 367700R93

1шт.

34

94092H

JET, well vent, used w/carburetor assembly, 389373R91

1шт.

35

53783D

FLOAT

ASSEMBLY

1шт.

35

69919D

FLOAT

ASSEMBLY, used w/carburetor assy, 396478R91

1шт.

36

368362R1

GASKET

, Serial Range: bowl-body

1шт.

36

69952D

GASKET

bowl to body, used w/carburetor assy, 396478R91

1шт.

37

454415

SCREW ASSEMBLY, throttle valve plate

2шт.

37

352701R91

SCREW

throttle plate, used w/carburetor assy, 396478R91

2шт.

38

357144R1

LARGE PLATE

PLATE, throttle valve, used with carburetor 367700R93

1шт.

38

393865R1

LARGE PLATE

PLATE, throttle valve, used w/carburetor assembly, 389373R91

1шт.

38

373389R1

VALVE

PLATE, throttle, used w/carburetor assy, 396478R91

1шт.

39

369881R1

VENTURI

used with carburetor 367700R93

1шт.

39

393866R1

VENTURI, used w/carburetor assembly, 389373R91

1шт.

40

352604R1

JET

idling

1шт.

40

69929D

JET, idling, used w/carburetor assy, 396478R91

1шт.

41

53797D

PLUG

throttle shaft hole

1шт.

41

69930D

CUP

PLUG, throttle shaft hole, used w/carburetor assy, 396478R91

1шт.

42

53786D

ADJUSTER

VALVE, main jet adjustment, for high altitude operation

1шт.

Not included with carburetor assembly.

1шт.

43

(Not used in this application)

1шт.

44

376358R1

PIN, throttle stop, used w/carburetor assy, 396478R91

1шт.

45

391700R1

JET, power, used w/carburetor assy, 396478R91

1шт.

46

373371R1

SPRING

choke, used w/carburetor assy, 396478R91

1шт.

47

373405R1

PIVOT

SWIVEL ASSY, choke shaft

1шт.

455956

SCREW, 8-32 x 5/16 hex-hd sltd

1шт.

373406R1

SPLIT PIN

SPRING, swivel retainer, used w/carburetor assy, 396478R91

1шт.

48

373369R1

SPRING

choke return, used w/carburetor assy, 396478R91

1шт.

49

373404R1

PLUG

power jet drilling, used w/carburetor assy, 396478R91

1шт.

50

373387R1

FILTER

STRAINER, used w/carburetor assy, 396478R91

1шт.

51

373383R1

BUSHING

BLEED, main air, used w/carburetor assy, 396478R91

1шт.

52

373401R1

PLUG, Welch, used w/carburetor assy, 396478R91

1шт.

53

373400R1

PLUG, idle drilling, used w/carburetor assy, 396478R91

1шт.

54

376110R91

NEEDLE

main jet adjustment, for high altitude adjustment

1шт.

395320R91

KIT

PACKAGE, carburetor repair

1шт.

400447R91

KIT

PACKAGE, carburetor repair, used w/carburetor assy, 396478R91

1шт.

368357R91

GASKET KIT

PACKAGE, carburetor gasket

1шт.

373359R91

GASKET

PACKAGE, carburetor repair, used w/carburetor assy, 396478R91

1шт.
