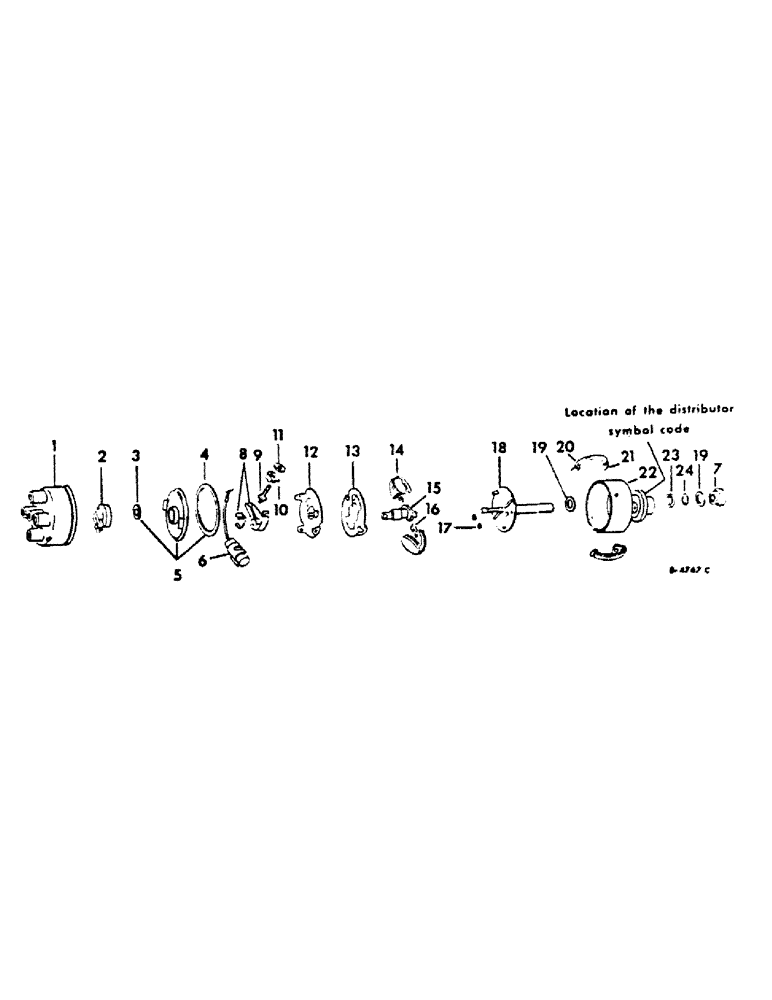

Запчасти Case IH C-135 (C-20) - DISTRIBUTOR

366928R91

DISTRIBUTOR

ASSEMBLY, machines w/engine serial no. 24369 and below

1шт.

375423R91

DISTRIBUTOR ASSEMBLY, machines w/engine serial no., Serial Range: 24370-100500

1шт.

380622R91

DISTRIBUTOR

ASSEMBLY, machines w/engine serial no. 100501 and above

1шт.

1

351693R92

DISTRIBUTOR,Cap

CAP ASSY, distributor

1шт.

2

353896R91

ROTOR ASSY.

ROTOR ASSY, distributor

1шт.

3

353901R2

FELT SEAL

FELT, breaker cover seal

1шт.

4

384830R1

GASKET

breaker cover

1шт.

5

384831R91

COVER

ASSY, breaker

1шт.

5

384831R91GV

COVER

Value, Breaker Cover

1шт.

6

353903R92

CONDENSER

ASSY

1шт.

86982774

SCREW,Slotted Fil Hd, #8-32 x 3/16"

8-32 x 1/4 CD or ZN-PLTD slt-fil-hd mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

7

353902R1

GEAR

distributor

1шт.

354552R1

HARDWARE

PIN, distributor gear

1шт.

8

353172R91

BREAKER

POINT SET, distributor

1шт.

120622

NUT,#8-32

Breaker arm spring #8-32

1шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

8-32 x 3/16 CD or ZN-PLTD slt-pan-hd mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, , Breaker arm spring #8

1шт.

21394D

WASHER

stationery point

2шт.

9

353907R1

STUD

SCREW, terminal

1шт.

120622

NUT,#8-32

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

21394D

WASHER

terminal

1шт.

10

353906R1

PLUG

INSULATOR, spring anchor terminal

1шт.

11

251538R1

WASHER

terminal insulating

1шт.

12

352277R11

PLATE

ASSEMBLY, breaker

1шт.

132756

SCREW, no. 8 x 7/16 znp r/hds mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

13

352301R1

GUARD

governor weight

1шт.

131954

SCREW,Sl Fil Hd, #8 - 32 x 1/4"

8-32 x 1/4 CD or ZN-PLTD, slt-fil-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

14

353915R91

ARM

ASSY, weight

2шт.

15

355724R91

PACKAGE

CAM W/FELT, 355460R1, assy

1шт.

355460R1

FELT SEAL

FELT, cam oil hole

1шт.

16

366942R91

PACKAGE

SET, governor spring, consists of two springs, used with distributor assembly, 366928R91

1шт.

16

375425R91

PACKAGE

SET, governor spring, consists of two springs, used with distributor assembly, 375423R91

1шт.

16

380626R91

SPRING

SET, governor spring, used with distributor assembly, 380622R91

1шт.

17

352293R1

SHIM

SPACER, weight arm

4шт.

18

354901R91

SHAFT

ASSY, distributor, used with distributor assembly, 366928R91

1шт.

18

362474R91

SHAFT

ASSY, distributor, used with distributor assembly, 375423R91

1шт.

18

380623R91

SHAFT

ASSY, distributor assembly, 380622R91

1шт.

19

352298R1

THRUST WASHER

distributor thrust

2шт.

20

353894R1

VALVE SPRING

SPRING, distributor cap

2шт.

21

353895R1

SUPPORT

distributor cap spring

2шт.

132756

SCREW, 8-32 x 7/16 CD or ZN-PLTD slt-rd-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

22

353898R11

HOUSING

ASSY, distributor, consists of (1) bushing (NSS), (1) housing (NSS), (1) O-ring 252739R1, (1) plug 125947, (1) retainer 353899R1

1шт.

125947

STUD

1/8 CD or ZN-PLTD slt-hdls pipe

1шт.

23

353899R1

STOP

RETAINER, distributor shaft oil seal

1шт.

24

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32

1шт.

24

373577R91

KIT

PACKAGE, distributor shaft bushing service, consists of (1) bushing 353921R1

1шт.

21372D

GREASE, distributor, 1 oz. tube

1шт.
