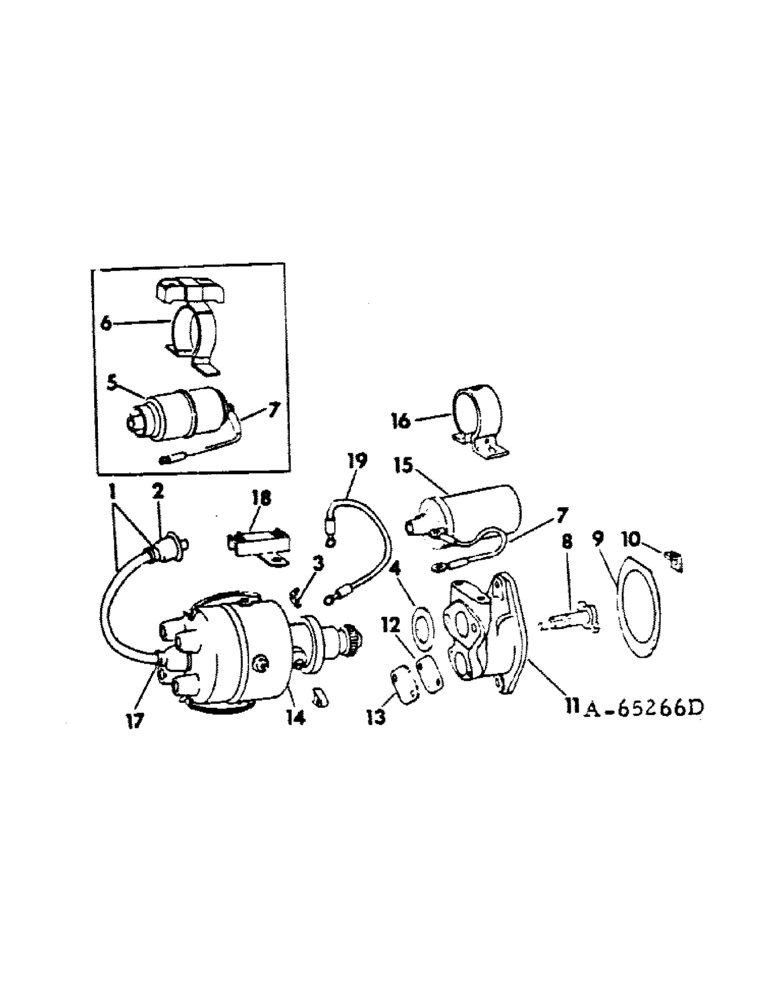

Запчасти Case IH C-135 (C-18) - BATTERY IGNITION UNIT

1

356686R92

CABLE

w/two nipples, assembly, coil to distributor, used w/coils 353874R91 and 368839R91 and package 356695R92 only

1шт.

1

373167R91

CABLE

w/two nipples, coil to distributor, engines w/serial number 135595 and below

1шт.

1

CABLE, w/two nipples, assembly, coil to distributor, engines w/serial number 135596 and above furnish package 70218C91

1шт.

2

251553R1

BOOT

NIPPLE - ignition coil terminal, use w/coil 353874R91 and 368839R91

1шт.

2

372875R1

NIPPLE, LUBE

NIPPLE - ignition coil terminal, use w/coil 396546R93

1шт.

3

353937R1

CLIP

CLAMP - distritutor

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- 5/16-18 x 1 C-Z hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

353936R2

GASKET

- distributor

1шт.

5

396546R93

KIT

PACKAGE - ignition coil service consists of (1) coil with lamp (NSS), (2) washer 120217, (2) nut 120614, (1) nipple 372875R1

1шт.

5

396547R93GV

COIL

Value, Ignition Coil Kit

1шт.

6

NSS

NOT SOLD SEPARAT

CLAMP ASSY, coil, furnish ignition coil service package 396546R93

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga CD-PLTD

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 slt-rd-hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

177056

HUB

SCREW, no. 10NF x 1-1/2 r/hds tap

1шт.

7

357929R92

ELECTRIC CABLE

CABLE, coil to distributor primary

1шт.

8

353934R11

SHAFT

GEAR AND SHAFT ASSEMBLY, distributor drive

1шт.

9

46168DB

GASKET

distributor drive housing

1шт.

10

46868D

CLIP

distributor mounting

1шт.

11

363749R91

HOUSING

PACKAGE, distributor drive housing and cover, service, consists of (1) cover 363764R1, (1) gasket 363765R1, (1) housing (NSS), (2) screws 435429, (2) washer 120217

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, , cd-pltd Slotted, Headless, 1/8" NPT

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

363765R1

GASKET

distributor drive housing hole cover, tractors w/o tachometer

1шт.

13

363764R1

COVER

distributor drive housing hole, tracktors w/o tachometer

1шт.

435429

SCREW, 10-32 x 9/16 CD-PLTD slt-rd-hd mach Slotted Rd Hd, #10-32 x 9/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

14

DISTRIBUTOR ASSEMBLY, for components see list of parts under details of distributor

1шт.

15

396546R93

KIT

PACKAGE, ignition coil service, 12 volt, consists of (1) coil with lamp (NSS), (2) washer 120217, (2) nut 120614, (1) nipple 372875R1

1шт.

177056

HUB

SCREW, 10-32 X 1-1/2 C-Z slt-rd-hd tap.

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 C-Z slt-rd-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga C-Z

2шт.

16

NSS

NOT SOLD SEPARAT

CLAMP, coil, furnish package, 396546R93

1шт.

17

251553R1

BOOT

NIPPLE, distributor cap terminal

1шт.

18

61872C91

PACKAGE

coil resistor and clamp, consists of (1) clamp (NSS), (1) resistor 368573R91, (1) screw 177056, (1) washer 120380, (1) screw 181310

1шт.

19

357929R92

ELECTRIC CABLE

CABLE ASSY, ignition coil, pos, to external resistor

1шт.
