Запчасти Case IH C-135 (C-17) - SPARK PLUGS AND CABLES

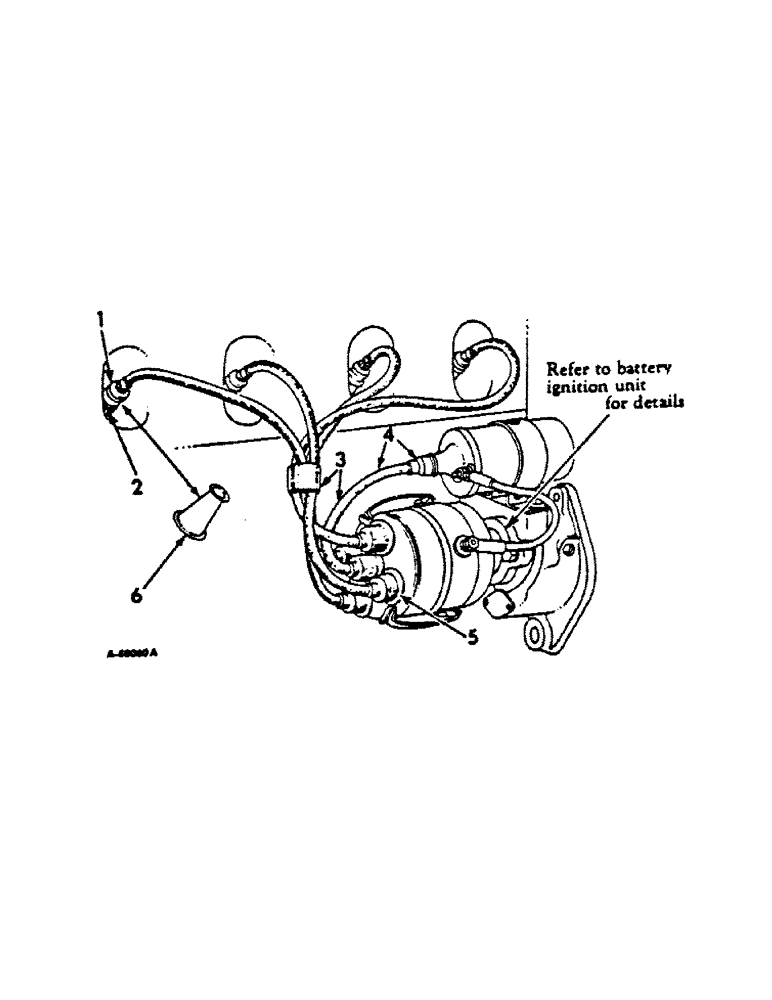

Схема запчастей Case IH C-135 - (C-17) - SPARK PLUGS AND CABLES
1
5
6
4
3
2

Артикул

Название

Примечание

Количество

1

RD18Y

SPARK PLUG

PLUG, spark w/gasket, 37762H, light service, Champion

4шт.

1

RD15Y

SPARK PLUG

PLUG, spark w/gasket, 37762H, moderate service, Champion

4шт.

1

18R52

PLUG, spark w/gasket, 37762H, moderate service, Prestolite

4шт.

1

RD6

SPARK PLUG

PLUG, spark w/gasket, 37762H, heavy service, Champion

4шт.

2

37762H

GASKET

spark plug

4шт.

3

400487R1

PACKAGE, ignition cable service, replaces 356695R92, engines w/serial no. 135595 and below, consists of (4) spark plug cables (NSS), (1) coil to distributor cable (NSS), (4) nipples (NSS), (6) terminals (NSS), (1) strap, lock (NSS)

1шт.

3

70218C91

PACKAGE

ignition cable service, replaces 356695R92, engines w/serial no. 135596 and above, consists of (4) spark plug cables (NSS), (1) coil to distributor cable (NSS), (1) strap, lock (NSS)

1шт.

4

356686R92

CABLE

ASSY, coil to distributor, used w/package 356695R92, only

1шт.

4

373167R91

CABLE

ASSY, coil to distributor, engines w/serial no. 135595 and below

1шт.

4

CABLE ASSY, coil to distributor, engines w/serial no. 135596 and above furnish package 70218C91

1шт.

5

251553R1

BOOT

NIPPLE, distributor cap terminal

4шт.

6

371430R1

INSULATOR

spark plug terminal, optional w/438502C1

4шт.

6

438502C1

BOOT

INSULATOR, spark plug terminal, optional w/371430R1

4шт.

Выбрано товаров: 13
