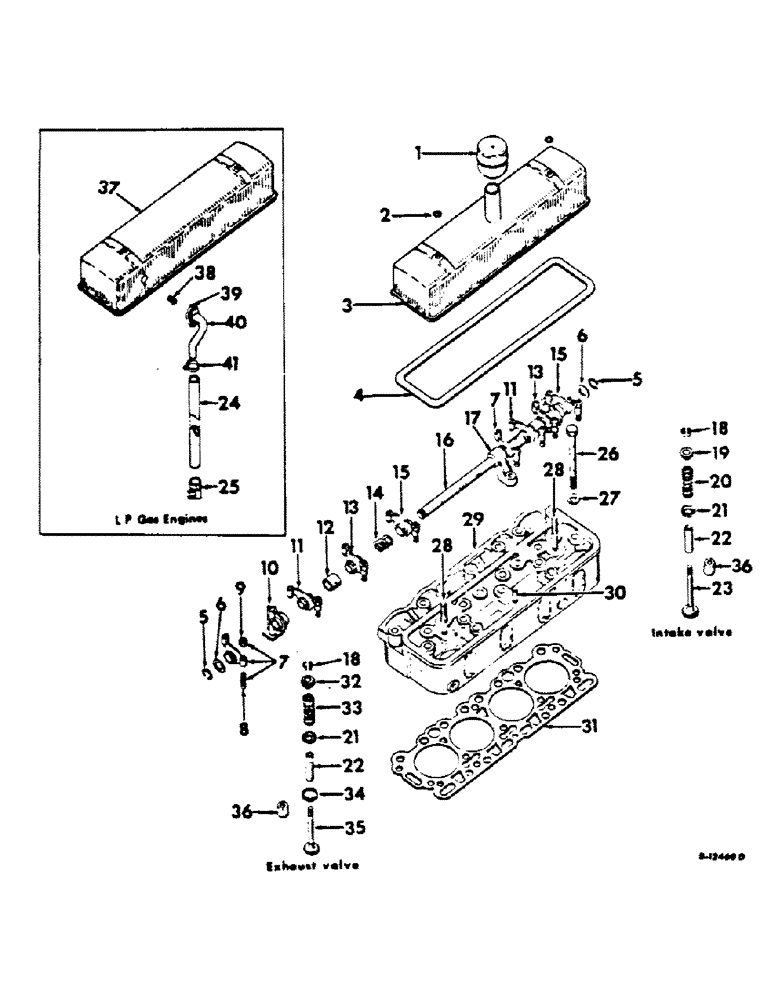

Запчасти Case IH C-135 (C-14) - CYLINDER HEAD

1

367677R91

BREATHER

ASSY, cyl head, machines w/gas engines

1шт.

1

375773R91

BREATHER ASSY, cyl head, 404 tractors w/LP gas engines serial no., Serial Range: 100501-109215

1шт.

385046R1

RETAINER, breather cap, 404 tractors w/LP gas engines serial no., Serial Range: 108040-109215

1шт.

2

62866D

WASHER,5/64" Thk x 13/32" ID

valve housing stud nut, optional w/357374R1

2шт.

2

357374R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

WASHER, valve housing stud nut, optional w/62866D

2шт.

3

367673R91

COVER ASSY, valve, all machines except 404 tractors

1шт.

3

381422R91

COVER ASSY, valve, 404 tractors

1шт.

4

43378DD

GASKET

valve housing

1шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

43375D

RING

valve lever shaft snap

2шт.

6

43374D

SPRING WASHER

valve lever shaft spring

2шт.

7

357291R92

LEVER

W/ADJ SCREW, LH exhaust valve

2шт.

8

16067DA

ADJUSTMENT SCREW,3/8" - 24

valve lever adjusting

8шт.

9

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting

8шт.

10

42099DA

BRACKET

valve lever shaft end

2шт.

11

357292R92

LEVER

W/ADJ SCREW, RH intake valve

2шт.

12

43373D

SPACER

valve lever shaft, optional w/365776R1

2шт.

12

365776R1

SPACER, valve lever shaft, optional w/43373D

2шт.

13

357291R92

LEVER

W/ADJ SCREW, LH intake valve

2шт.

14

24541D

SPRING

valve lever

2шт.

15

357292R92

LEVER

W/ADJ SCREW, RH exhayst valve

2шт.

16

352521R11

SHAFT

ASSY, valve lever

1шт.

172528

PLUG,Exp, 9/16"

9/16 expansion

2шт.

17

6089DA

BRACKET

valve lever shaft center

1шт.

18

42026D

KEY

valve spring collar (Replaces 42025D)

16шт.

19

42040D

CUP

SEAT, upper intake valve spring, optional w/47278D

4шт.

19

47278D

SEAT, VALVE

SEAT, upper intake valve spring, optional w/42040D

4шт.

20

366301R1

CYLINDER HEAD GASKET

SPRING, intake valve

4шт.

21

356588R1

RETAINER

SEAT, valve spring lower

8шт.

22

356583R2

GUIDE

valve

8шт.

23

366302R2

VALVE

intake

4шт.

24

386068R1

HOSE, breather

1шт.

25

386070R1

BRACKET, breather pipe

1шт.

26

20842R1

BOLT

cyl head, replaces 364789R1,(9) for T-5, TC-5 crawler tractors and 201 windrowers, (12) for 404 tractors, (14) for T-340A crawler tractors

1шт.

26

20642R1

BOLT,Hex, 1/2"-13 x 5", G8

cyl head, (2) for 404 tractors

1шт.

27

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

cyl head bolt, (9) for T-5, TC-5 crawler tractors and 201 windrowers, (14) for 404 tractors, (14) for T-340A crawler tractors

1шт.

28

373899R1

STUD

valve housing

2шт.

29

393508R91

HEAD W/VALVES, cyl, machines w/engine serial no. 100500 and below

1шт.

Consists of (1) head 366299R13, (16) key 42026D, (4) rotocap 356841R91, (8) seal 386192R1, (4) seat 42040D, (8) seat 356588R1, (4) spring 366304R1, (4) spring 368450R1, (4) valve 366302R2, (4) valve 366303R2

1шт.

29

366299R13

HEAD ASSY, cyl, machines w/engine serial no. 100500 and below, consists of (8) guide (NSS), (1) head (NSS), (1) plug 103868, (1) stud 355373R1, (2) stud 373899R1

1шт.

29

379038R95

HEAD

W/VALVES ASSY, cyl, machines w/engine serial no. 100501 and above

1шт.

Consists of (1) head 379240R92, (16) key 42026D, (4) rotocap 356841R91, (8) seal 386192R1, (4) seat 42040D, (8) seat 356588R1, (4) spring 366304R1, (4) spring 368540R1, (4) valve 366302R2, (4) valve 366303R3

1шт.

29

379240R92

HEAD

ASSY, cyl, machines w/engine serial no. 100501 and above, consists of (8) guide (NSS), (1) head (NSS), (2) stud 373899R1, (1) stud 355373R1

1шт.

29

379039R93

HEAD W/VALVES ASSY, cyl, machines w/engine serial no. 100501 and above, consists of (1) head 375775R21, (16) key 42026D, (8) seal 386192R1, (8) seat 42040D, (8) seat 356588R1, (8) spring 366304R1, (4) valve 278145R2, (4) valve 366302R2

1шт.

29

375775R21

HEAD ASSY, cyl, machines w/engine serial no. 100501 and above, consists of (8) guide (NSS), (1) head (NSS), (4) insert 378105R1, (2) stud 373899R1, (1) stud 355373R1

1шт.

30

355373R1

STUD

valve lever shaft oiler

1шт.

103026

NUT,3/8"-24, G5

1шт.

31

366300R2

GASKET

cyl head, machines w/engine serial no. 100500 and below

1шт.

31

383525R3

GASKET

cyl head, machines w/engine serial no. 100501 and above

1шт.

32

356841R91

ROTATOR

ASSY, exhaust, machines w/gas engines

4шт.

32

42040D

CUP

SEAT, upper exhaust valve spring, machines w/LP gas engines, optional w/47278D

4шт.

32

47278D

SEAT, VALVE

SEAT, upper exhaust valve spring, machines w/LP gas engines, optional w/42040D

4шт.

33

368450R1

SPRING

exhaust valve

4шт.

34

378105R1

INSERT

exhaust valve seat, 404 tractors and T-340 crawler tractors

4шт.

34

378106R1

INSERT, exhaust valve seat, .015 O/S, 404 tractors and T-340A crawler tractors

4шт.

34

378107R1

INSERT, exhaust valve seat, .030 O/S, 404 tractors and T-340A crawler tractors

4шт.

35

366303R4

VALVE

exhaust, machines w/gas engines

4шт.

35

278145R2

VALVE

exhaust, machines w/LP gas engines

1шт.

36

386192R1

SEAL

valve stem

8шт.

37

43379DBX

HOUSING ASSY, valve

1шт.

404 tractors w/LP gas engines, C-135 serial no. 100501 to 109215, also order ref nos 24, 25, 38 thru 41

1шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

38

386069R1

ELEMENT, breather pipe

1шт.

39

375783R3

GASKET

breather pipe

1шт.

40

386067R11

PIPE ASSY, breather

1шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

41

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, hose

1шт.

379682R11

BRACKET ASSY, air cleaner, 404 tractors w/gas engines

1шт.
