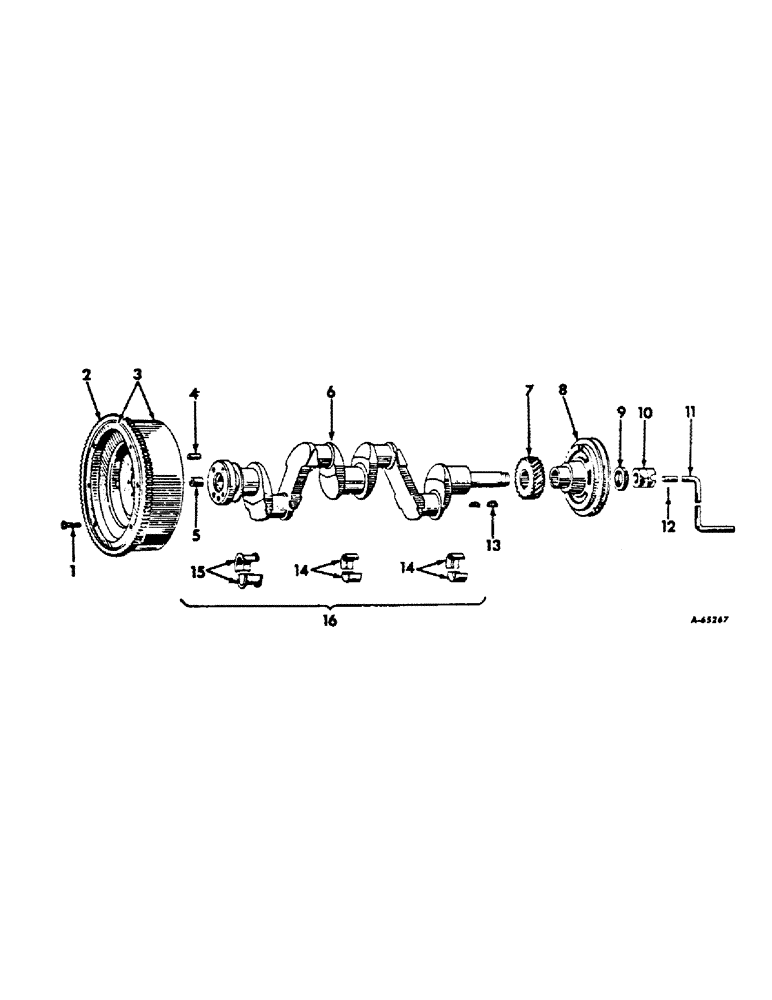

Запчасти Case IH C-135 (C-12) - CRANKSHAFT AND RELATED PARTS

1

251272R1

BOLT

flywheel, optional w/385246R1

4шт.

1

358246R1

BOLT (SPREADER),Wheel, 3/8" - 24 x 1 1/4"

BOLT, flywheel, optional w/251272R1, 404 tractors

4шт.

1

29951DA

BOLT

flywheel, T-340A crawler tractors

4шт.

1

635004R1

SCREW

BOLT, flywheel, used w/T-5, TC-5 crawlers & 201 winrowers

4шт.

46349D

LOCK

flywheel bolt

2шт.

2

376886R1

GEAR

flywheel ring, 404 tractors

1шт.

2

367042R1

GEAR

flywheel ring, 134T, T-340A crawler tractors

1шт.

2

13456VA

GEAR

flywheel ring, 112T, T-5, TC-5 crawler tractors and 201 windrowers

1шт.

3

376810R91

FLYWHEEL

W/RING GEAR, 404 tractors

1шт.

3

376887R11

FLYWHEEL W/RING GEAR, T-340A crawler tractors

1шт.

3

635093R11

FLYWHEEL W/RING GEAR, T-5 & TC-5 crawler tractors, single stage clutch w/std or torque amplifier transmission

1шт.

3

635094R11

FLYWHEEL W/RING GEAR, T-5 & TC-5 crawler tractors, dual stage clutch w/constant running PTO

1шт.

3

372436R11

FLYWHEEL W/RING GEAR, 201 windrowers

1шт.

4

24550D

PIN

flywheel dowel

1шт.

5

364527R2

BUSHING,22.23mm ID x 28.64mm OD x 25.65mm L

clutch pilot, 404 tractors

1шт.

6

367745R91

CRANKSHAFT ASSY, std, T-5, TC-5 crawler tractors and 201 windrowers, consists of (4) bearing assy 367777R11, (1) bearing assy 367750R11, (2) bearing 367749R11, (1) crankshaft (NSS), (1) pin 24550D

1шт.

6

375795R91

CRANKSHAFT W/BEARINGS, std, 404 tractors and T-340a crawler tractors, consists of (1) bushing 364527R2, (4) bearing assy 375723R11, (2) bearing assy 375755R11, (1) bearing assy 375762R11, (1) crankshaft (NSS), (1) pin 24550D

1шт.

7

46870DA

PINION

crankshaft, 33T

1шт.

8

368665R3

PULLEY

front PTO

1шт.

9

V84199

NUT,1"-14, Thin

starting crank

1шт.

10

(Not used in this application)

1шт.

11

53385DCX

CRANK

W/PIN, 15204D, for tractors w/starting crank

1шт.

12

15204D

PIN, starting crank

1шт.

13

218211

DRIVING SPROCKET

1/4 x 3/4 woodruff 91

2шт.

14

367749R11

BEARING SET,2.4575" OD x 1.317"

BEARING ASSY, crankshaft front & center

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap, 201 windrowers

1шт.

14

375755R11

BEARING SET

BEARING ASSY, crankshaft front & center, 404 tractors and T-340A crawler tractors

2шт.

14

367755R11

BEARING

ASSY, crankshaft front & center, .002 U/S, T-5, TC-5 crawler tractors and 201 windrowers

2шт.

14

375757R11

KIT

BEARING ASSY, crankshaft front & center, .002 U/S, 404 tractors and T-340A crawler tractors

1шт.

14

376650R11

BEARING ASSY

ASSY, crankshaft front & center, .010 U/S, T-5, TC-5 crawler tractors and 201 windrowers

1шт.

14

376660R11

KIT

BEARING ASSY, crankshaft front & center, .010 U/S, 404 tractors and T-340A crawler tractors

2шт.

14

376653R11

BEARING

ASSY, crankshaft front & center, .020 U/S, T-5, TC-5 crawler tractors and 201 windrowers

2шт.

14

376663R11

BEARING ASSY

ASSY, crankshaft front & center, .020 U/S, 404 tractors and T-340A crawler tractors

2шт.

14

375756R11

CRANKSHAFT BEARING

BEARING ASSY, crankshaft front & center, .030 U/S, 404 tractors and T-340A crawler tractors

1шт.

14

367753R11

BEARING ASSY, crankshaft front & center, .030 U/S, T-5, TC-5 crawler tractors and 201 windrowers

1шт.

15

367750R11

BEARING SET,3.125" OD x 1.4235"

BEARING ASSY, crankshaft rear, T-5, TC-5 crawler tractors and 201 windrowers

1шт.

15

375762R11

BEARING SET

BEARING ASSY, crankshaft rear, 404 tractors and T-340A crawler tractors

1шт.

15

375764R11

BEARING ASSY

BEARING ASSY, crankshaft rear, .002 U/S, 404 tractors and T-340A crawler tractors

1шт.

15

367756R11

BEARING

ASSY, crankshaft rear, .002 U/S, T-5, TC-5 crawler tractors and 201 windrowers

1шт.

15

376651R11

BEARING

ASSY, crankshaft rear, .010 U/S, T-5, TC-5 crawler tractors and 201 windrowers

1шт.

15

376661R11

BEARING ASSY

ASSY, crankshaft rear, .010 U/S, 404 tractors and T-340A crawler tractors

1шт.

15

376654R11

BEARING

ASSY, crankshaft rear, .020 U/S, T-5, TC-r crawler tractors and 201 windrowers

1шт.

15

376664R11

BEARING ASSY

BEARING ASSY, crankshaft rear, .020 U/S, 404 tractors and T-340A crawler tractors

1шт.

15

375763R11

BEARING ASSY

BEARING ASSY, crankshaft rear, .020 U/S, 404 tractors and T-340A crawler tractors

1шт.

15

367754R11

BEARING ASSY, crankshaft rear, .030 U/S, T-5, TC-5 crawler tractors and 201 windrowers

1шт.

16

NLS

NO LONGER SERVICED

(No longer available for service)

1шт.

395167R1

ADAPTER, PTO shaft, T-340A crawler tractors

1шт.

118977R1

BOLT, flywheel type 4

1шт.
