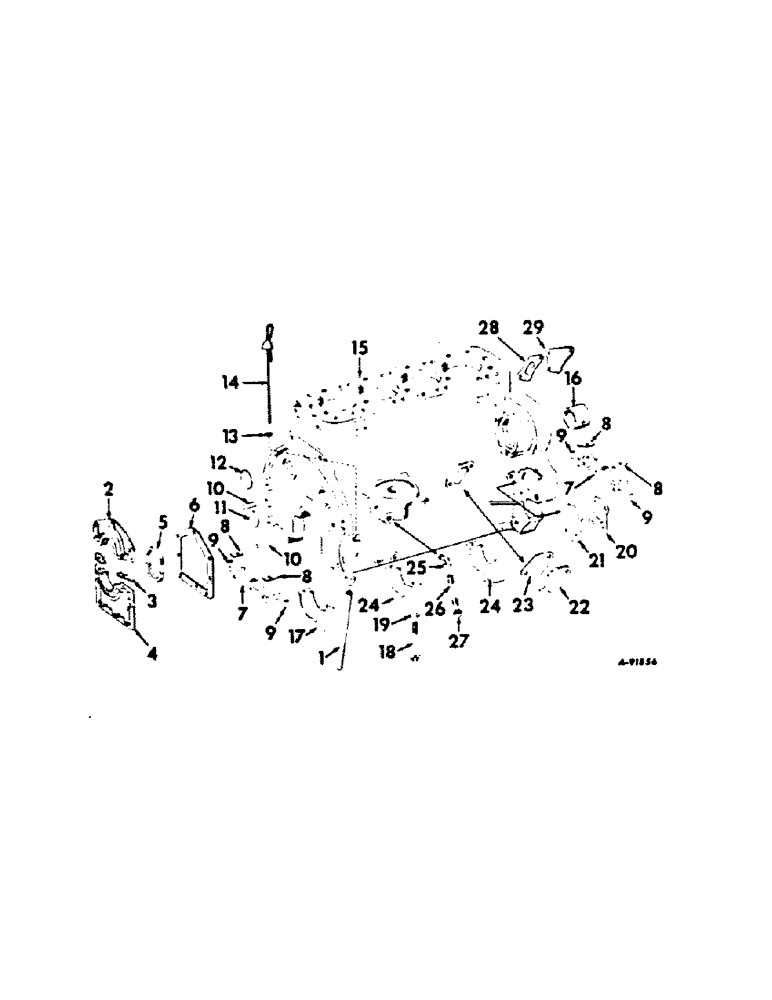

Запчасти Case IH C-135 (C-09) - CRANKCASE AND RELATED PARTS

1

365937R1

SLEEVE, oil level gage, machines w/engine serial no. 100500 and below

1шт.

1

368985R2

TUBE

SLEEVE, oil level gage, machines w/engine serial no. 100501 and above

1шт.

2

6101D

RETAINER

crankshaft upper rear oil seal, machines w/engine serial no. 100500 and below

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

2

377996R2

HUB

RETAINER, crankshaft rear oil seal, machines w/engine serial no. 100501 and above

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

3

43447D

GASKET

crankshaft rear oil seal, retainer center, machines w/engine serial no. 100500 and below

2шт.

4

6102D

RETAINER

crankshaft lower rear oil seal, machines w/engine serial no. 100500 and below

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 hex-hd cap

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

5шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

5

24425D

OIL SEAL,24.61mm ID x 50.01mm OD x 4.76mm Thk

crankshaft rear oil seal, machines w/engine serial no. 100500 and below

1шт.

5

378040R91

PACKING RING

SEAL, crankshaft rear oil, machines w/engine serial no. 100501 and above

1шт.

6

43448D

GASKET

crankshaft rear oil seal retainer, machines w/engine serial no. 100500 and below

1шт.

6

377997R1

GASKET

crankshaft rear oil seal retainer, machines w/engine serial no. 100501 and above

1шт.

7

6100DA

SUPPORT ASSY.

PLATE, crankshaft front and rear oil seal retainer

2шт.

8

43446DA

GASKET,1.29mm Thk

crankshaft oil seal retainer plate

4шт.

9

43445DA

PAD

PLUG, crankshaft oil seal retainer plate

4шт.

10

46923D

PIN

DOWEL, clutch housing, machines w/engine serial no. 100500 and below

2шт.

10

357232R1

PIN

DOWEL, clutch housing, 404 tractors

2шт.

10

368568R1

DOWEL, clutch housing tractors, T-340A crawler tractors

2шт.

11

172576

PLUG,Exp, 1 5/8"

camshaft rear

1шт.

12

63556R1

PLUG

crankshaft core

1шт.

13

34259H

WASHER, oil level gage felt, machines w/serial no. 100500 and below

1шт.

14

362611R31

DIPSTICK

GAUGE ASSY, oil level, machines w/engine serial no. 100500 and below

1шт.

14

67645C1

GAUGE

ASSY, oil level, 404 tractors and machines w/engine serial no. 100501 and above

1шт.

15

373125R21

CRANKCASE ASSY, machines w/serial no. 100500 and below, not for T-340A crawler tractors

1шт.

Consists of (1) crankcase (NSS), (1) cap (NSS), (2) cap (NSS), (1) bushing 375747R1, (6) bolt 17091R1, (2) dowel 46923D, (2) plug 274070, or (2) plug 444687, (1) plug 172576, (1) connector 539986R1, (1) plug 63556R1, (1) sleeve 365937R1, (6) washer 58516H

1шт.

444654

PLUG,Sq Soc, 1/4"-18 NPTF

1/4-18 auto sq-hd pipe

2шт.

15

375596R21

CRANKCASE ASSY, 404 tractors

1шт.

Consists of (6) bolt 70133R1, (1) bushing 43439DBR, (1) bushing 375747R1, (2) cap (NSS), (1) cap (NSS), (1) crankcase (NSS), (2) dowel 357232R1, (1) drain 103647, (2) plug 444654, (1) plug 444574, (1) plug 172576, (2) plug 63556R1, (2) plug 274070, or (1) sleeve 368985R2, (6) washer 58516H

1шт.

103647

VALVE

COCK, 1/4 drain

1шт.

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4-18 auto sq-hd pipe

1шт.

444654

PLUG,Sq Soc, 1/4"-18 NPTF

1/4-18 auto sq-soc pipe

2шт.

15

379169R21

CRANKCASE ASSY, T-340 crawler tractors w/engine serial no. 100501 and above

1шт.

Consists of (6) bolt 70133R1, (1) bushing 43439DBR, (1) bushing 375747R1, (2) cap (NSS), (1) cap (NSS), (1) crankcase (NSS), (2) dowel 368568R1, (2) plug 444654, (1) plug 444574, (1) plug 172576, (2) plug 63556R1, (2) plug 274070, or (2) plug 444687, (1) sleeve 368985R2, (6) washer 58516H

1шт.

444654

PLUG,Sq Soc, 1/4"-18 NPTF

1/4-18 auto sq-soc pipe

2шт.

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4-18 auto sq-hd pipe

1шт.

15

367727R31

CRANKCASE ASSY, T-340 crawler tractors w/engine serial no. 100500 and below

1шт.

Consists of (1) crankcase (NSS), (1) cap (NSS), (2) cap (NSS), (1) connector 539968R1, (6) bolt 17091R1, (1) bushing 43439DBR, (1) bushing 375747R1, (2) dowel 368568R1, (1) plug 444574, (2) plug 444654, (1) plug 172576, (1) plug 63556R1, (3) plug 274070, or (3) plug 444687, (1) sleeve 365936R1, (6) washer 58516H

1шт.

444654

PLUG,Sq Soc, 1/4"-18 NPTF

1/4 sq-soc pipe

2шт.

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4 sq-hd pipe

1шт.

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

oil header

2шт.

16

43439DBR

BUSHING,50.77mm ID x 54.15mm OD x 33.34mm L

distributor gear

1шт.

17

NSS

NOT SOLD SEPARAT

CAP, crankshaft rear bearing, not serviced separately, order crankcase assy

1шт.

18

17091

BOLT, 1/2-13 x 3 hex-hd lock, machines w/engine serial no. 100500 and below

6шт.

18

70133R1

BOLT

BOLT, crankshaft brg cap, machines w/engine serial no. 100501 and above

6шт.

19

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

crankshaft brg cap bolt

6шт.

20

350708R1

GASKET

hyd pump pad cover

1шт.

21

251067R1

COVER

hyd pump pad

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

29710D

COVER

fuel pump opening, T-5 & TC-5 crawler tractors and 201 windrowers

1шт.

179814

SPACER

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

49124D

GASKET

fuel tank opening cover, T-5 & TC-5 crawler tractors and 201 windrowers

1шт.

24

NSS

NOT SOLD SEPARAT

CAP, crankshaft front and center, not serviced sepatately

2шт.

25

(Not used in this application)

1шт.

26

(Not used in this application)

1шт.

27

(Not used in this application)

1шт.

28

68104C1

GASKET

water passage cover, machines w/engine serial no. 100500 and below

1шт.

29

367733R1

COVER, water passage, optional w/367735R11

1шт.

29

367735R11

COVER, water passage, optional w/367733R1, machines w/engine serial no. 100500 and below

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

375747R1

BUSHING,46.19mm ID x 49.45mm OD x 30.43mm L

camshaft front

1шт.
