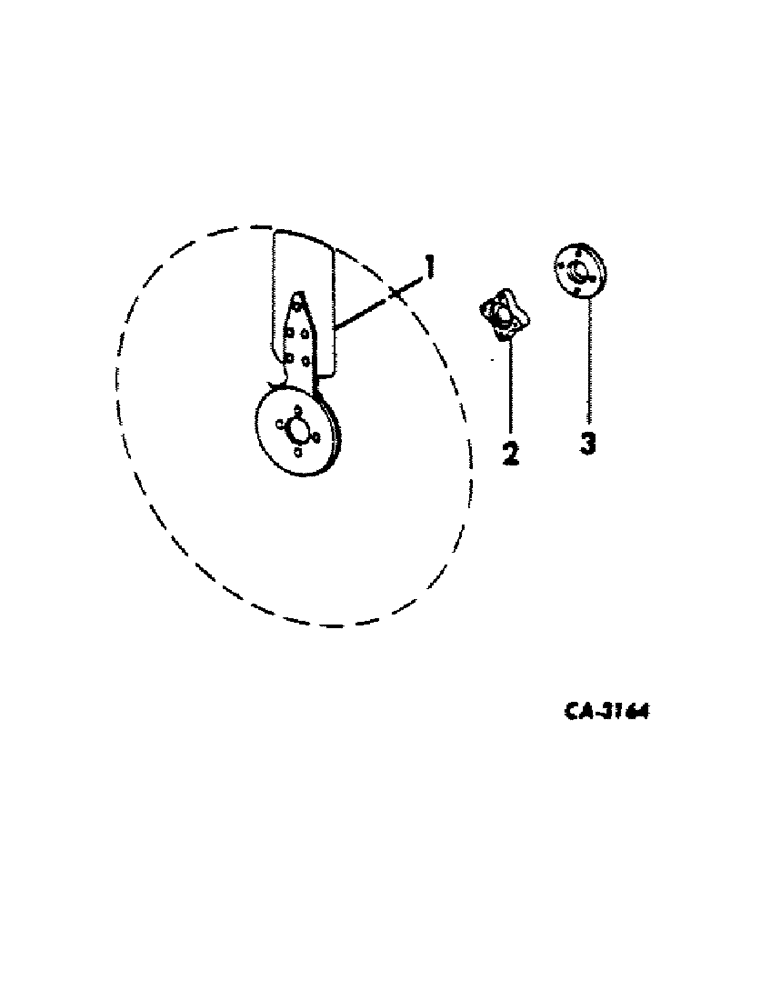

Запчасти Case IH C-135 (C-08) - FAN BLADES AND SPACERS, BELTS

1

377049R91

FAN

BLADE ASSY, fan, 404 and 2404 tractors

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, 1/4-28 x 5/8 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

1

380487R91

BLADE ASSY, fan, 404 and 2404 tractors w/power steering

1шт.

181315

BOLT,Hex, 1/4" - 28 x 1", Gr 5

4шт.

1

309077R91

FAN

BLADE ASSY, blower fan, T-5, TC-5, T-340, T-340A crawler tractors

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, 1/4-20 x 9/15 hex-hd cap, engines w/serial no. 34787 and below

1шт.

181310

BOLT

SCREW, 1/4-28 x 9/16 hex-hd cap, engines w/serial no. 34788 and above

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, 1/4-28 x 5/8 hex-hd cap, T-340 & T-340A crawler tractors

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

1

362682R91

BLADE ASSY, suction fan, T-5, TC-5, T-340, T-340A crawler tractors and 201 windrowers

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Engines w/S/N 34787 and below Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

181309

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, 1/4-28 x 1/2 hex-hd cap, engines w/serial no. 34788 and above

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, 1/4-28 x 9/16 hex-hd cap, T-340, T-340A crawler tractors

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

(Not used this application)

1шт.

3

318168R1

SPACER FAN, 404 and 2404 tractors w/power steering

1шт.

610330C1

BELT, fan, generator & water pump, T-340, T-340A crawler tractors

1шт.

403580R1

V-BELT,0.42" W x 43.30" L

Fan, generator and water pump, 404 & 2404 tractors 0.42" W x 43.30" L

1шт.

367697R1

V-BELT,0.38" W x 42.00" L

Fan, Generator & water pump, T-5, TC-5 crawler tractors and 201 windrowers 0.38" W x 42.00" L

1шт.
