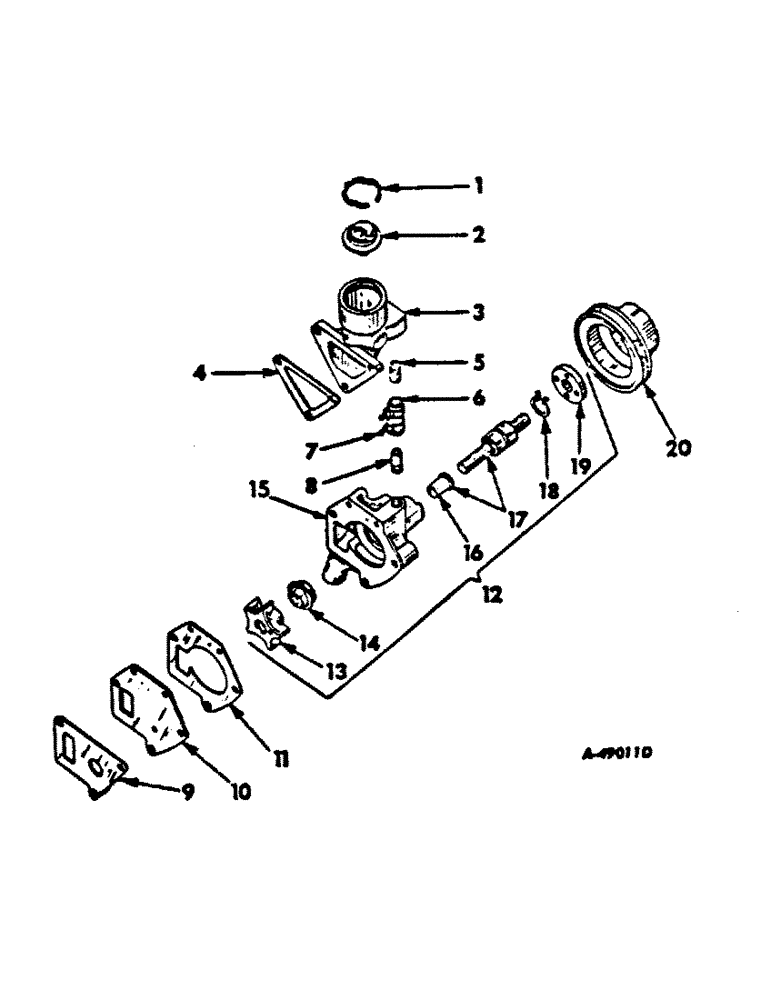

Запчасти Case IH C-135 (C-07) - THERMOSTAT AND WATER PUMP

1

257441R1

RING

thermostat retainer

1шт.

2

369322R91

THERMOSTAT

180 deg

1шт.

3

367679R1

ELBOW

water outlet

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

43294D

GASKET

water outlet elbow

1шт.

5

367680R1

FITTING

PIPE, upper by-pass, 404 tractors w/gas engine, T-5, TC-5, T-340, T-340A crawler tractors and 201 windrowers

1шт.

6

367681R1

HOSE

by-pass pipe, 404 tractors w/gas engine, T-5, TC-5, T-340, T-340A crawler tractors and 201 windrowers

1шт.

7

375061R91

CLAMP

by-pass pipe hose, 404 tractors w/gas engine, T-5, TC-5, T-340, T-340A crawler tractors and 201 windrowers

1шт.

8

368556R1

FITTING

PIPE, lower by-pass, 404 tractors w/gas engine, T-5 tractors and 201 windrowers, (1) connector 539968R1, (1) crankcase 379171R3 (NSS)

1шт.

9

375745R1

GASKET

water pump plate

1шт.

10

368559R1

SUPPORT

PLATE, water pump

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

367687R1

GASKET

water pump body

1шт.

12

367683R91

PUMP

ASSY, water, engines w/serial no., Serial Range: 11391-100500

1шт.

375793R92R

REMAN-WATER PUMP

C-135, Reman For New P/N 367683R91

1шт.

375793R92C

CORE-WATER PUMP

Return Number

1шт.

12

375793R92

PUMP

ASSY, water, engines w/serial no. 100501 and above

1шт.

375793R92R

REMAN-WATER PUMP

C-135

1шт.

375793R92C

CORE-WATER PUMP

Return Number

1шт.

Ref #12 (375793r92): per GPN comment; PER PRINT THIS DOES NOT INCLUDE THE HUB.

1шт.

179842

SPACER

3/8-16 x 1-3/4 hex-hd cap

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

186278

BOLT

SCREW, 3/8-16 x 2-5/8 hex-hd cap

1шт.

22263R1

PLUG

WASHER, 3/8 med lock

3шт.

444687

PLUG,Hex Soc, 1/8"-27

1/4-18 auto sq-hd pipe, 404 tractors w/lp gas engine

1шт.

13

367689R1

IMPELLER

water pump

1шт.

14

73296R93

SEAL

ASSY, water pump

1шт.

15

NSS

NOT SOLD SEPARAT

BODY, water pump, not serviced separately, order water pump assy

1шт.

16

71351R1

SLINGER

water pump

1шт.

17

ST644

SHAFT

AND BEARING W/SLINGER, water pump

1шт.

18

102069H

RING

front snap

1шт.

19

368501R2

HUB CAP

HUB, pulley, (1) connector 539968R1, (1) crankcase 388575R3 (NSS)

1шт.

19

392713R2

HUB, pulley, (5) plug 22263R1

1шт.

20

367688R1

PULLEY

water pump

1шт.
