Запчасти Case IH C-135 (C-06) - CONNECTING RODS, PISTONS AND CYLINDER SLEEVES

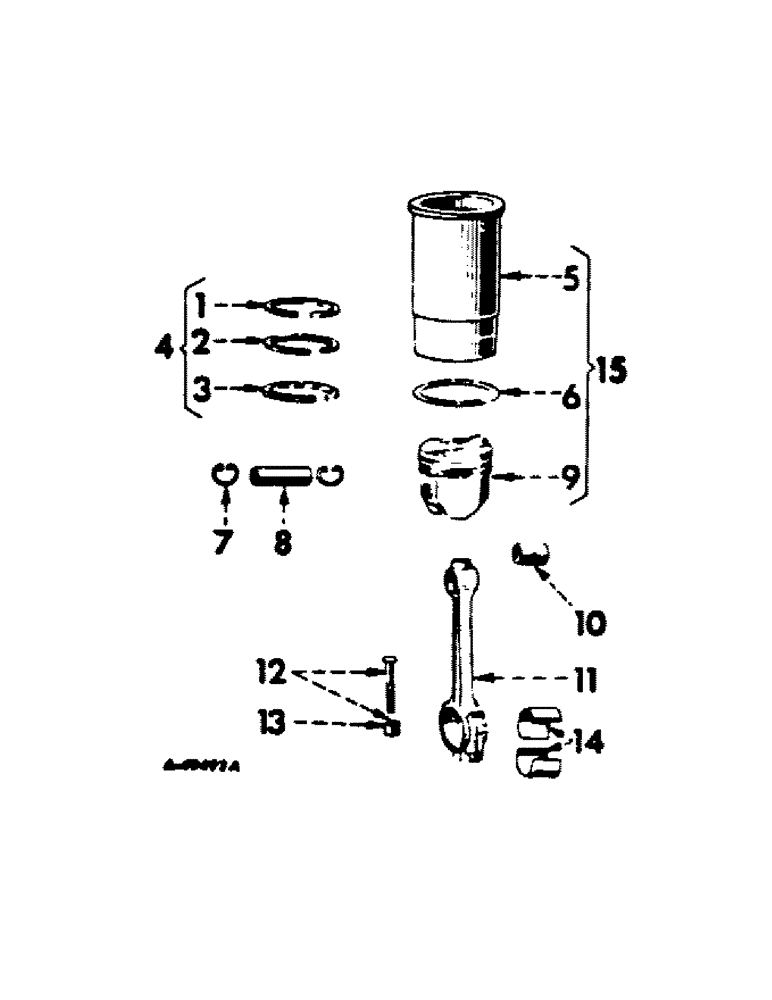

Схема запчастей Case IH C-135 - (C-06) - CONNECTING RODS, PISTONS AND CYLINDER SLEEVES
6
11
10
12
4
5
15
3
1
2
7
8
9
13
14

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

RING, compression piston, top or first groove, not serviced separately, order piston ring set

4шт.

2

NSS

NOT SOLD SEPARAT

RING, compression piston, second groove, not serviced separately, order piston ring set

4шт.

3

NSS

NOT SOLD SEPARAT

RING, oil regulating piston, third or bottom groove, not serviced separately, order piston ring set

4шт.

4

539358R1

SET

KIT, piston ring replacement, replaces 367859R93

1шт.

5

NSS

NOT SOLD SEPARAT

SLEEVE, cylinder, not serviced separately, order sleeve assy

4шт.

6

367799R1

RING

cylinder sleeve packing

4шт.

7

367798R1

RING, PISTON

SPRING, piston pin retainer

8шт.

8

367797R1

PIN,21.83mm OD x 69.93mm L

piston

4шт.

8

367862R1

PIN

piston, .005 U/S

4шт.

9

NSS

NOT SOLD SEPARAT

PISTON, not serviced separately, order sleeve assy

4шт.

10

36775R1

BUSHING, connecting rod

4шт.

11

396977R11

ROD

ASSY, connecting, engines w/serial no. 118673 and above

1шт.

11

367774R11

ROD

ASSY, connecting, engines w/serial no. 118672 and below

1шт.

11

396976R11

ROD

ASSY, connecting, 404 tractors & T-340A cralwer tractors

4шт.

12

363465R31

BOLT

ASSY, connecting rod, T-5, TC-5 cralwer tractors and 201 windrowers

8шт.

12

375732R1

BOLT,Hex, 3/8" - 24 x 2"

connecting rod, 404 tractors and T-340A crawler tractors

8шт.

13

363466R1

NUT

connecting rod bolt

8шт.

14

367777R11

BEARING

ASSY, connecting rod, T-5, TC-5 crawler tractors and 201 windrowers

4шт.

14

375723R11

BEARING LINER

BEARING ASSY, connecting rod, 404 tractors & T-340A crawler tractors

4шт.

14

375725R11

BEARING ASSY

BEARING ASSY, connecting rod, .002 U/S, 404 tractors and T-340A crawler tractors

4шт.

14

367783R11

BEARING ASSY, connecting rod, 2 halves, .002 U/S, T-5, TC-5 crawler tractors and windrowers

4шт.

14

376646R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .010 U/S, T-5, TC-5 crawler tractors and 201 windrowers

4шт.

14

376656R11

BEARING ASSY

BEARING ASSY, connecting rod, .010 U/S, 404 tractors and T-340A crawler tractors

1шт.

14

376648R11

BEARING ASSY, connecting rod, 2 halves, .020 U/S, T-5, TC-5 crawler tractors and 201 windrowers

4шт.

14

376658R11

BEARING ASSY

BEARING ASSY, connecting rod, .020 U/S, 404 tractors and T-340A crawler tractors

4шт.

14

367785R11

BEARING ASSY, connecting rod, 2 halves, .030 U/S, T-5, TC-5 crawler tractors and 201 windrowers

4шт.

14

375724R11

BEARING ASSY

BEARING ASSY, connecting rod, .030 U/S

4шт.

15

374476R95

PISTON ASSY.

SLEEVE SET W/PISTONS, crankcase, T-5, TC-5 crawler tractors and 201 windrowers

1шт.

15

375797R94

PISTON ASSY.

SLEEVE SET W/PISTONS, 404 tractors and T-340A crawler tractors

1шт.

15

377043R94

SLEEVE ASSY

SLEEVE SET W/HIGH ALTITUDE PISTONS, 404 tractors and T-340A crawler tractors

1шт.

15

374477R95

SLEEVE ASSY

SLEEVE W/PISTON, cylinder, T-5, TC-5 crawler tractors and 201 windrowers

4шт.

15

375798R94

SET

SLEEVE W/PISTON, cyl, 404 tractors and T-340A crawler tractors

4шт.

15

377046R94

SLEEVE ASSY

SLEEVE W/HIGH ALTITUDE PISTON, cyl, 404 tractors and T-340A crawler tractors

4шт.

Выбрано товаров: 33
