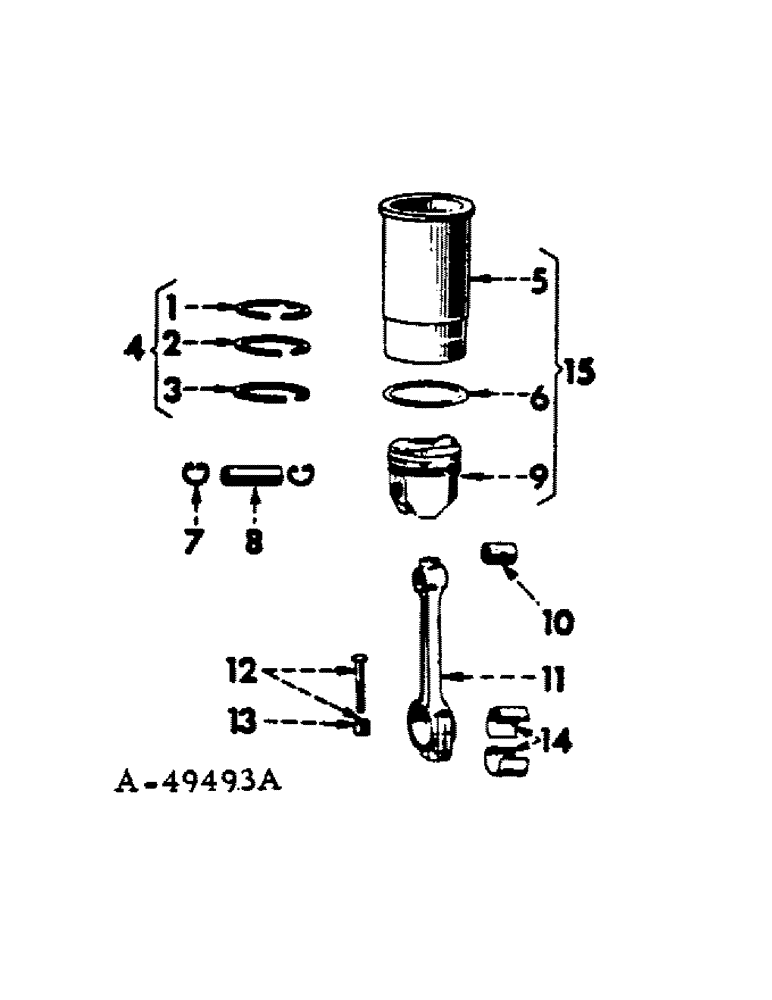

Запчасти Case IH C-123 (B-10) - CONNECTING RODS, PISTONS & CYLINDER SLEEVES, 57 TWINE OR WIRE BALERS & T-4 CRAWLER TRACTORS

1

NSS

NOT SOLD SEPARAT

RING, compression piston, top or first groove, not serviced separately, order piston ring set

4шт.

2

NSS

NOT SOLD SEPARAT

RING, compression piston, second groove, not serviced separately, order piston ring set

4шт.

3

NSS

NOT SOLD SEPARAT

RING, oil piston, third or bottom groove, not serviced separately, order piston ring set

4шт.

4

539383R1

PISTON RING SET

RING SET, piston, replaces 364788R93, consists of 2 compression rings & 1 oil regulating ring

4шт.

5

NSS

NOT SOLD SEPARAT

SLEEVE, cylinder, not serviced separately, order sleeve assy

4шт.

6

24434D

RING,6.04mm Thk x 134.94mm ID

RING, cylinder sleeve packing

4шт.

7

359321R1

RING, SNAP

SPRING, piston pin retainer

8шт.

8

24414DC

PIN

piston, std

4шт.

8

53159D

PIN

piston, .005 oversize

4шт.

9

NSS

NOT SOLD SEPARAT

PISTON, not serviced separately, order sleeve assy

4шт.

10

64508D

BUSHING,23.82mm ID x 25.22mm OD x 30.96mm L

BUSHING, piston pin

4шт.

11

30926DFXA

ROD

W/TWO BOLTS & BUSHING, connecting

4шт.

11

30926DFYA

ROD

30926DFXA W/BEARING, connecting

4шт.

12

363465R31

BOLT

ASSY, connecting rod

8шт.

13

363466R1

NUT

connecting rod bolt

8шт.

14

356304R11

BEARING

ASSY, connecting rod, 2 halves, std

4шт.

14

356306R11

CRANKSHAFT BEARING

BEARING ASSY, connecting rod, 2 halves, .002 U/S

4шт.

14

376636R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .010 U/S

4шт.

14

376638R11

BEARING LINER

BEARING ASSY, connecting rod, 2 halves, .020 U/S

4шт.

14

356305R11

CRANKSHAFT BEARING

ASSY, connecting rod, 2 halves, .030 U/S

4шт.

15

374338R93

SLEEVE ASSY

SLEEVE W/PISTON AND RINGS ASSY, cylinder, fire crater increased power, gasoline, std altitude, consists of (1) pin 24414DB, (1) piston (NSS), (1) ring 24434D, (1) ring 366291R1, (1) ring 366292R1, (1) ring 402261R1, (1) sleeve (NSS), (2) spring 359321R1

4шт.

15

374493R93

SLEEVE ASSY

SLEEVE W/PISTON AND RINGS ASSY, cylinder, fire crater increased power, gasoline, high altitude, consists of (1) pin 24414DB, (1) piston (NSS), (1) ring 24434D, (1) ring 366291R1, (1) ring 366292R1, (1) ring 402261R1, (1) sleeve (NSS), (2) spring 359321R1

1шт.
