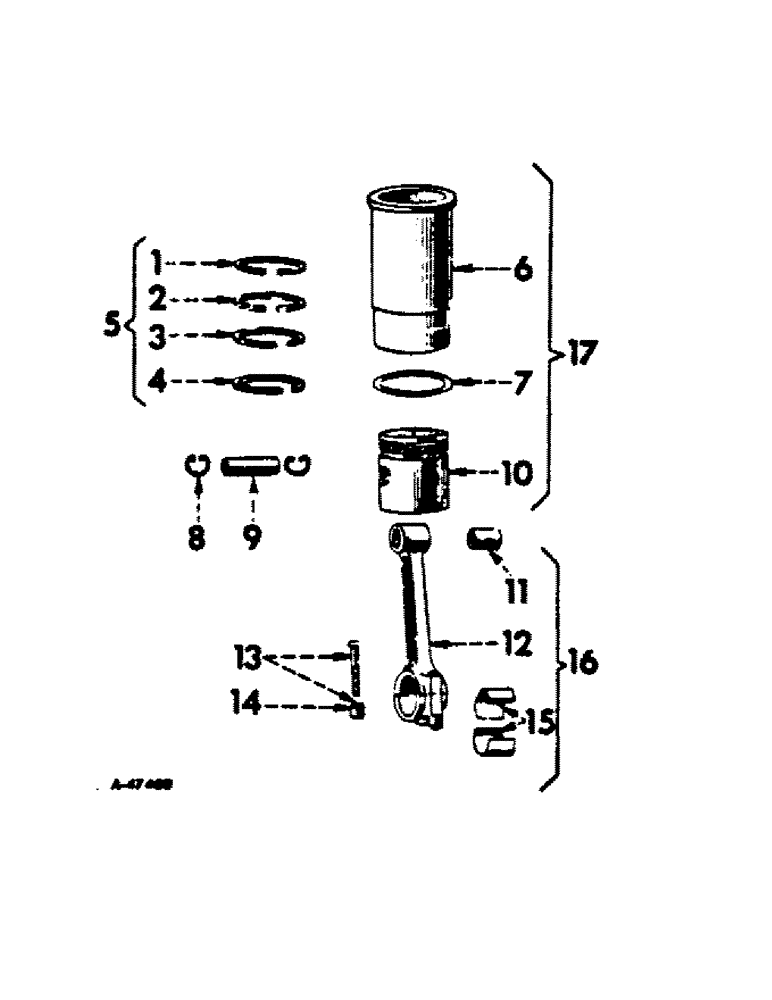

Запчасти Case IH C-123 (B-08) - CONNECTING RODS, PISTONS & CYLINDER SLEEVES, EXCEPT T-4 CRAWLERS & 57 BALERS

1

NSS

NOT SOLD SEPARAT

RING, compression piston, top or first groove, not serviced separately, order piston ring set

1шт.

2

NSS

NOT SOLD SEPARAT

RING, compression piston, second groove, not serviced separately, order piston ring set

1шт.

3

NSS

NOT SOLD SEPARAT

RING, compression piston, third groove, not serviced separately, order piston ring set

1шт.

4

NSS

NOT SOLD SEPARAT

RING, oil piston, fourth or bottom groove, not serviced separately, order piston ring set

1шт.

5

539383R1

PISTON RING SET

RING SET, piston, perfect circle, consists of 2 compression rings and one oil regulating ring, 3-1/8 dia pistons, gasoline, distillate for use w/130, 130HC, 140, and 140HC tractors, replaces 364788R93

4шт.

5

357679R93

RING

SET, piston, perfect circle 2-in-1 chrome, distillate, replaces 354893R92 and 354894R92, consists of 12 compression rings and 4 oil regulating rings, 3-1/8 dia pistons, 100 and 100HC tractors

1шт.

5

357076R93

RING SET, piston, perfect circle, kerosine, replaces 357080R91, consists of 12 compression rings and 4 oil regulating rings

1шт.

5

370422R93

PISTON RING SET

RING SET, piston, perfect circle 2-in-1 chrome, 3-3/16 dia pistons, consists of 8 compression rings and 4 oil regulating rings, gasoline or distillate, 100 and 100HC tractors

1шт.

6

NSS

NOT SOLD SEPARAT

SLEEVE, cylinder, not serviced separately, order sleeve assy

4шт.

7

24434D

RING,6.04mm Thk x 134.94mm ID

RING, cylinder sleeve packing, not used w/100 and 100HC tractors

4шт.

7

354881R1

SEAL ASSY.

RING, cylinder sleeve packing, 100 and 100HC tractors

4шт.

8

359321R1

RING, SNAP

SPRING, piston pin retainer

8шт.

9

24414DC

PIN

piston, std

4шт.

9

53159D

PIN

piston, .005 oversize

4шт.

10

NSS

NOT SOLD SEPARAT

PISTON, not service separately, order sleeve assy

4шт.

11

64508D

BUSHING,23.82mm ID x 25.22mm OD x 30.96mm L

BUSHING, piston pin

4шт.

12

30926DFXA

ROD

W/TWO BOLTS & BUSHING, connecting

4шт.

13

363465R31

BOLT

ASSY, connecting rod

8шт.

14

363466R1

NUT

connecting rod bolt

8шт.

14

24413D

NUT, connecting rod bolt, w/out identifying notches

8шт.

15

356304R11

BEARING

ASSY, connecting rod, 2 halves, std

4шт.

15

356306R11

CRANKSHAFT BEARING

BEARING ASSY, connecting rod, 2 halves, .002 U/S

4шт.

15

376636R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .010 U/S

4шт.

15

376638R11

BEARING LINER

BEARING ASSY, connecting rod, 2 halves, .020 U/S

4шт.

15

356305R11

CRANKSHAFT BEARING

ASSY, connecting rod, 2 halves, .030 U/S

4шт.

16

30926DFYA

ROD

30926dfxa w/bearing, connecting

4шт.

17

374338R93

SLEEVE ASSY

4шт.

SLEEVE W/PISTON AND RINGS ASSY, cylinder, fire crater increased power, gasoline, standard altitude, 130 and 140 series tractors, consists of (1) pin 24414DB, (1) piston (NSS), (1) ring 24434D, (1) ring 3662191R1, (1) ring 366292R1, (1) ring 402261R1, (1) sleeve (NSS), (2) spring 359321R1

1шт.

17

NLS

NO LONGER SERVICED

SLEEVE W/PISTON AND RINGS ASSY, cylinder, distillate, high altitude, discontinued for service

4шт.

17

366289R91

SLEEVE ASSY

4шт.

SLEEVE W/PISTON AND RINGS ASSY, cylinder, gasoline, standard altitude, 130 and 140 series tractors, consists of (1) pin 24414DB, (1) piston (NSS), (1) ring 24434D, (1) ring 366291R1, (1) ring 366292R1, (1) ring 402261R1, (1) sleeve (NSS), (2) spring 359321R1

1шт.

17

370159R91

SLEEVE ASSY

4шт.

SLEEVE W/PISTON AND RINGS ASSY, cylinder, 3-3/16 dia flat top pistons, gasoline, standard altitude, 100 and 100HC tractors, consists of (1) pin 24414DB, (1) piston (NSS), (1) ring 354881R1, (1) ring 370154R1, (1) ring 370155R1, (1) ring 402262R1, (1) sleeve (NSS), (2) spring 359321R1

1шт.

17

374293R93

SLEEVE ASSY

4шт.

SLEEVE W/PISTON AND RINGS ASSY, cylinder, fire crater increased power, 3-3/16 dia pistons, gasoline, standard altitude, 100 and 100HC tractors, consists of (1) pin 24414DB, (1) piston (NSS), (1) ring 354881R1, (1) ring 370154R1, (1) ring 370155R1, (1) ring 402262R1, (1) sleeve (NSS), (2) spring 359321R1

1шт.

17

374450R93

SLEEVE ASSY

4шт.

SLEEVE W/PISTON AND RINGS ASSY, cylinder, fire crater increased power, 3-3/16 dia pistons, gasoline, standard altitude, 100 and 100HC tractors, consists of (1) pin 24414DB, (1) piston (NSS), (1) ring 354881R1, (1) ring 370154R1, (1) ring 370155R1, (1) ring 402262R1, (1) sleeve (NSS), (2) spring 359321R1

1шт.

17

NLS

NO LONGER SERVICED

SLEEVE W/PISTON AND RINGS ASSY, cylinder, 3-3/16 dia pistons, distillate, standard altitude, 100 and 100HC tractors, discontinued for service

4шт.

17

374493R93

SLEEVE ASSY

4шт.

SLEEVE W/PISTON AND RINGS ASSY, cylinder, fire crater increased power, gasoline, standard altitude, 130 and 140 series tractors, consists of (1) pin 24414DB, (1) piston (NSS), (1) ring 24434D, (1) ring 3662191R1, (1) ring 366292R1, (1) ring 402261R1, (1) sleeve (NSS), (2) spring 359321R1

1шт.

17

366837R91

4шт.

SLEEVE W/PISTON AND RINGS ASSY, cylinder, distillate, standard altitude, 130, 130HC, 140, and 140HC tractors, consists of (1) pin 24414DB, (1) piston (NSS), (1) ring 24434D, (1) ring 366291R1, (1) ring 366292R1, (1) ring 402261R1, (1) sleeve (NSS), (2) spring 359321R1

1шт.

17

356903R93

SLEEVE CYLINDER

SLEEVE W/PISTON AND RINGS ASSY, cylinder, kerosine, standard altitude, 100 and 100HC tractors, consists of (1) pin 24414DB, (1) piston (NSS), (1) ring 354881R1, (1) ring 366642R1, (2) ring 366292R1, (1) ring 402260R1, (1) sleeve (NSS), (2) spring 359321R1

4шт.

17

NLS

NO LONGER SERVICED

SLEEVE W/PISTON AND RINGS ASSY, cylinder, kerosine, standard altitude, 130, 140, and 140HC tractors, discontinued for service

4шт.

17

366657R91

4шт.

SLEEVE W/PISTON AND RINGS ASSY, cylinder, kerosine, high altitude, 130, 130HC, 140, and 140HC tractors, consists of (1) pin 24414Db, (1) piston (NSS), (1) ring 24434D, (2) ring 366292R1, (1) ring 402260R1, (1) ring 366642R1, (1) sleeve (NSS) (2) spring 359321R1

1шт.
